Audio Amplifier Connector End View C2

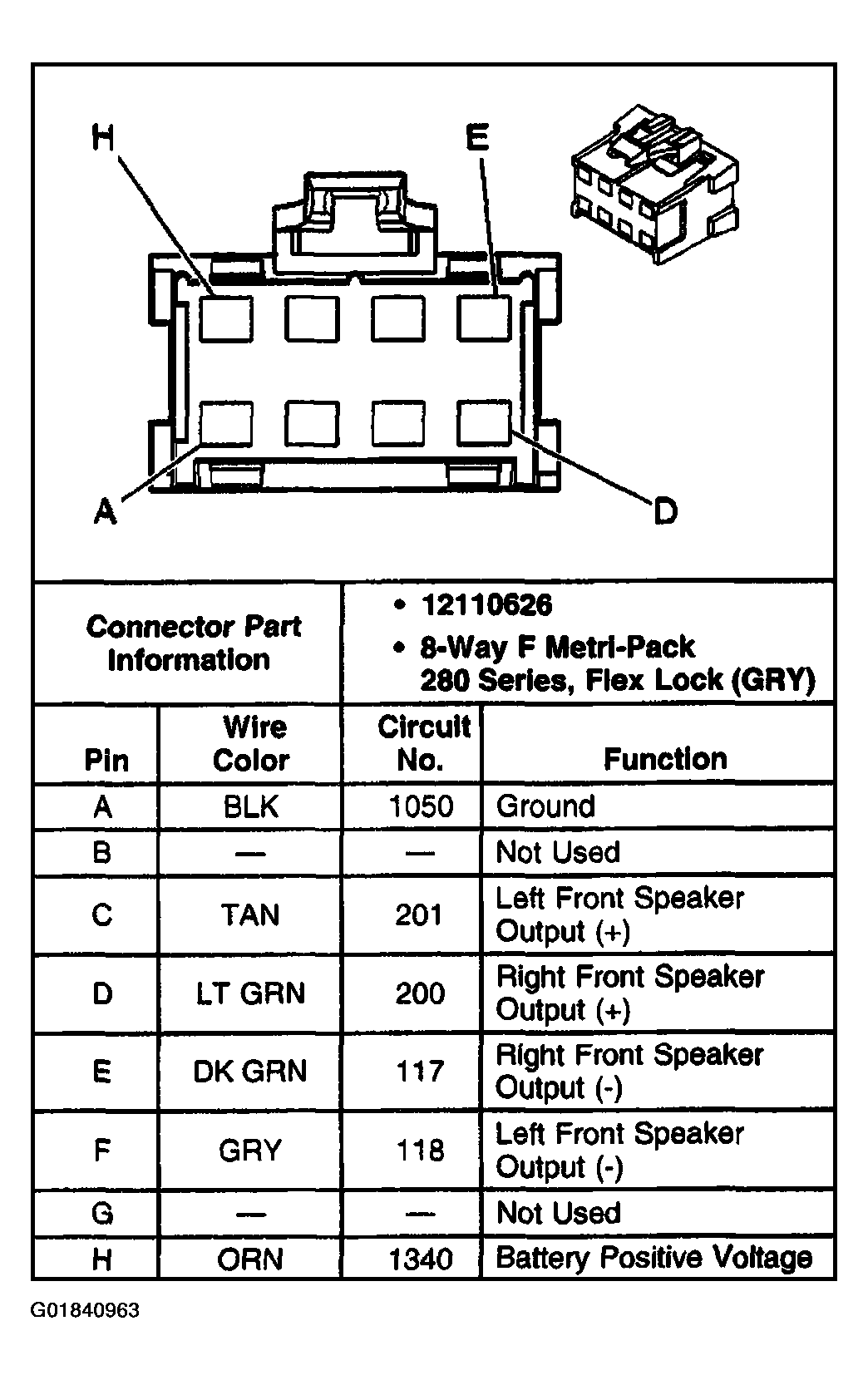

Fig 1: Audio Amplifier Connector End View C2
Courtesy of GENERAL MOTORS CORP.
