Disassembled Views

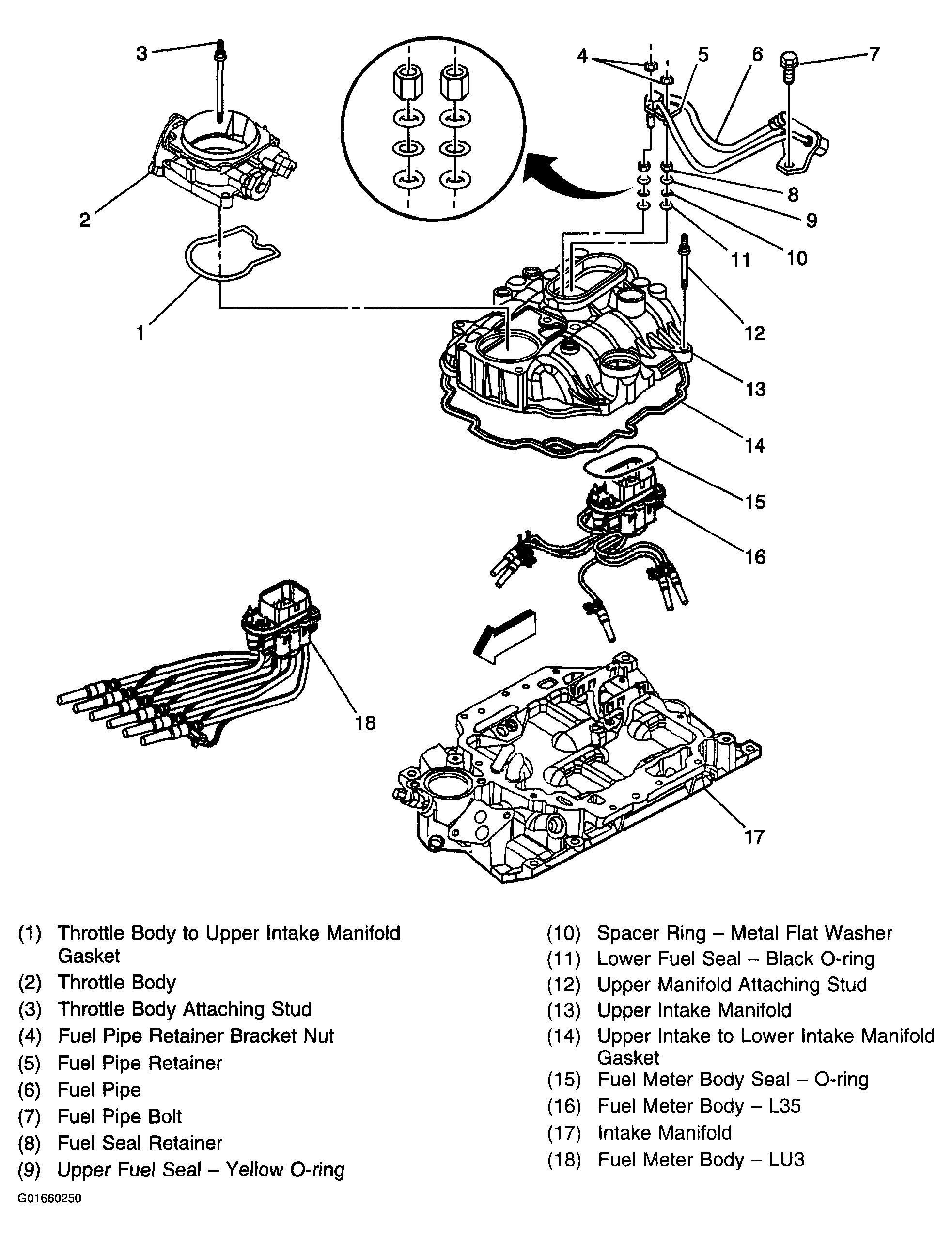

Fig 1: Upper and Lower Intake Manifold View

Courtesy of GENERAL MOTORS CORP.

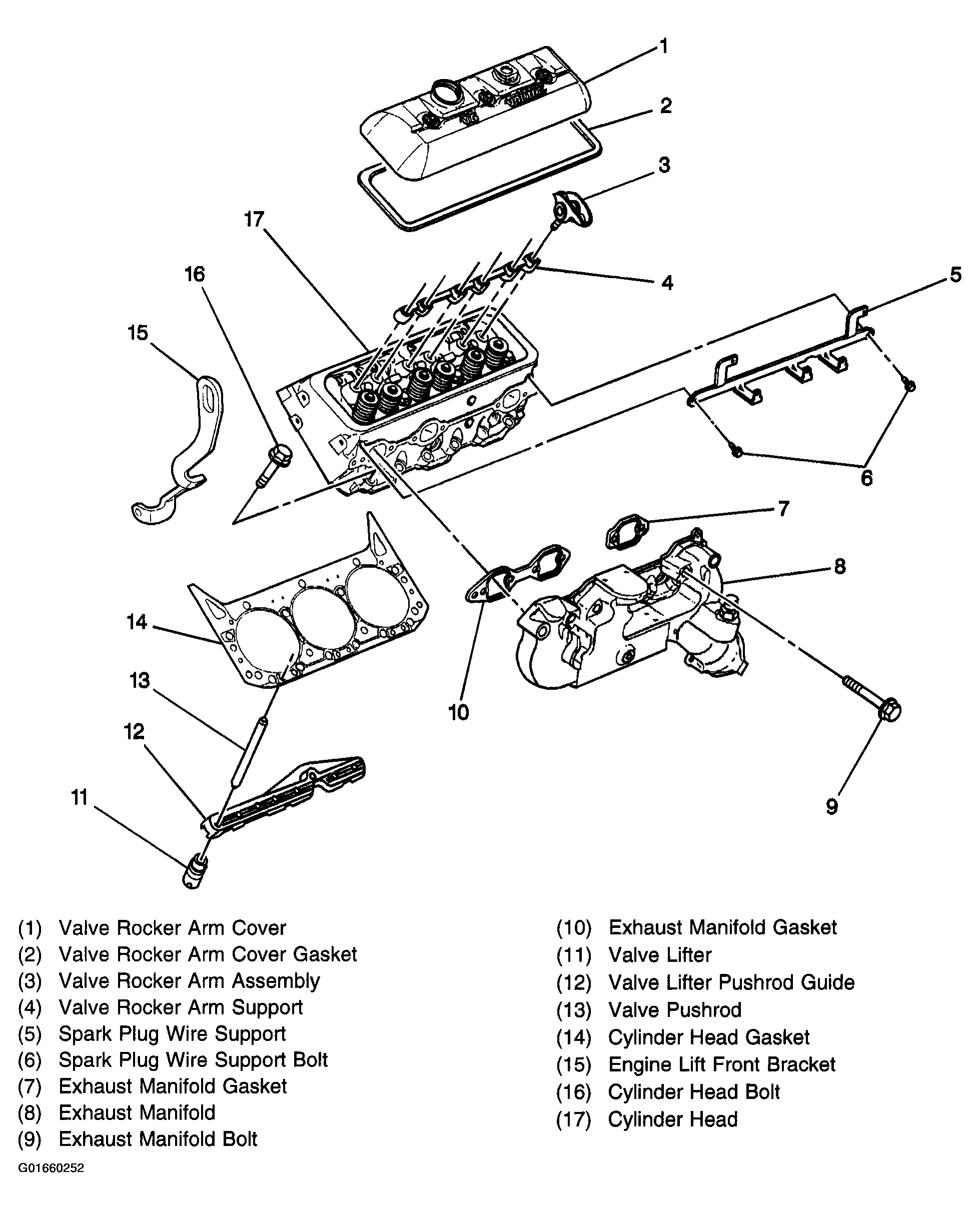

Fig 2: Upper Engine View 1

Courtesy of GENERAL MOTORS CORP.

Fig 3: Upper Engine View 2

Courtesy of GENERAL MOTORS CORP.

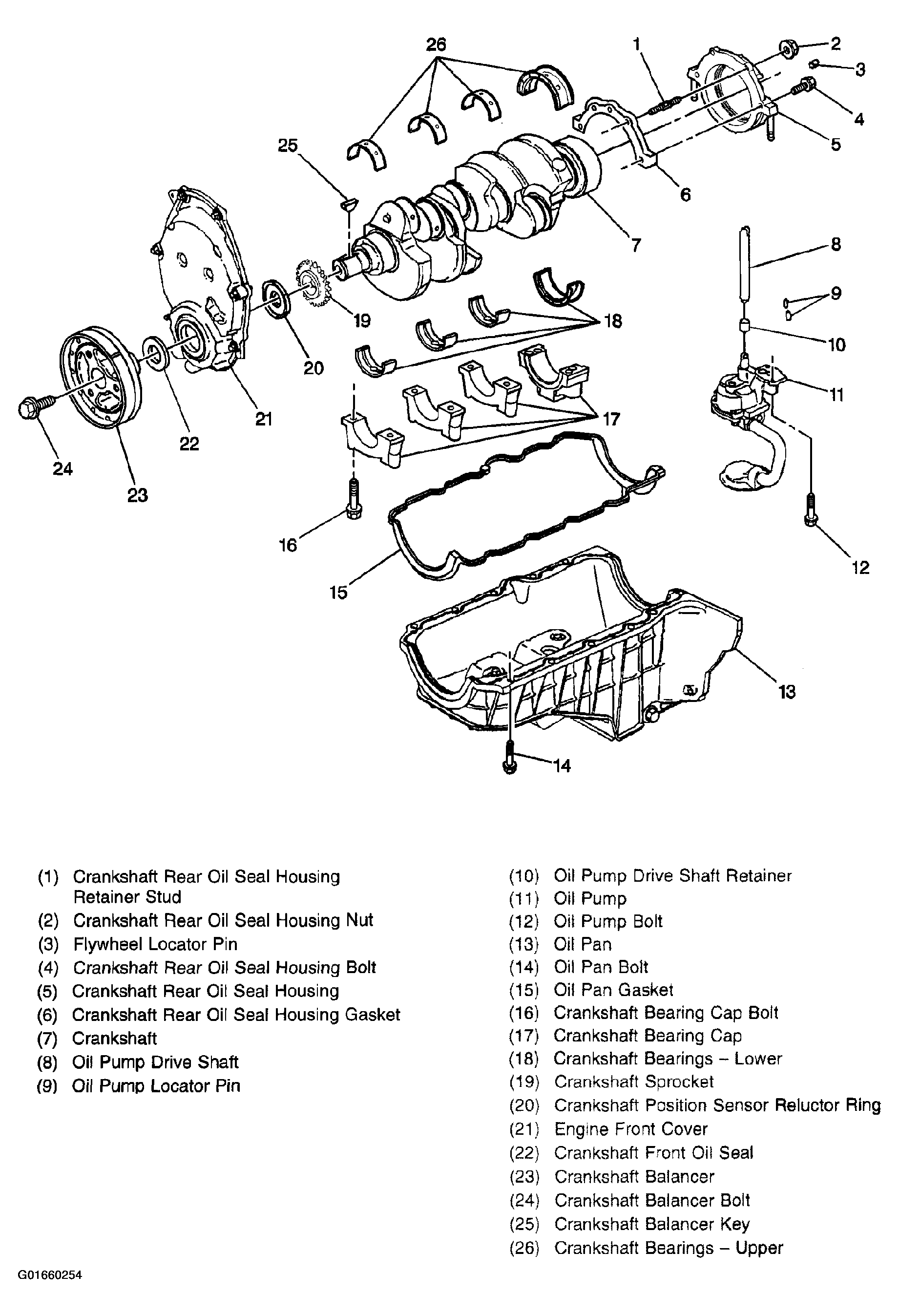

Fig 4: Lower Engine View 1

Courtesy of GENERAL MOTORS CORP.

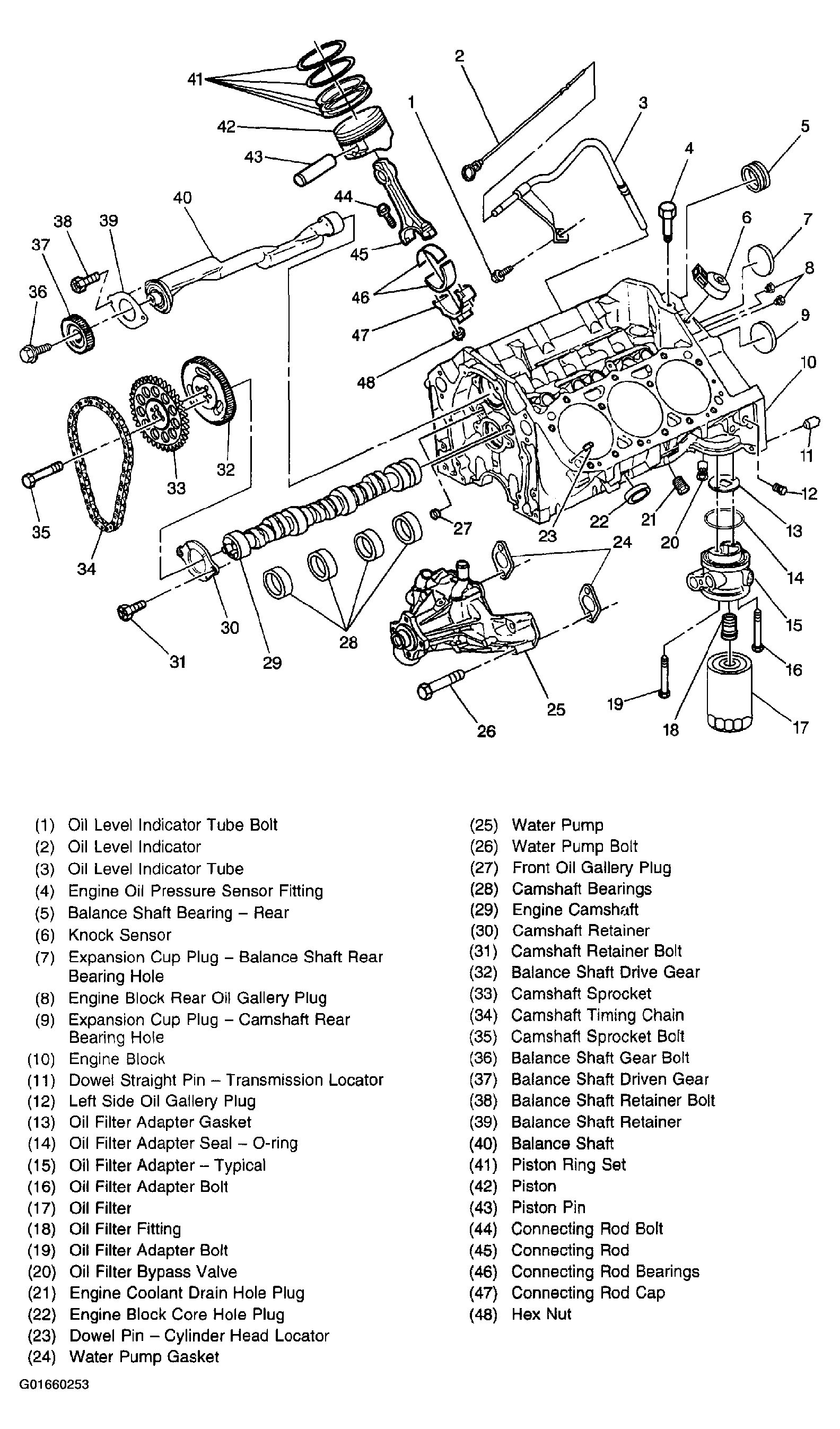

Fig 5: Lower Engine View 2

Courtesy of GENERAL MOTORS CORP.
