Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION .

Disconnect the negative battery cable.
Disconnect the stoplamp switch electrical connector.
Remove the locknut (2) and the stoplamp switch (1) from the brake pedal bracket (3).

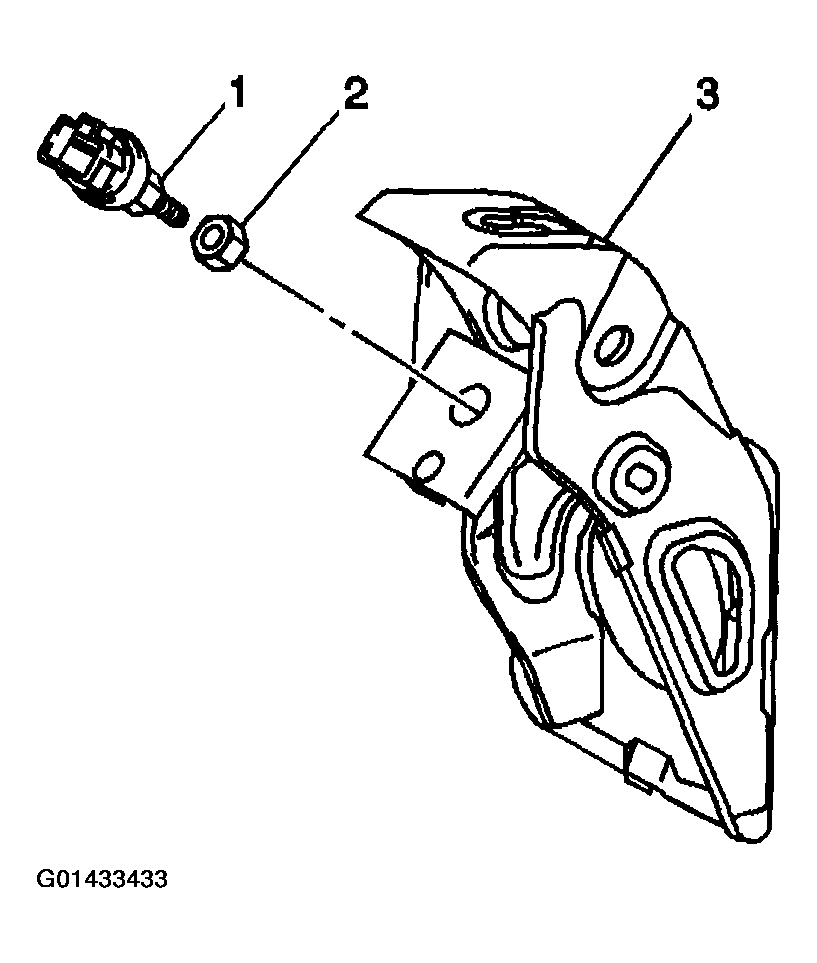

Fig 1: Removing Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.
