Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the security indicator lamp switch electrical connector.
  2. Install the security indicator lamp switch (3) to the instrument panel (1), by pushing in until tabs lock.

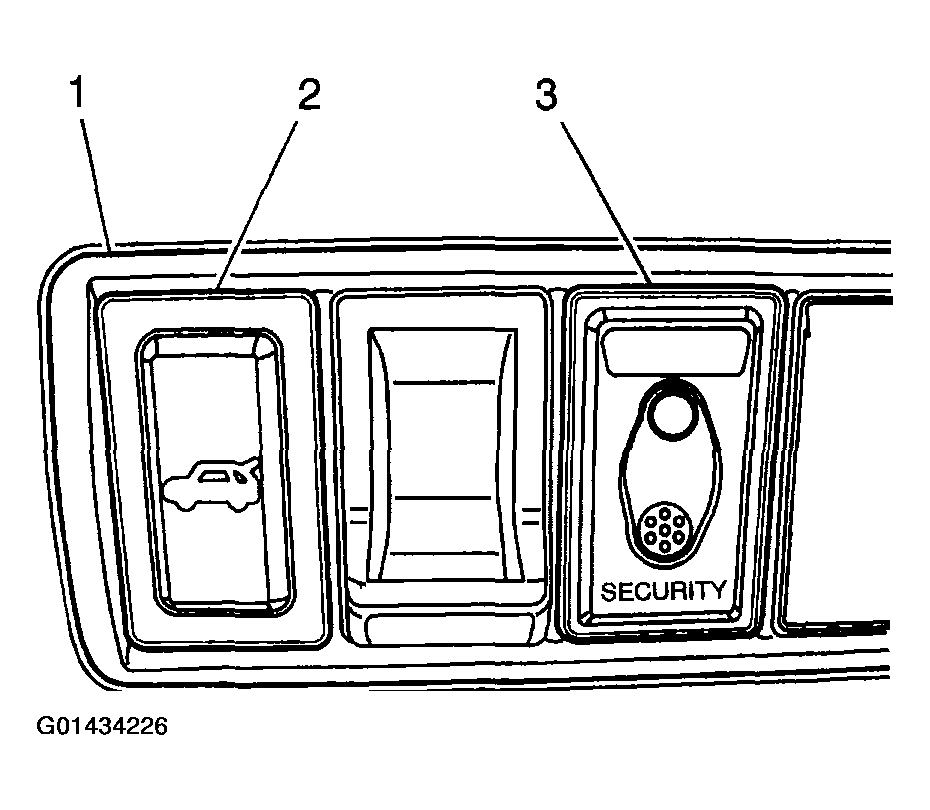

    Fig 1: Installing Vehicle Security System LED Indicator
    G01434226Courtesy of GENERAL MOTORS CORP.
