Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cable adjusting locknuts (1).
  2. Remove the cruise control servo cable (2) from the bracket.
  3. Remove the cruise control cable (2) from the throttle lever (3).

    Opening the throttle lever by hand will aide in the removal of the cruise cable.

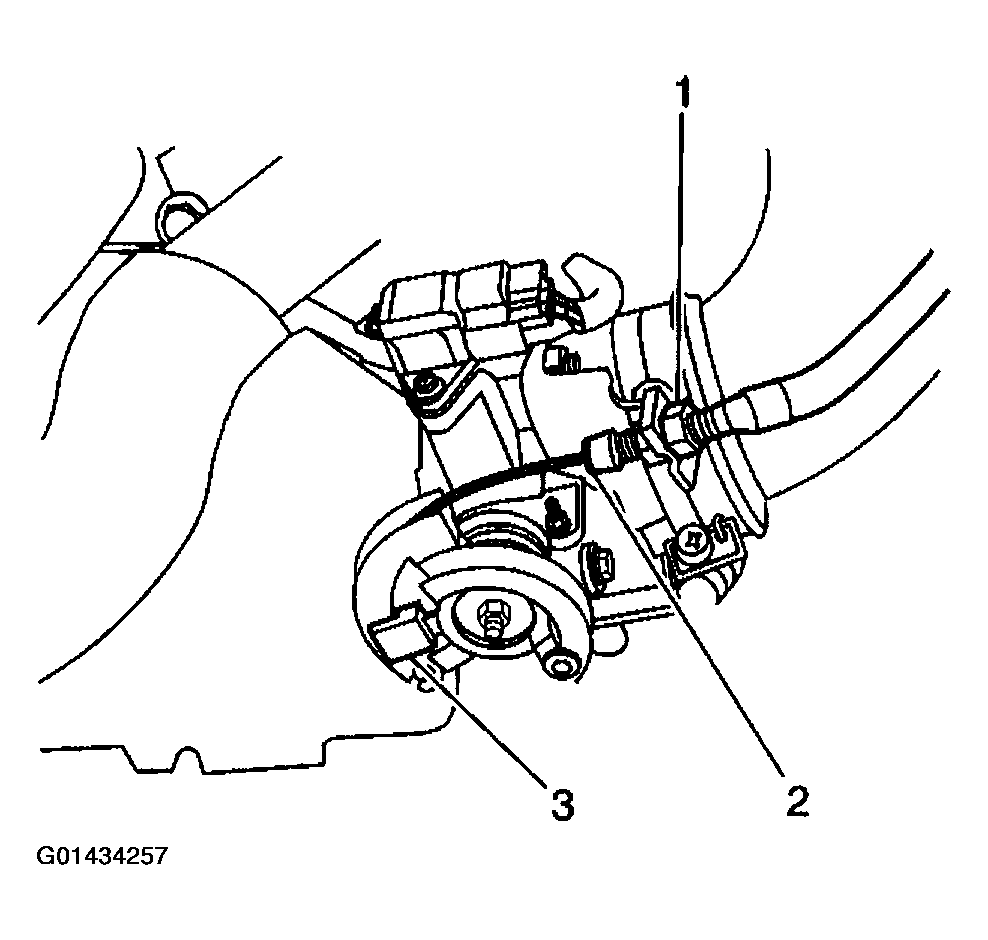

    Fig 1: Removing Cruise Control Cable From Throttle Lever
    G01434257Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control servo cover (1) by applying slight outward pressure to both sides at the base of the cover (2).

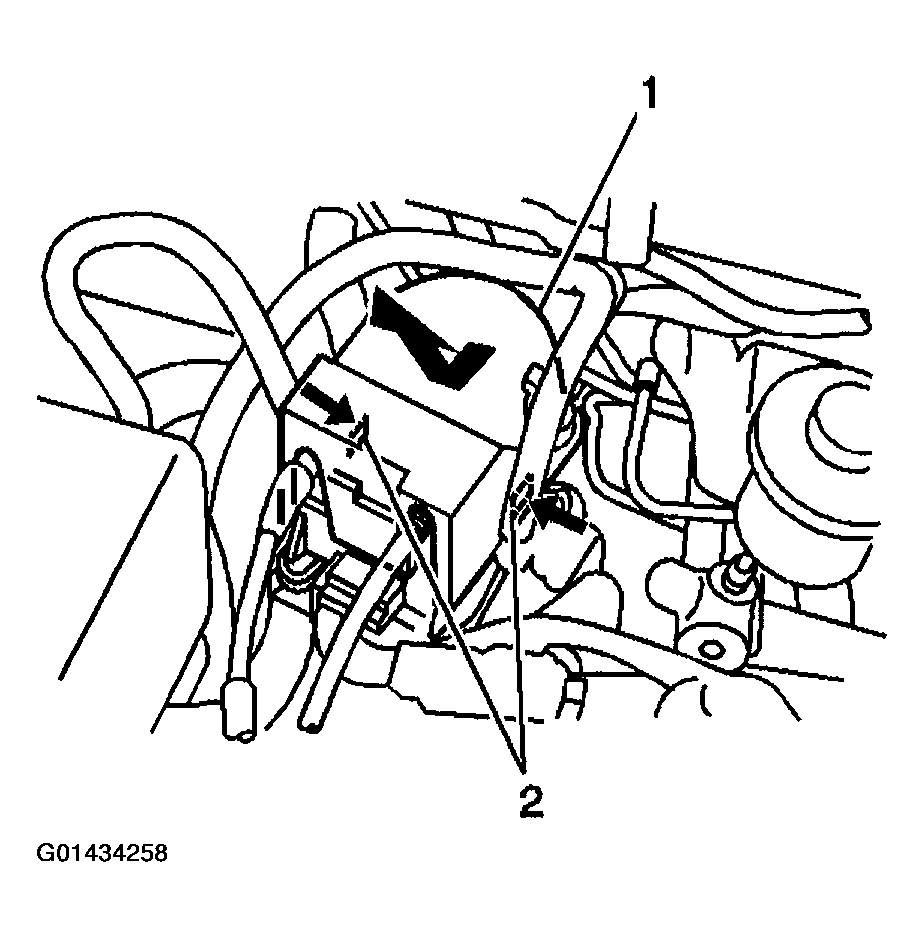

    Fig 2: Removing Cruise Control Servo Cover
    G01434258Courtesy of GENERAL MOTORS CORP.
  5. Remove the cruise control cable bracket screw (5).
  6. Remove the cruise control cable (4) from the bracket.
  7. Remove the cruise control cable (4) from the servo lever (1).
  8. Remove the cruise control servo cable from the vehicle by removing the cable from the cable guide clips.

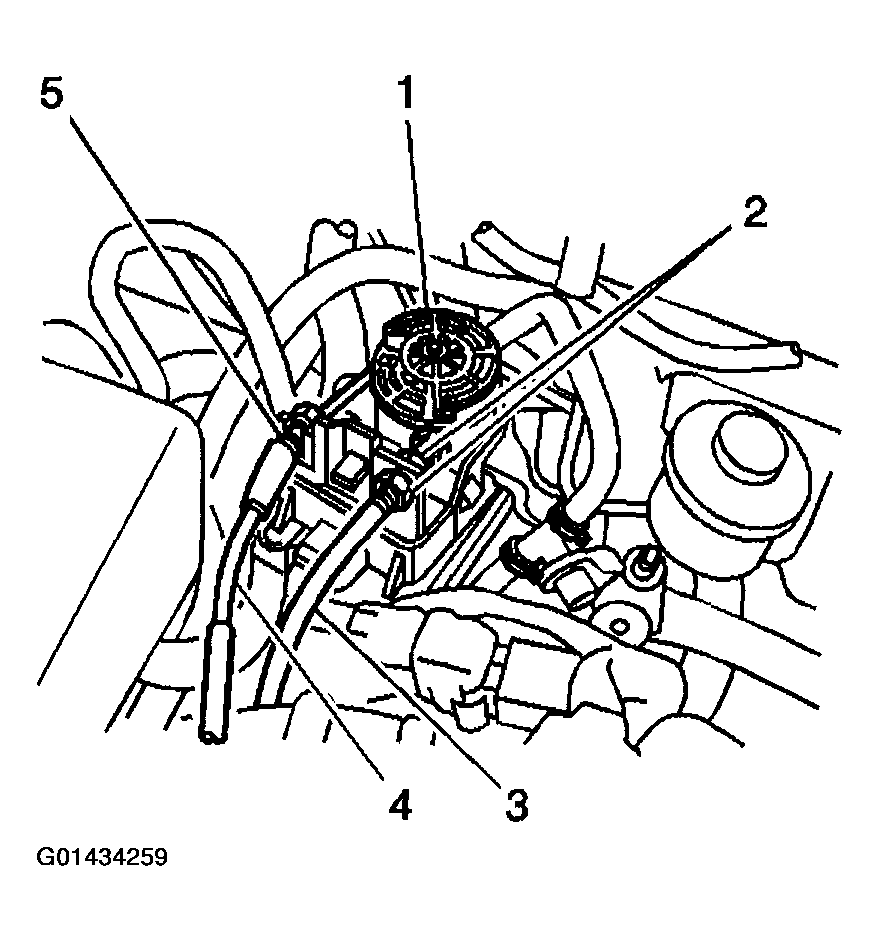

    Fig 3: Removing Cruise Control Servo Cable From Vehicle
    G01434259Courtesy of GENERAL MOTORS CORP.
