Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the 2 tabs (2) on the cruise control cover (1)
  2. Remove the cruise control servo cover (1).

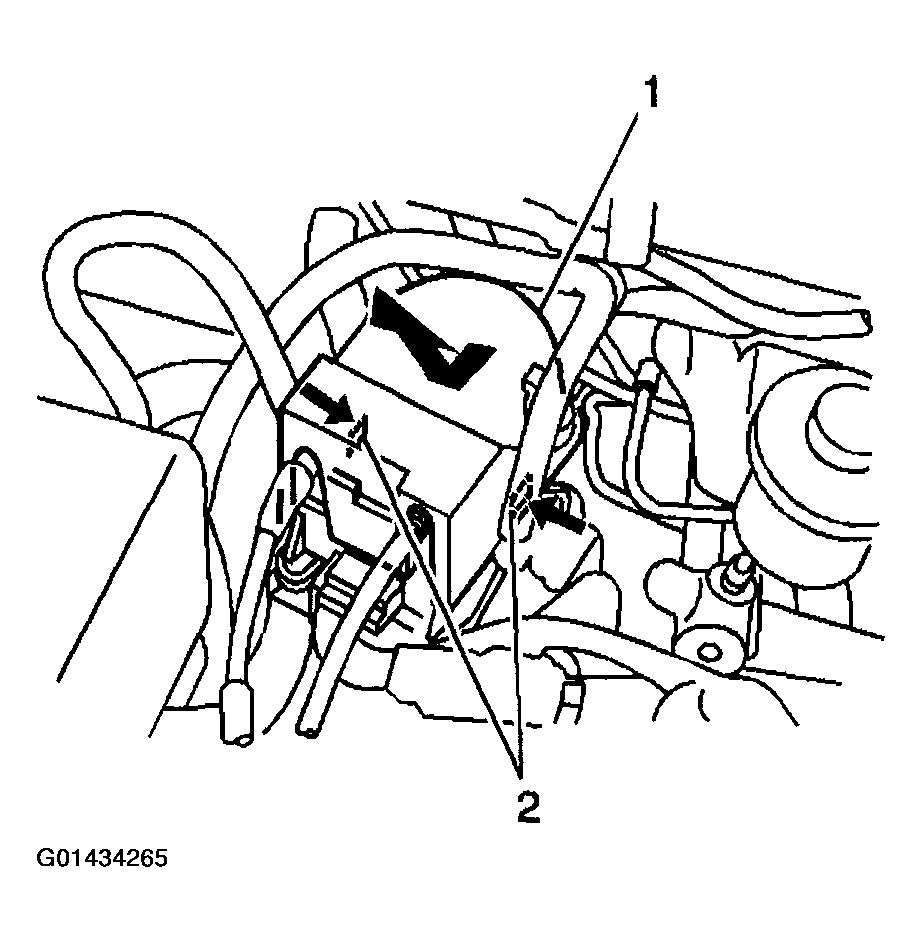

    Fig 1: Removing Cruise Control Servo Cover
    G01434265Courtesy of GENERAL MOTORS CORP.
  3. Loosen the accelerator control cable locknuts (2).
  4. Remove the following components from the cruise control servo:
    • The cruise control servo cable bracket screw (5)
    • The cruise control servo cable (4)
    • The accelerator control cable (3)

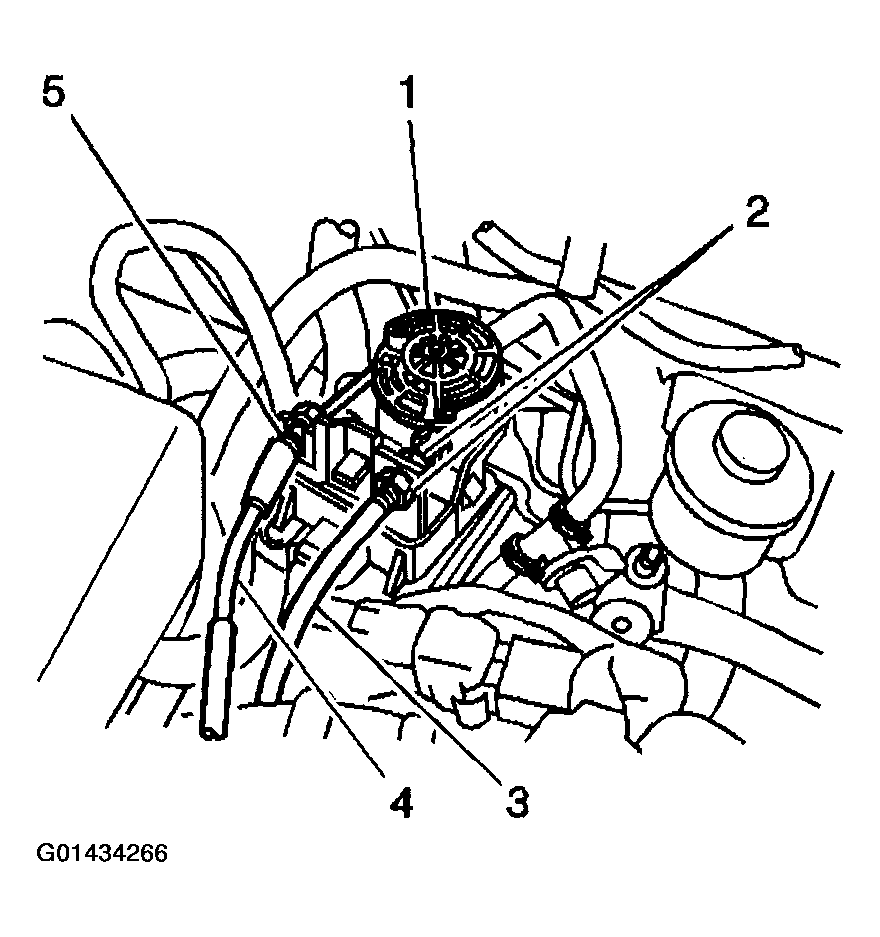

      Fig 2: Removing Components From Cruise Control Servo
      G01434266Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the cruise control servo electrical connector (3).
  6. Remove the following components from the vehicle:
    • The 2 cruise control servo mounting bolts (2)
    • The cruise control servo (1) with the bracket attached

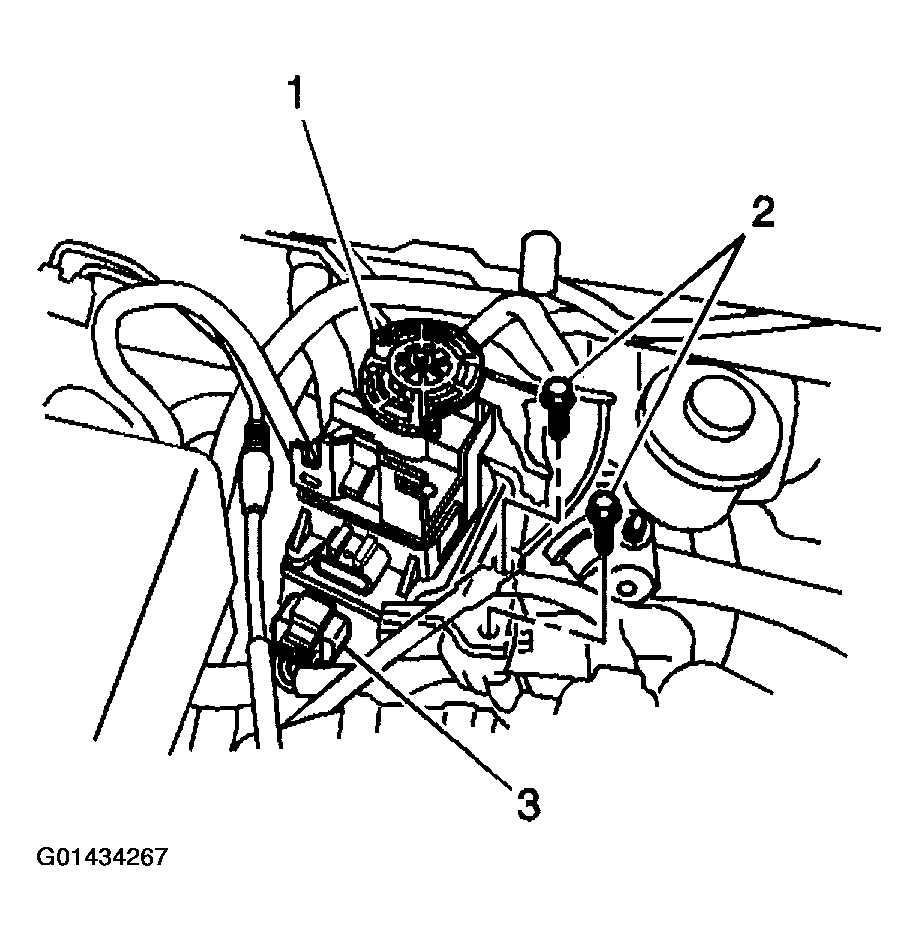

      Fig 3: Removing Cruise Control Servo With Bracket
      G01434267Courtesy of GENERAL MOTORS CORP.
