Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control release switch (1) to the clutch pedal bracket (2) by screwing it in a clockwise direction. Secure the release switch with the locknut (1).
  2. Connect the cruise control release switch electrical connector (4).

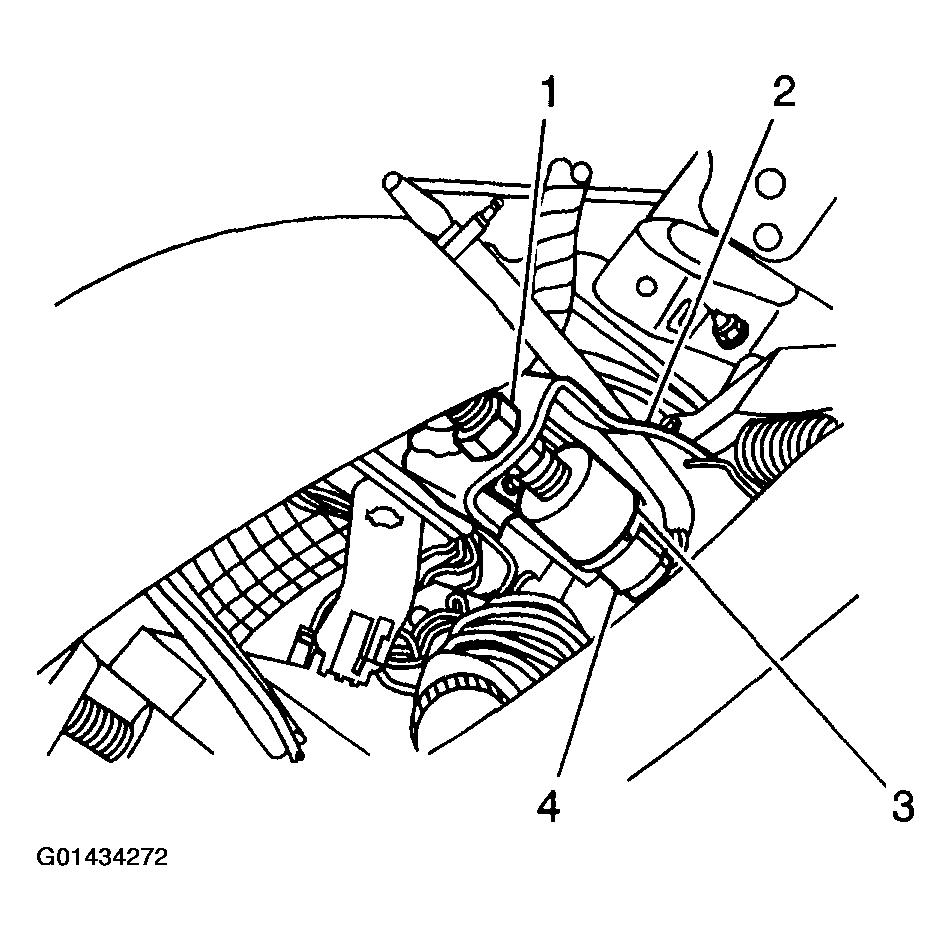

    Fig 1: Installing Cruise Control Release Switch To Clutch Pedal Bracket
    G01434272Courtesy of GENERAL MOTORS CORP.
