Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tool storage access panel (8), by turning the knob (9).
  2. Remove the child tether anchors (6). Refer to CHILD RESTRAINT TETHER ANCHOR REPLACEMENT in Seat Belts.
  3. Remove the rear accessory panel (1). Refer to ACCESSORY PANEL REPLACEMENT - REAR  .
  4. Remove the rear storage compartment (3). Refer to STORAGE COMPARTMENT REPLACEMENT - REAR   .
  5. Remove the tool storage compartment (4) from the vehicle.

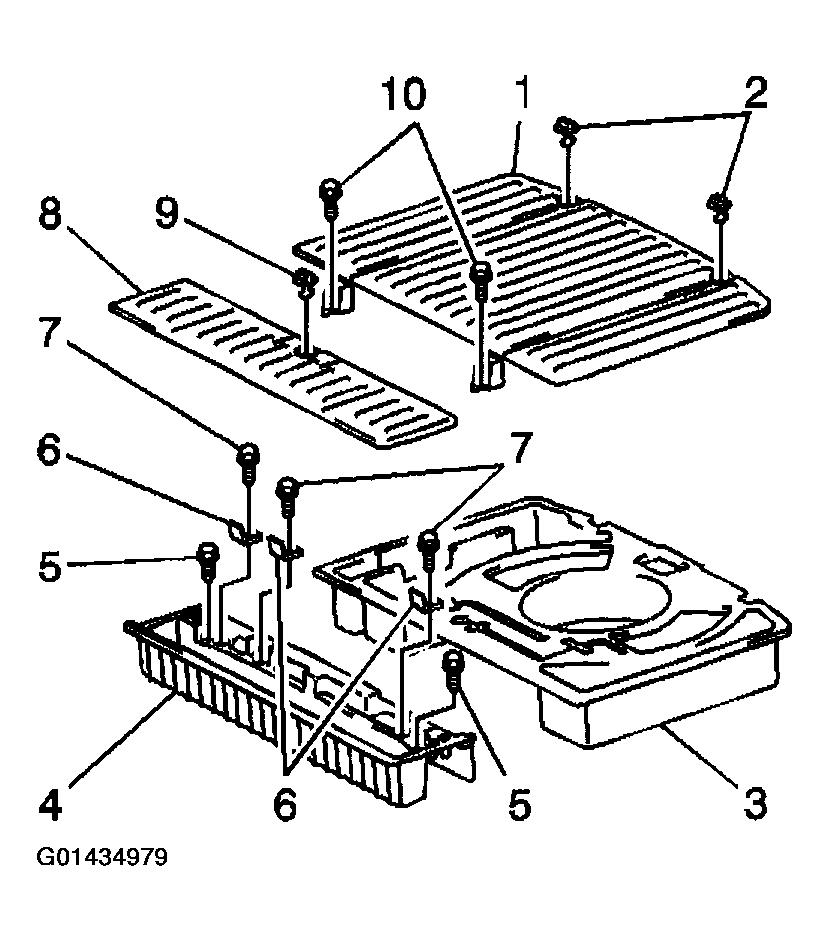

    Fig 1: Removing Tool Storage Compartment From Vehicle
    G01434979Courtesy of GENERAL MOTORS CORP.
