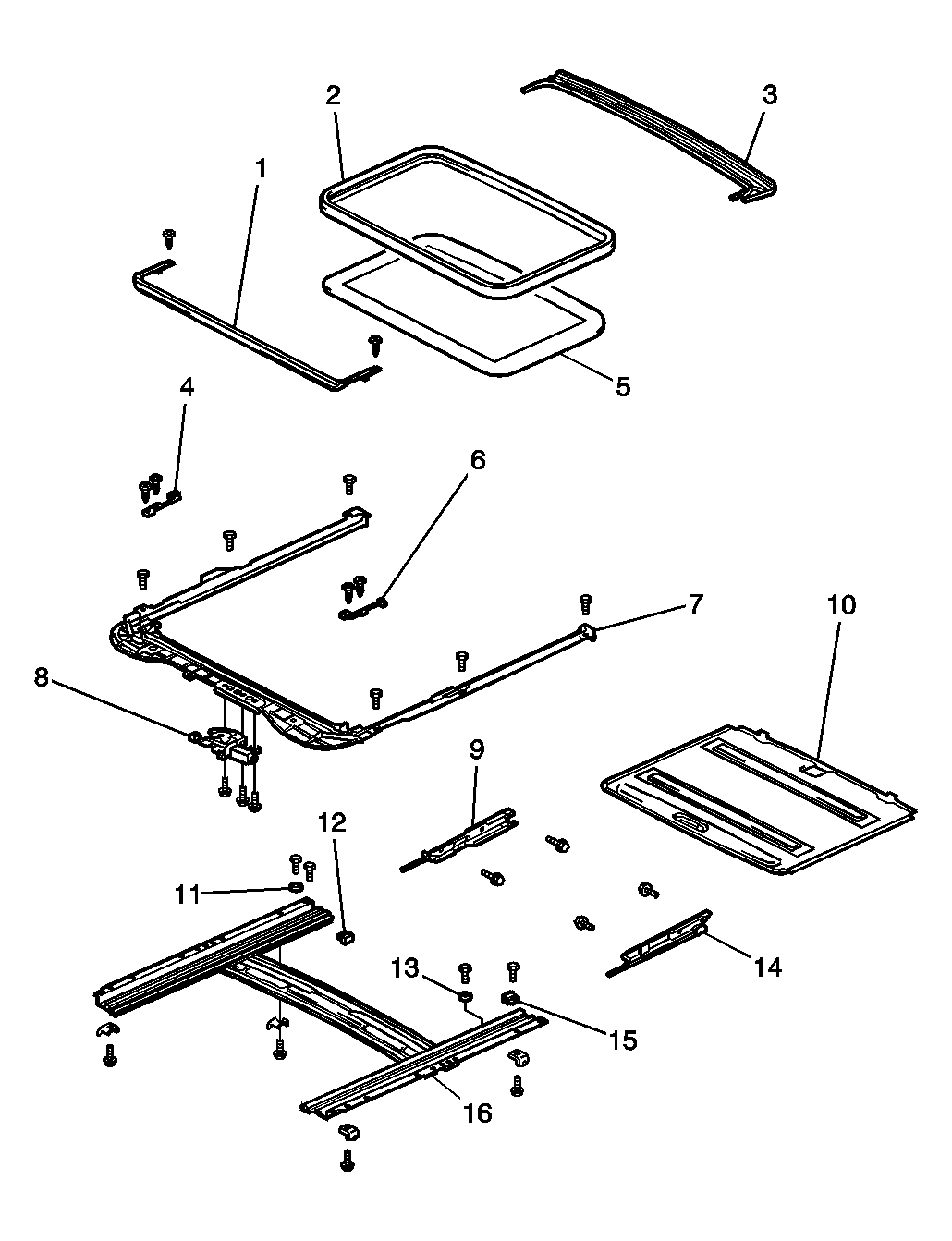

Power Sunroof Disassembled View
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Roof Wind Deflector |
| 2 | Sunroof Weatherstrip |
| 3 | Rear Roof Drip Channel |
| 4 | LH Sunroof Guide Block |
| 5 | Sunroof Glass |
| 6 | RH Sunroof Guide Block |
| 7 | Sunroof Housing |
| 8 | Sunroof Drive Gear Assembly |
| 9 | RH Drive Cable |
| 10 | Sunshade Trim Sub Assembly |
| 11 | Sunroof Panel Stopper |
| 12 | Sunshade Trim Stopper |
| 13 | Sunroof Panel Stopper |
