Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws that retain the console to the roof panel.
  2. Release the front retaining tabs.
  3. Lower the console and disconnect the electrical connectors as needed.
  4. Remove the console from the vehicle
  5. If replacing the console, remove the garage door opener if equipped. Refer to GARAGE DOOR OPENER REPLACEMENT in Garage Door Opener.
  6. If replacing the console, remove the OnStar® microphone if equipped. Refer to ONSTAR (R) MICROPHONE REPLACEMENT in Cellular Communication.
  7. If replacing the console, remove the personal message player/recorder if equipped. Refer to PERSONAL MESSAGE PLAYER/RECORDER REPLACEMENT in Entertainment.
  8. If replacing the console, remove the power sunroof switch if equipped. Refer to POWER SUNROOF SWITCH REPLACEMENT in Roof.
  9. If replacing the console, remove the radio volume compensator interior microphone if equipped. Refer to MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR in Roof.

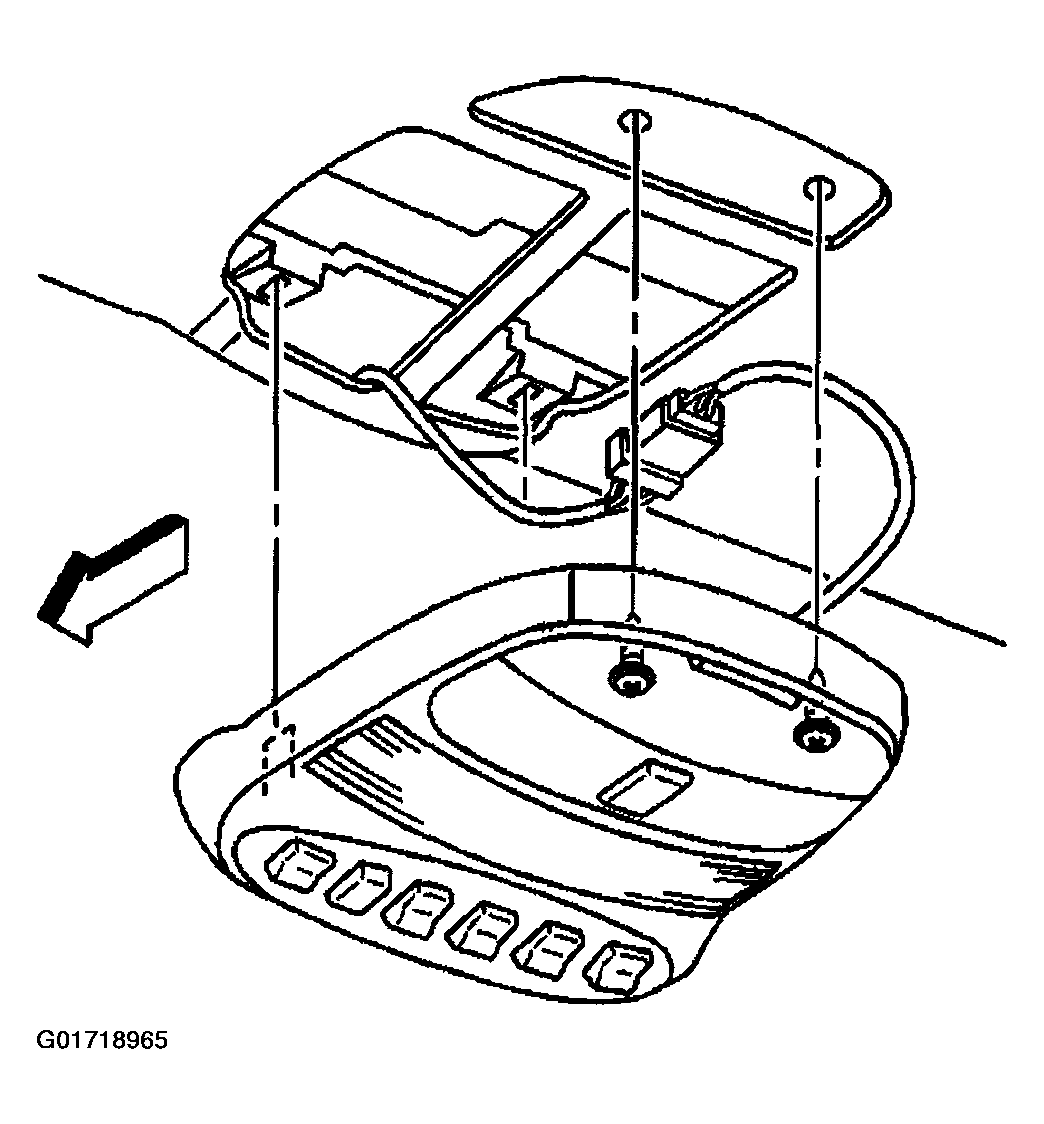

    Fig 1: Removing Overhead Console & Retaining Screws
    G01718965Courtesy of GENERAL MOTORS CORP.
