Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pushrod retainer (3) from the brake pedal pin (4).
  2. Remove the stop lamp switch (1) and the pushrod (2) from the brake pedal pin (4).
  3. Disconnect the stoplamp switch (1) electrical connector.
  4. Remove the stoplamp switch from the vehicle.

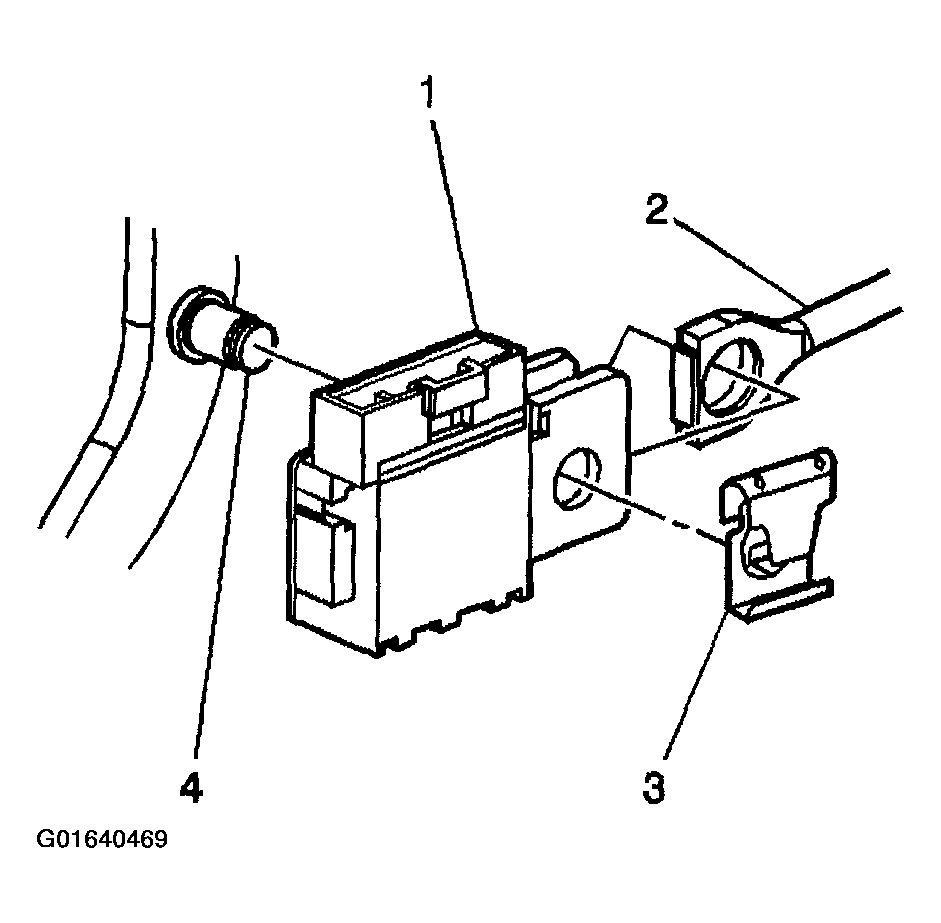

    Fig 1: Disconnecting Stoplamp Switch Electrical Connector
    G01640469Courtesy of GENERAL MOTORS CORP.
