Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up on the front edge of the door lock and side window switch (1) in order to release the front retaining clip.

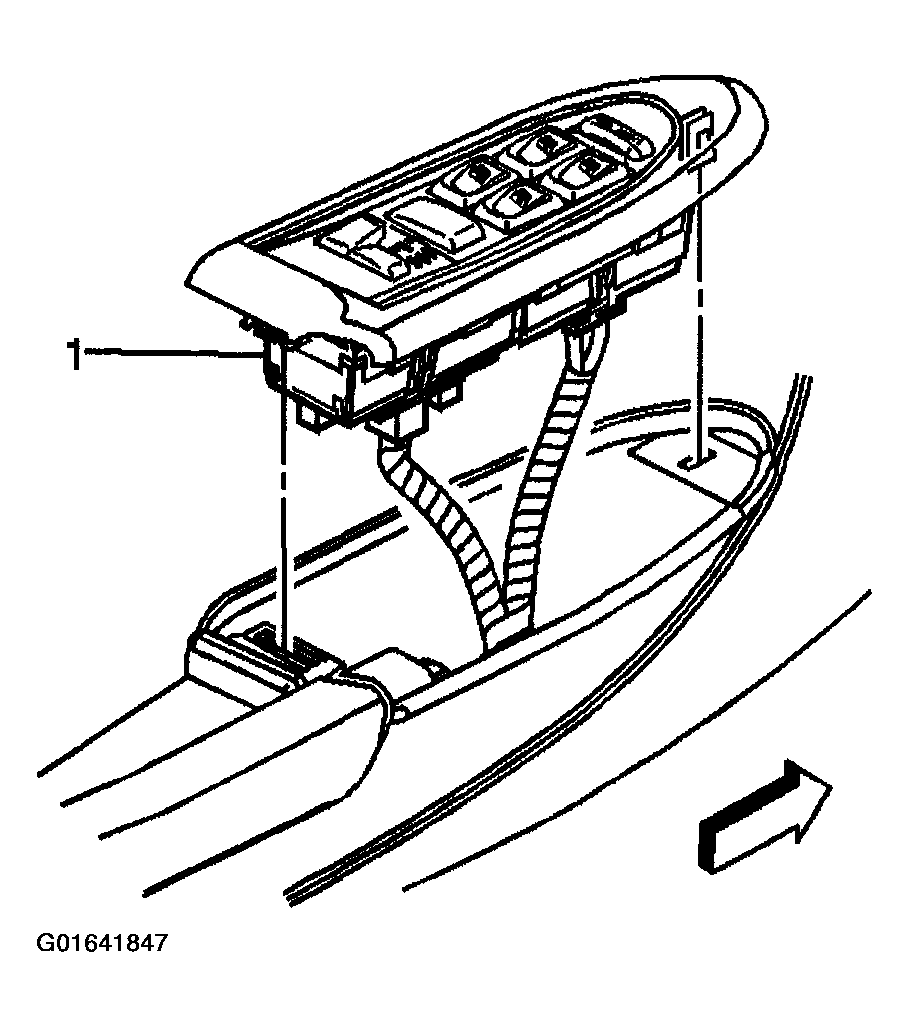

    2. Fig 1: Lift Up On Front Edge Of Door Lock And Side Window Switch
    G01641847Courtesy of GENERAL MOTORS CORP.
  2. Lift up on the rear edge of the switch panel in order to release the 2 rear retaining clips.
  3. Remove the electrical connector (2) from the memory seat switch.

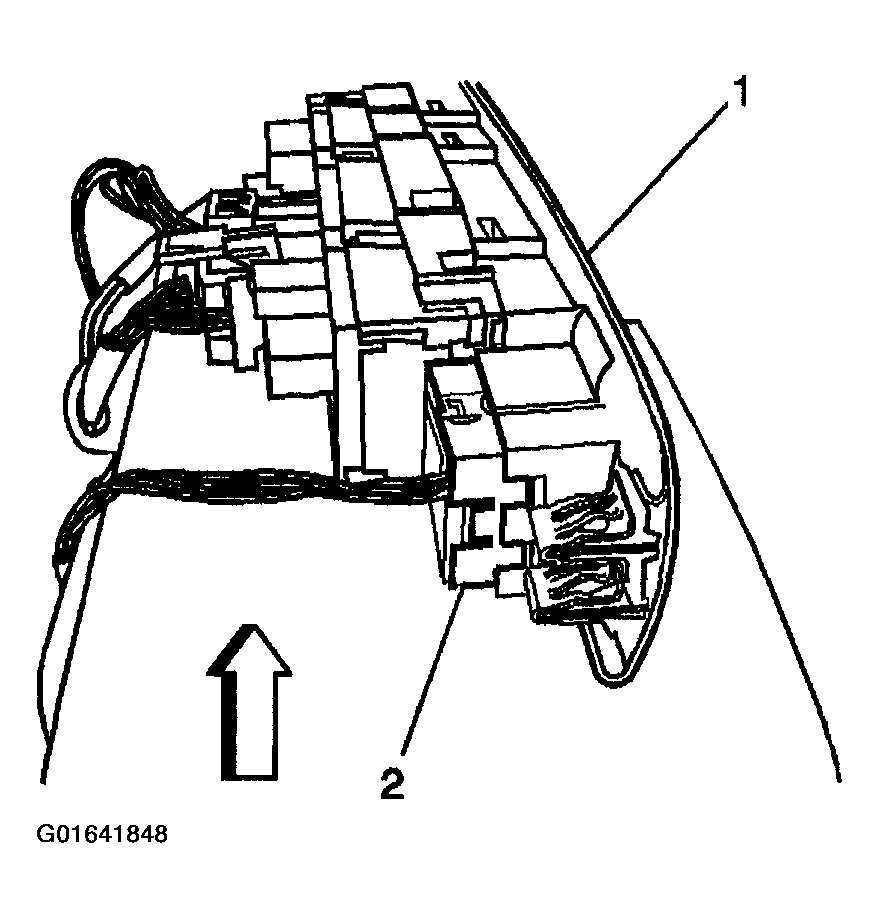

    4. Fig 2: Electrical Connector From Memory Seat Switch
    G01641848Courtesy of GENERAL MOTORS CORP.
  4. Remove the memory seat switch from the lock and door lock and side window switch (1).
