Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Passlock Sensor
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Solenoid
5	Steering Column

Fig 2: Passlock Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passlock Sensor
2	Ignition Key

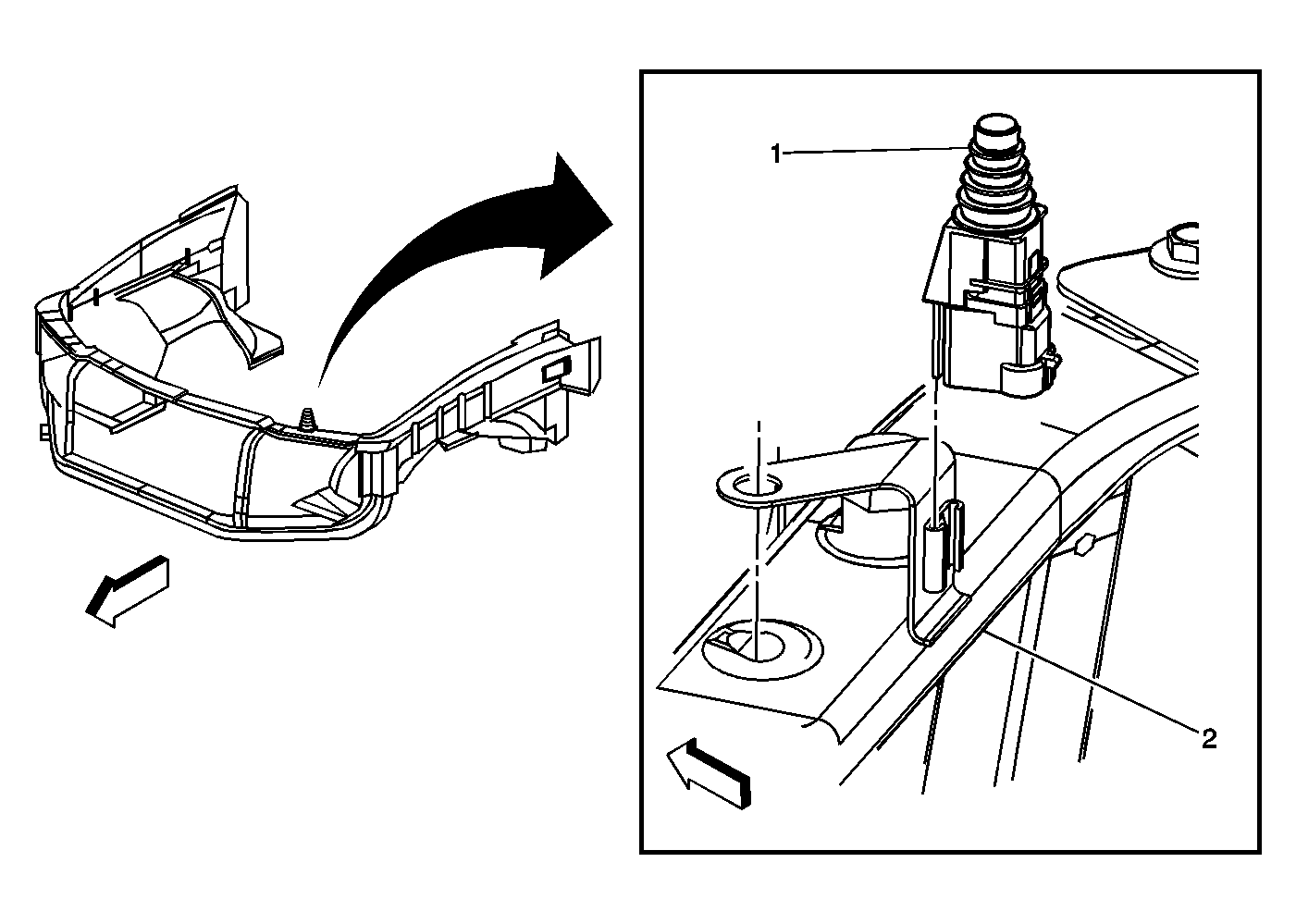

Fig 3: Hood Ajar Switch Component View - Export Only

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch
2	Radiator Support
