Stationary Windows Component Views

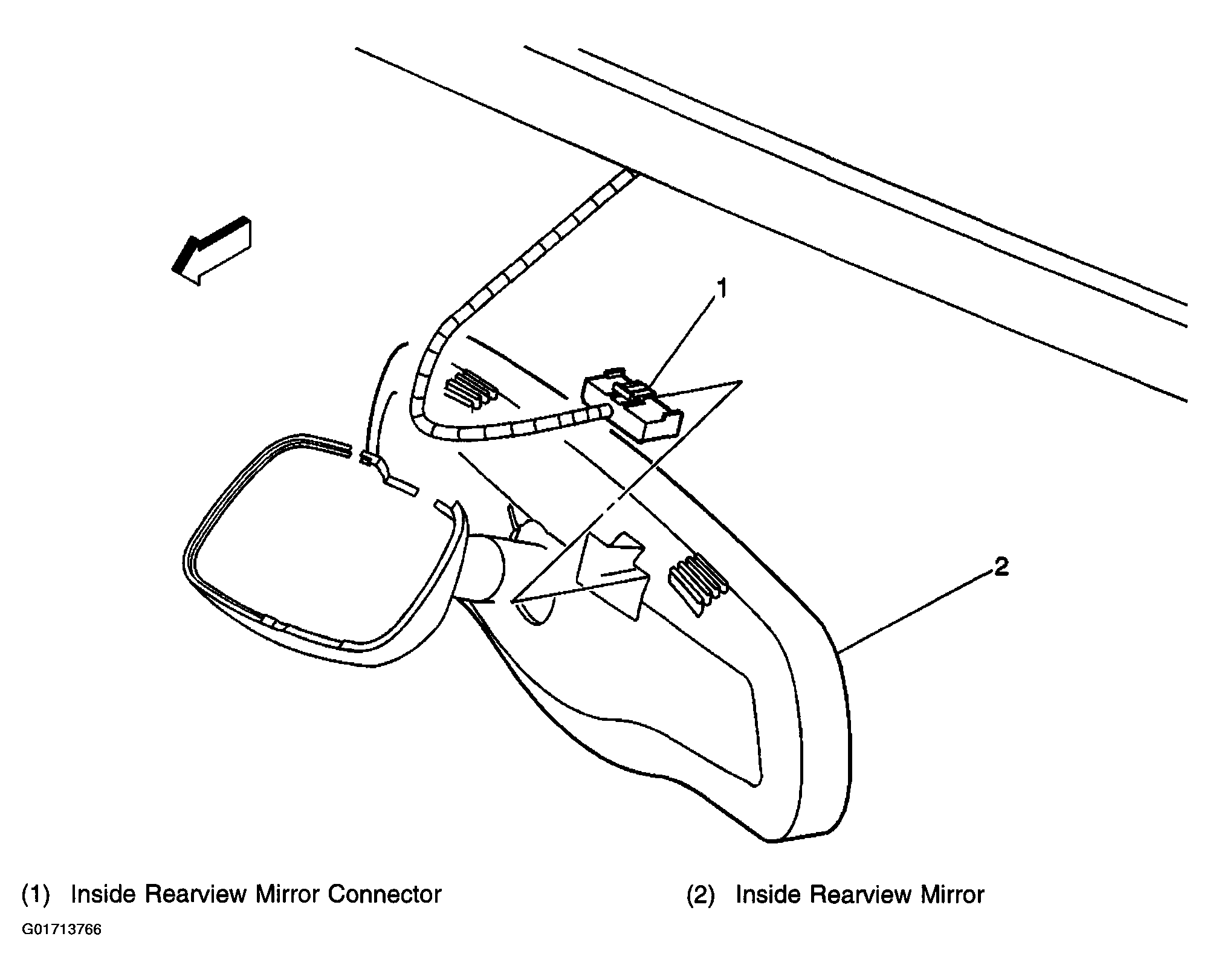

Fig 1: Locating Inside Rearview Mirror
G01713766Courtesy of GENERAL MOTORS CORP.

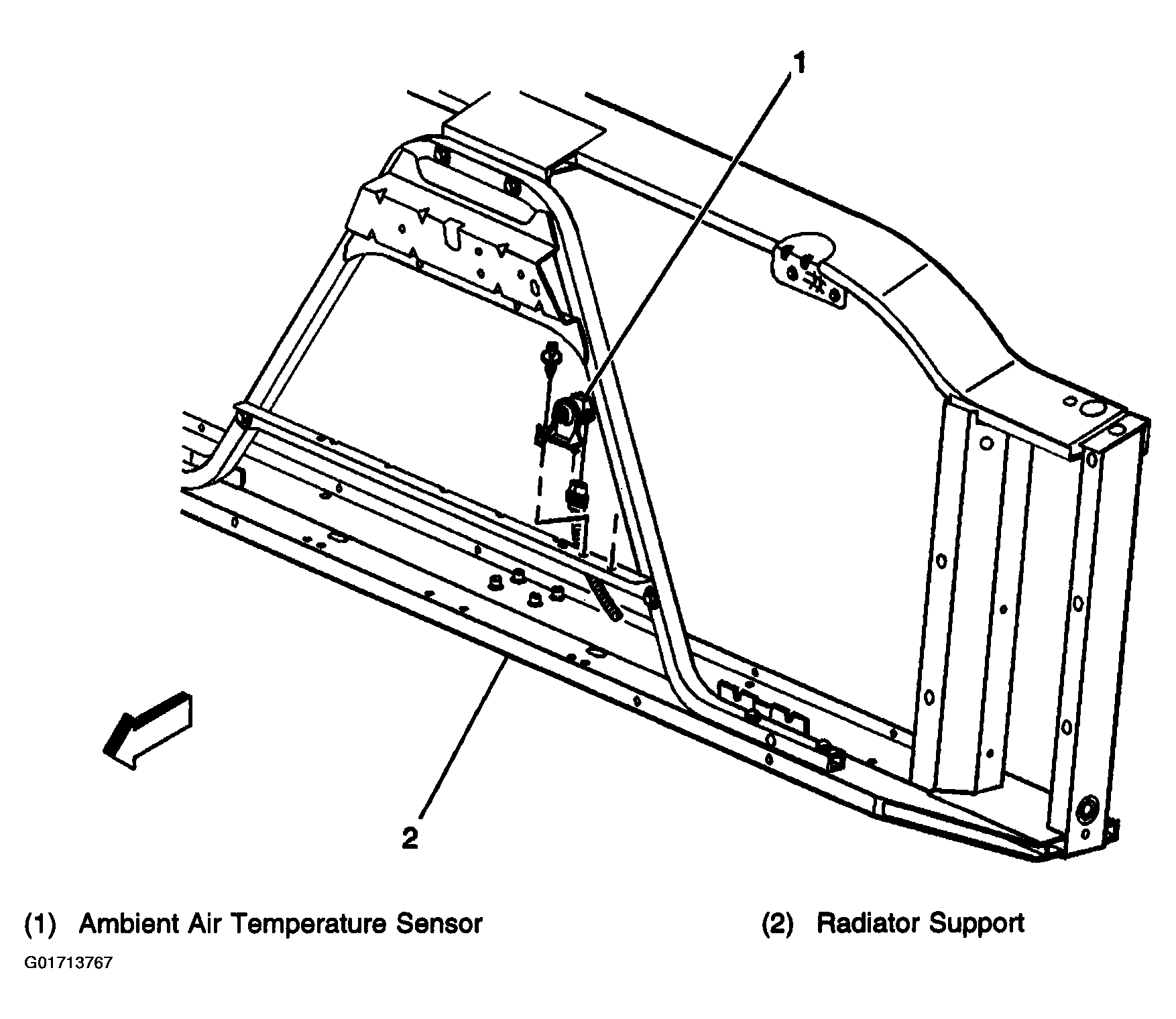

Fig 2: Locating Ambient Air Temperature Sensor
G01713767Courtesy of GENERAL MOTORS CORP.
