Installation Procedure

Install the shift lock actuator to the shift selector and install the fasteners.

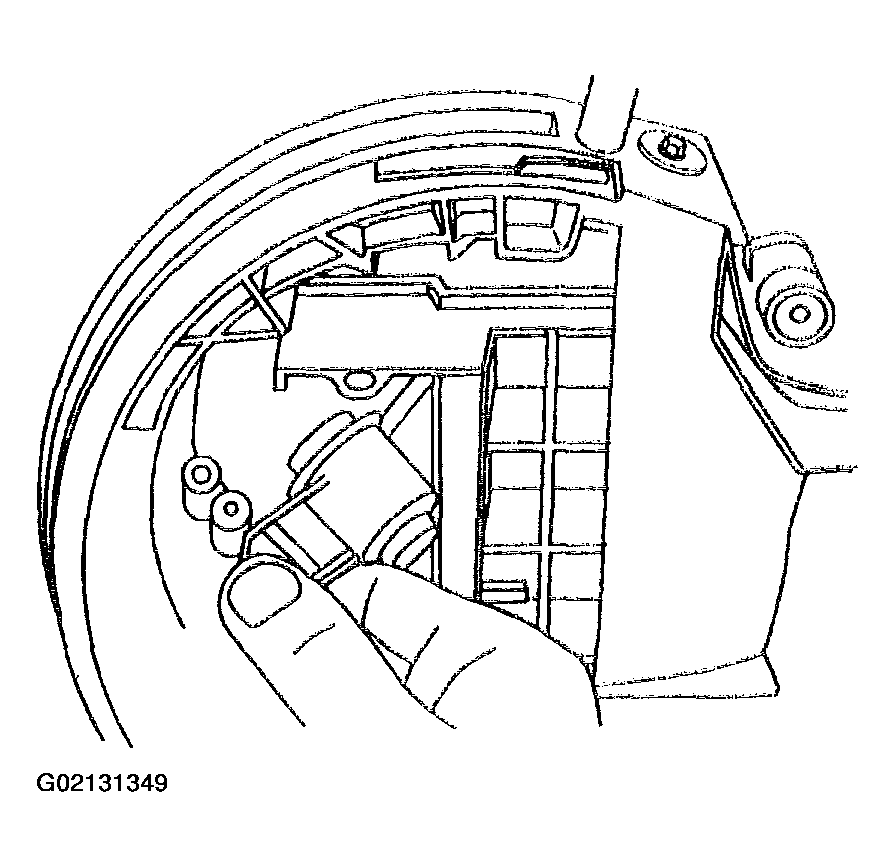

Fig 1: Installing Shift Lock Actuator To Shift Selector & Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the shift lock actuator manual release lever.

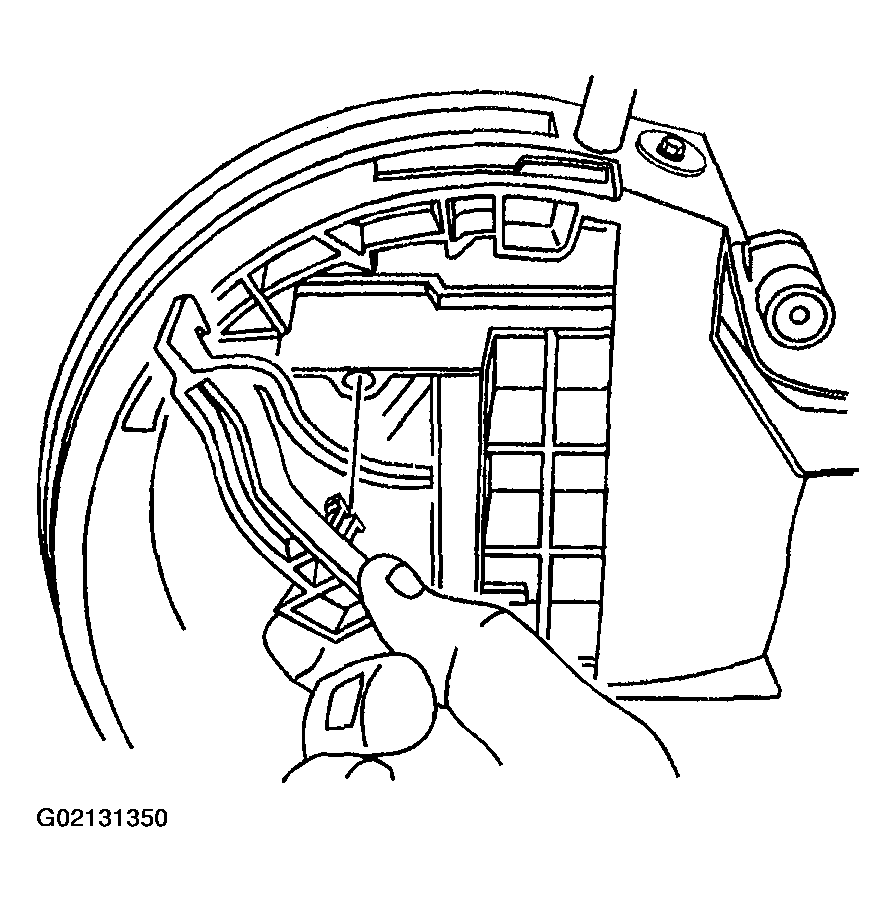

Fig 2: Installing Shift Lock Actuator Manual Release Lever
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector (3).

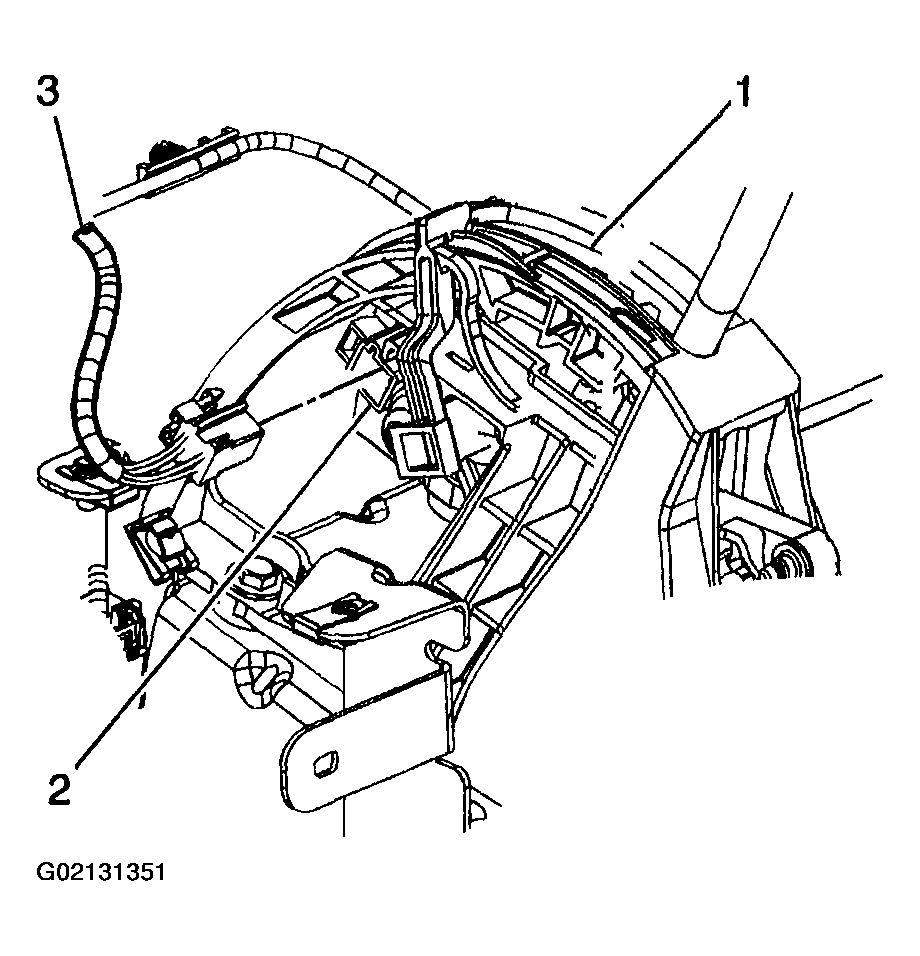

Fig 3: Connecting Shift Lock Actuator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages, and Console.

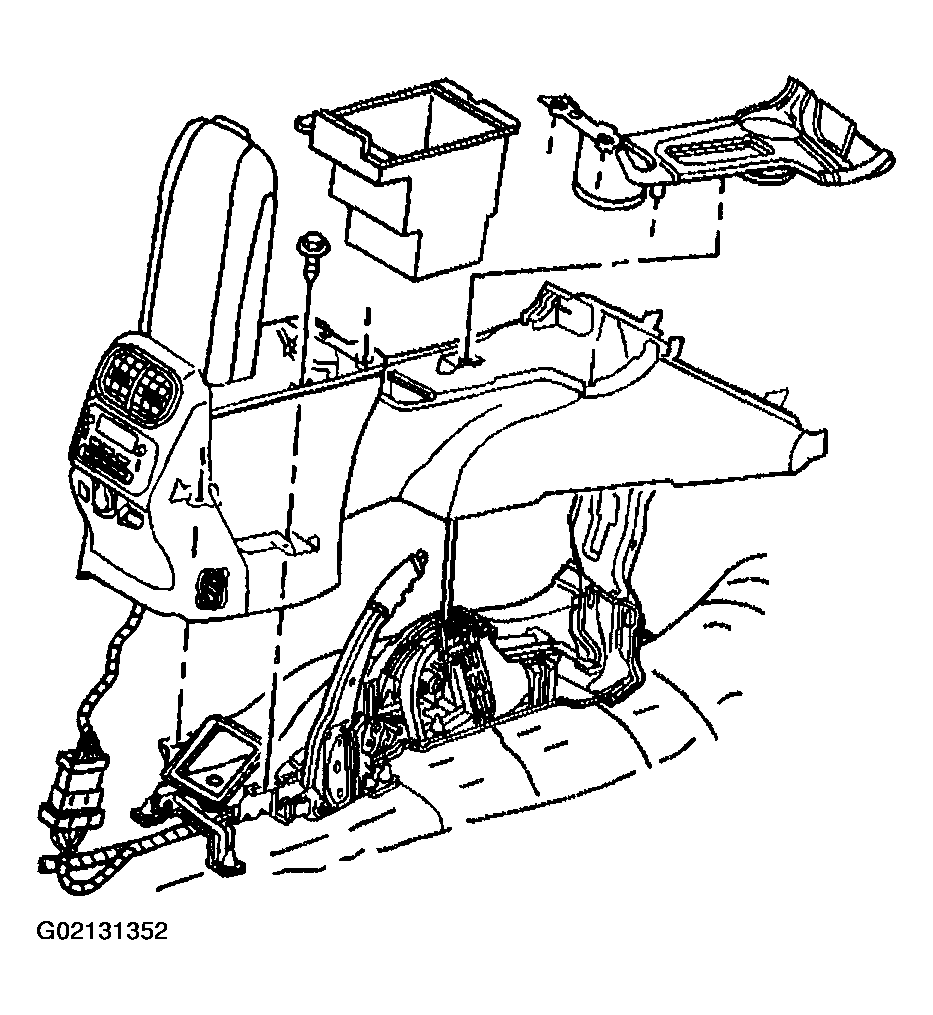

Fig 4: Installing Console
Courtesy of GENERAL MOTORS CORP.
