Steering Mounted Controls Transmitter
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Steering Mounted Controls Transmitter

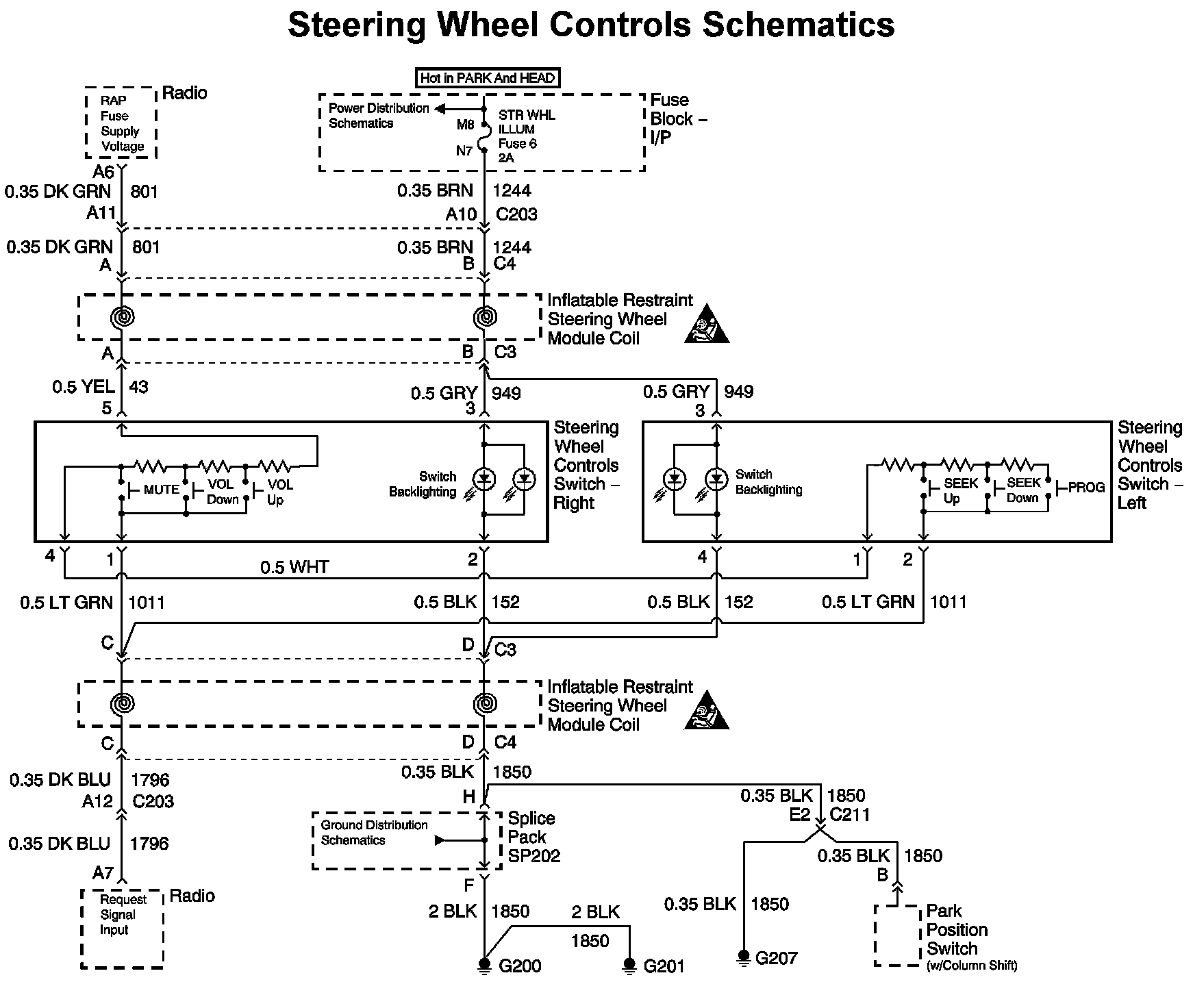

Steering Wheel Controls Diagram:
