NVG 233-NP1 (Two Speed Selectable)

Transfer Case Disassembled View

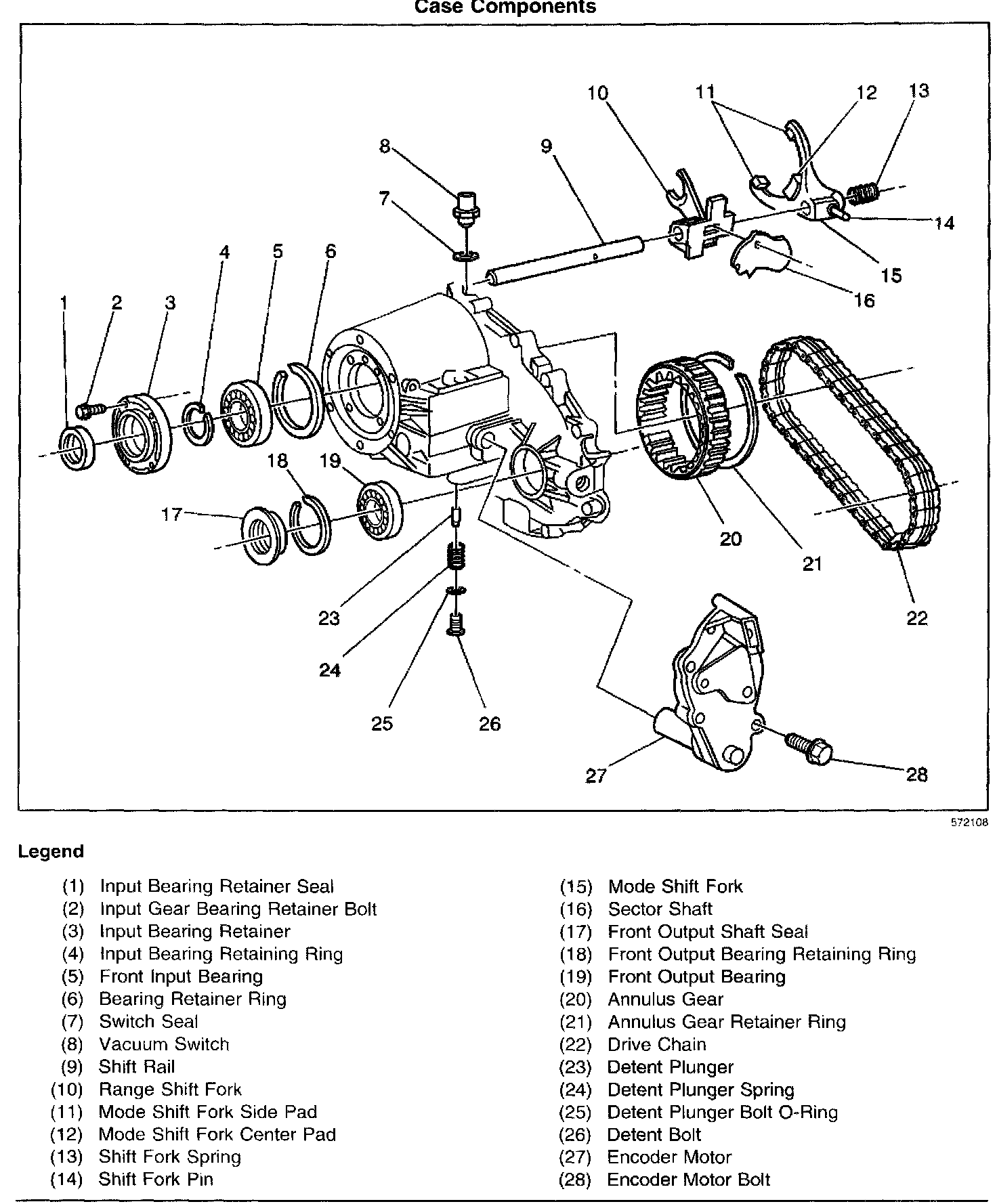

Case Components





Part 1 of 2





Part 2 of 2

Internal Components
