Front Caster and Camber Adjustment

Front Caster and Camber Adjustment

Important: Before adjusting the caster angle and camber angle, raise and release the front bumper. Do this twice in order to allow the vehicle to return to a normal height.

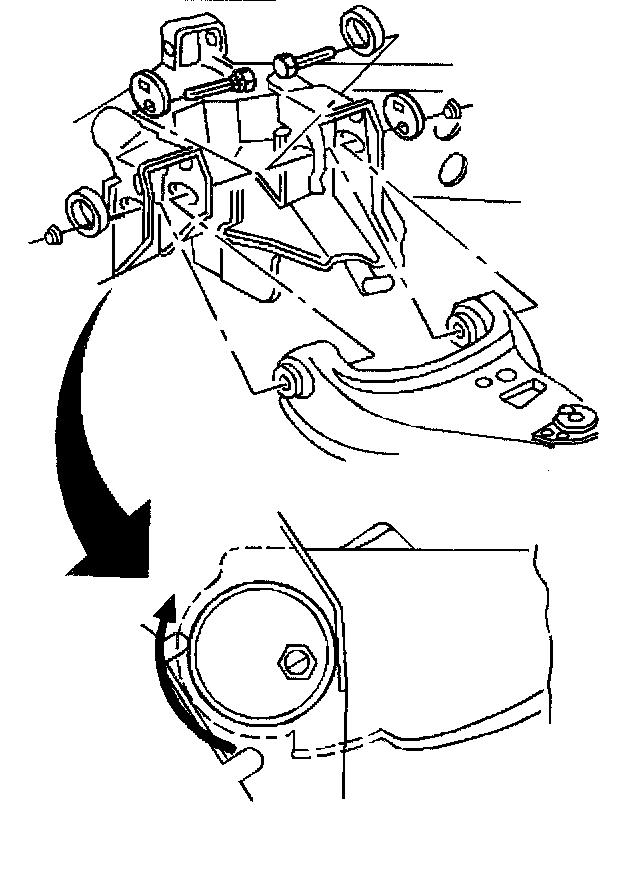

1. Use the cams on the upper control arm frame attaching bolts to adjust the caster and the camber.

To adjust the caster and the camber, loosen the upper control arm-to-frame attaching nuts and rotate the cam by rotating the bolt head.

View Of Left Front Wheel From Left Side Of Vehicle:

^ Caster - To increase positive caster, move the front cam lobe inboard and/or move the rear cam lobe outboard.

View Of Front Wheel From Front Of Vehicle:

^ Camber - To increase positive camber, move the front and the rear cam lobes inboard.

2. Tighten the nuts after you select the proper cam position.

Tighten the nuts to 115 Nm (85 ft. lbs.).
