Air Temperature Sensor ( Ambient / Intake ): Service and Repair

REMOVAL PROCEDURE

1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




2. Disconnect the intake air temperature (IAT) sensor harness connector.

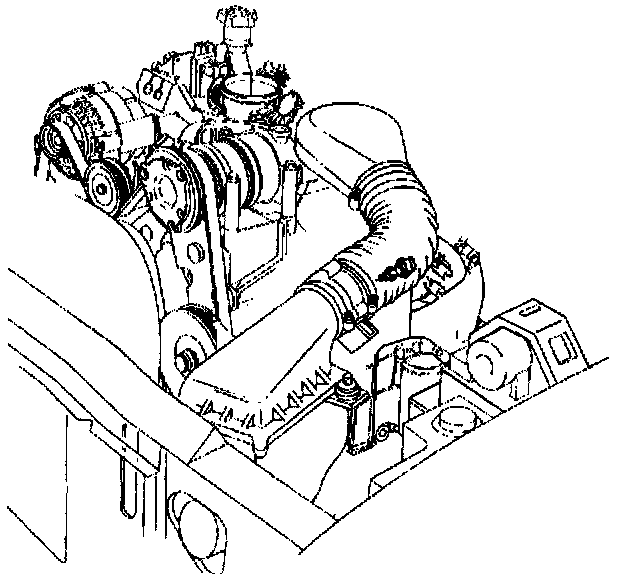

Intake Air Temperature (IAT) Sensor:

3. Remove the IAT sensor by pulling straight out using a rotating motion.

INSTALLATION PROCEDURE

Intake Air Temperature (IAT) Sensor:

1. Install the IAT sensor by gently pushing the sensor into the air cleaner outlet duct until seated.




2. Connect the IAT sensor harness connector.
3. Connect the negative battery cable.
