Vehicle Speed Sensor: Locations

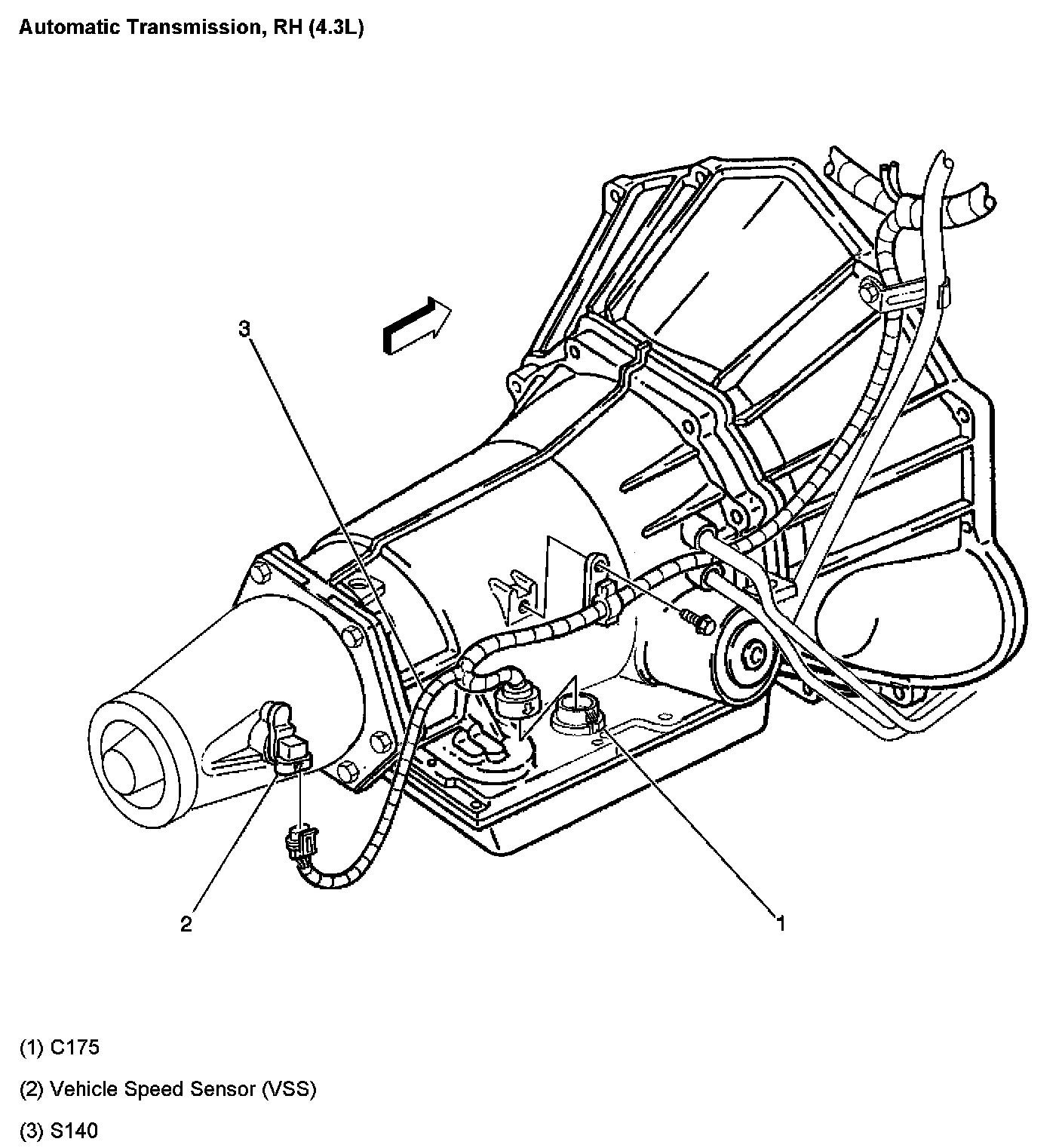

Automatic Transmission, RH:

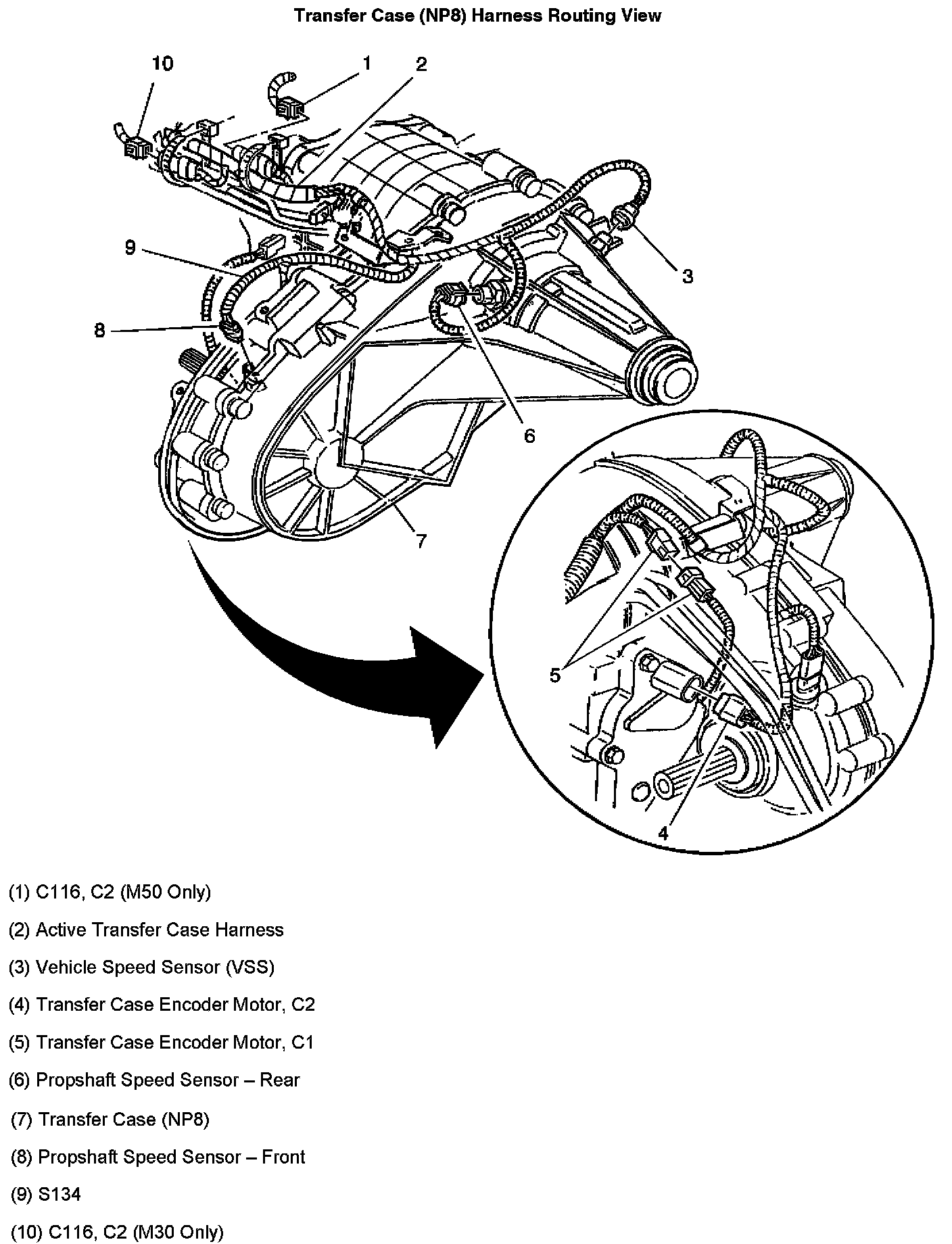

Transfer Case (With RPO Code NP8) Harness Routing View:
