Neutral Safety Switch: Locations

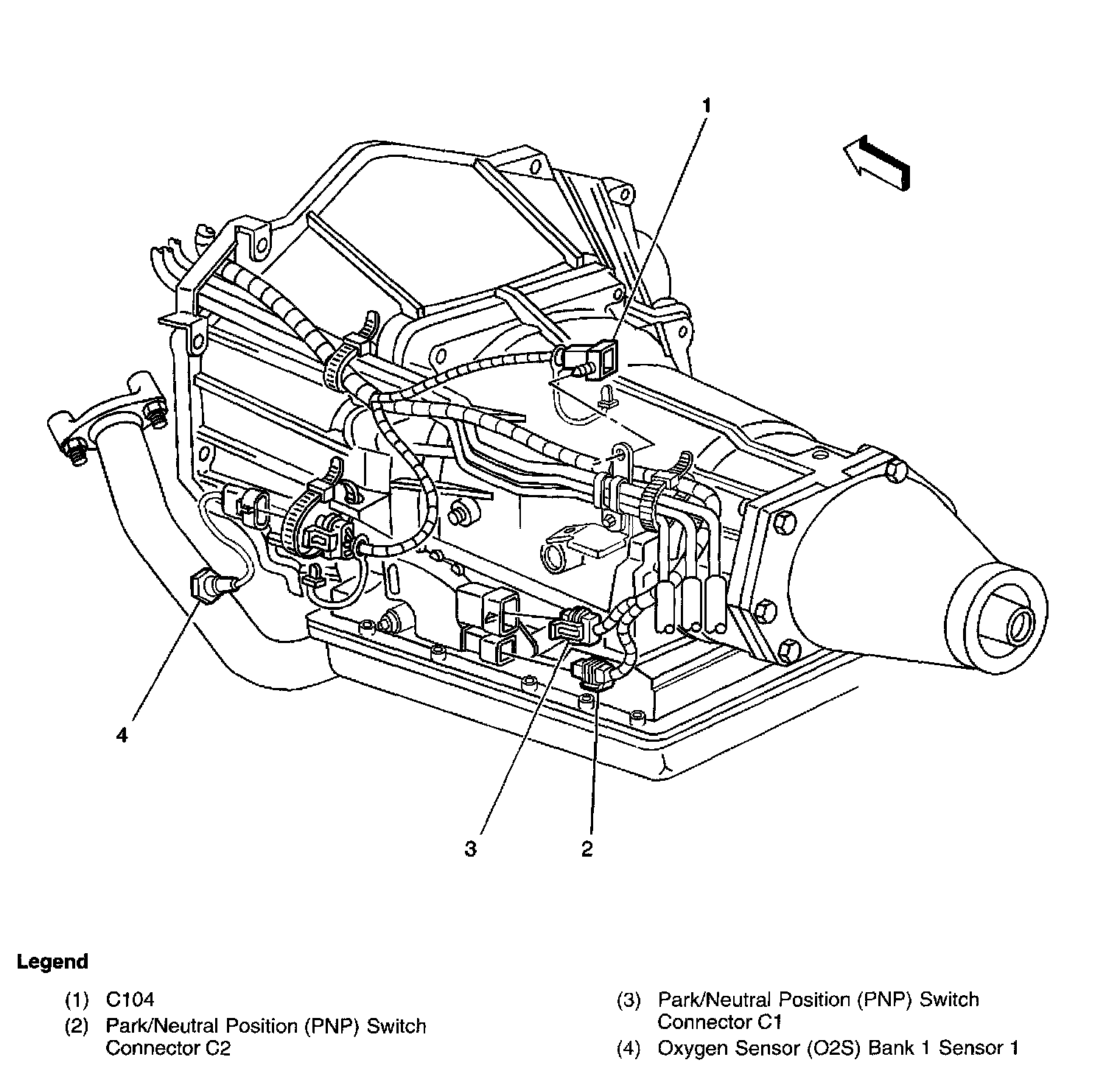

Park/Neutral Position (PNP) Switch (w/ A/T) (4.3L Shown, 2.2L Similar:
