Installation Procedure

  1. Install the rubber pad.
  2. Slide the cupholder into the bracket.
  3. Snap the cupholder into place.

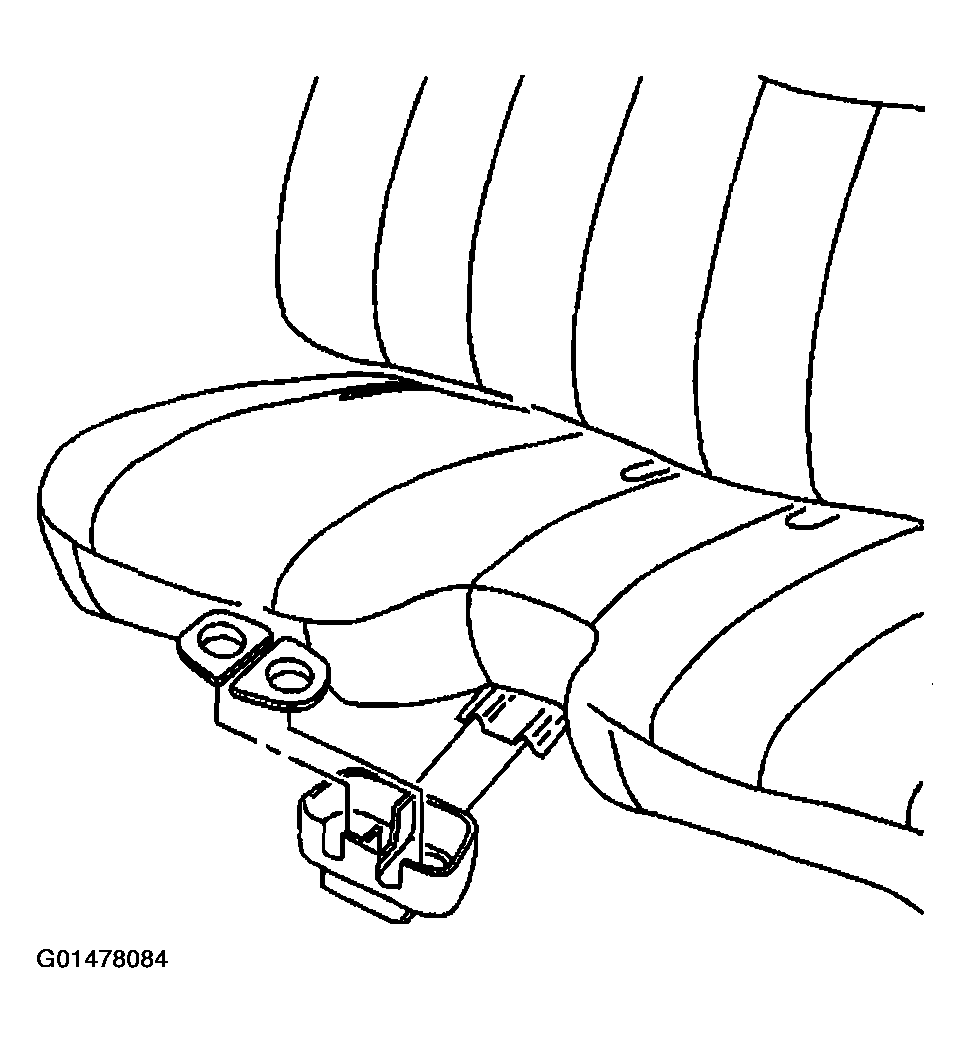

    Fig 1: Installing Cupholder Into Bracket
    G01478084Courtesy of GENERAL MOTORS CORP.
