Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable.
  2. Remove the folding outside mirror switch by carefully using a flat-bladed tool in order to pry up on the leading edge.
  3. Remove the accessory switch panel from the armrest.

    Use a flat-bladed tool in order to carefully pry the cover up at the front leading edge leaving the electrical connections connected.

  4. Disconnect the electrical connector from the power folding mirror switch.

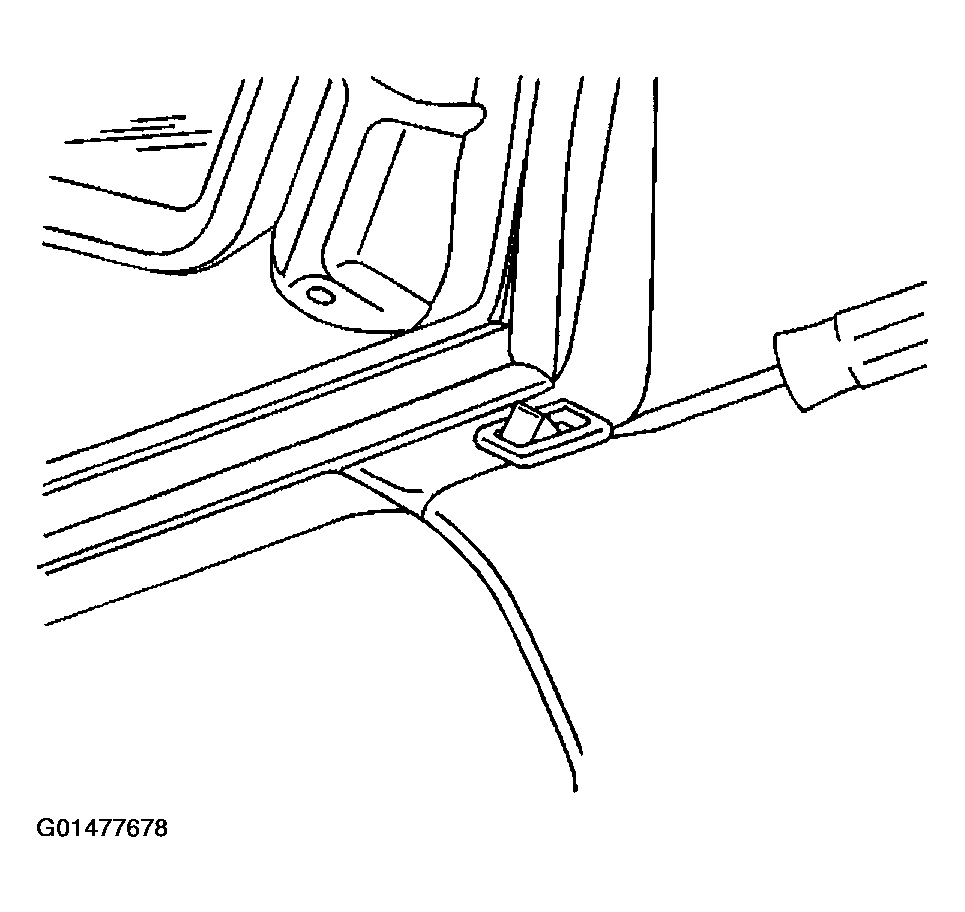

    Fig 1: Removing Power Folding Outside Mirror Switch From Door Trim Panel
    G01477678Courtesy of GENERAL MOTORS CORP.
