Installation Procedure

  1. Install the lower door striker to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts retaining the lower door striker.

    Tighten

    Tighten the bolts to 10 N.m (89 Ib. in).

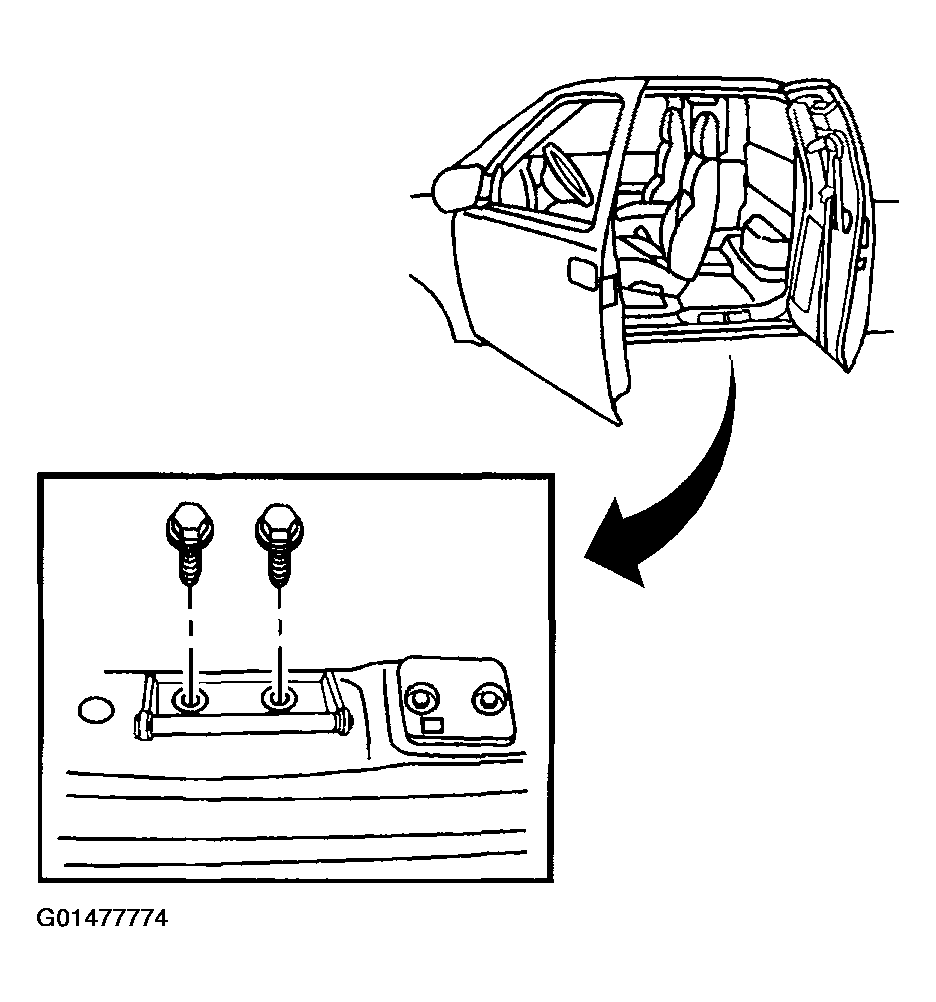

    Fig 1: Installing Lower Door Striker To Vehicle
    G01477774Courtesy of GENERAL MOTORS CORP.
