Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray retaining bolts.

    Tighten

    Tighten the battery tray retaining bolts to 25 N.m (18 lb ft).

  3. Install the battery. Refer to BATTERY REPLACEMENT  .

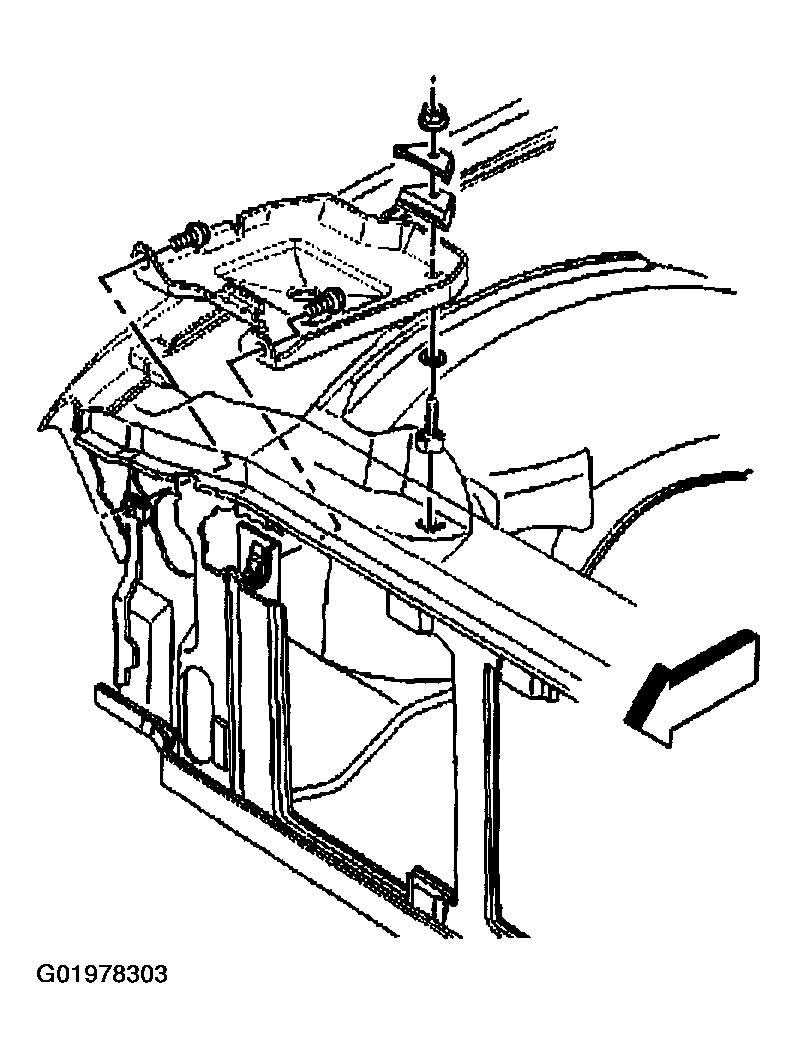

    Fig 1: Installing Battery Tray
    G01978303Courtesy of GENERAL MOTORS CORP.
