Horns Connector End Views

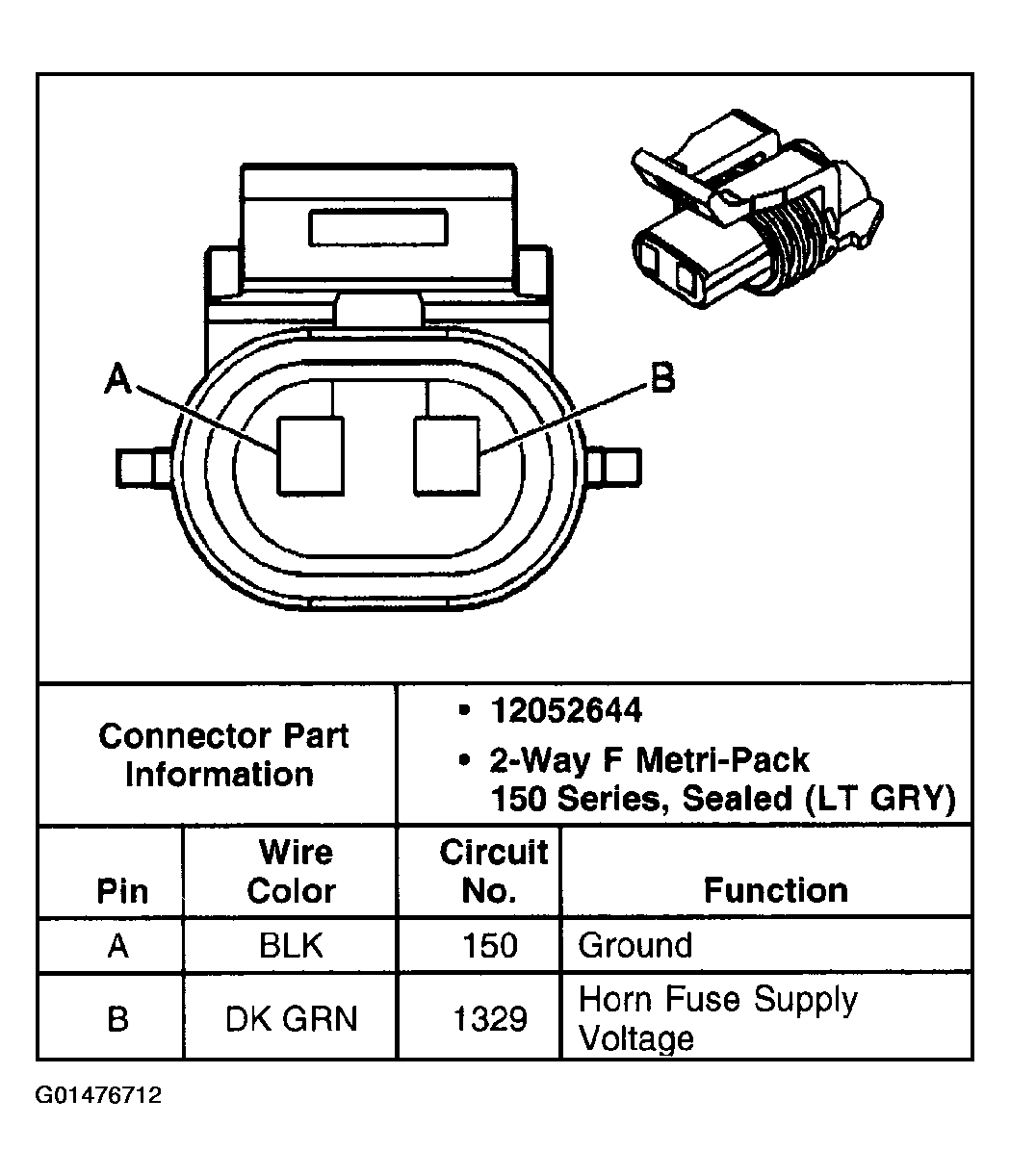

Fig 1: Horn - Left
G01476712Courtesy of GENERAL MOTORS CORP.

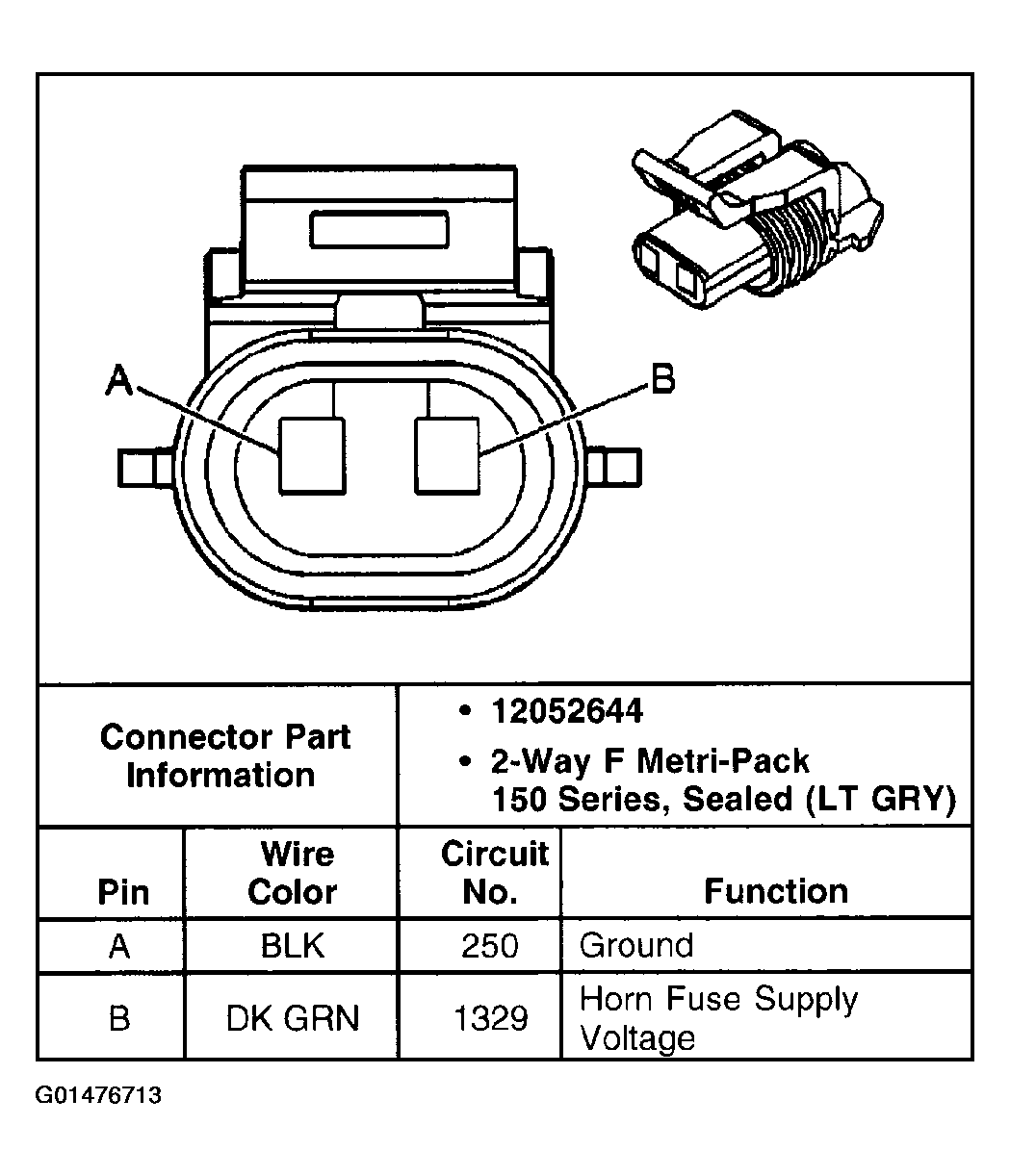

Fig 2: Horn - Right
G01476713Courtesy of GENERAL MOTORS CORP.
