Removal Procedure

  1. Remove instrument panel (IP) bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the instrument panel (IP) assembly (3).
  3. Disconnect the harness connector from the traction control switch.

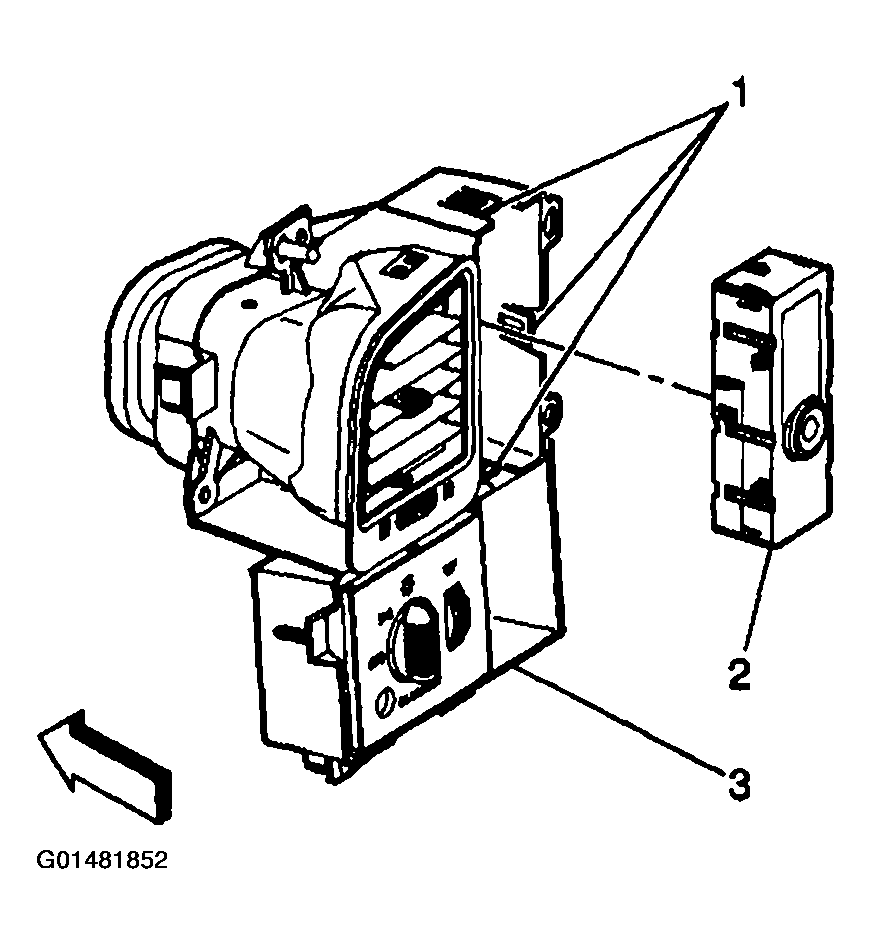

    Fig 1: Removing Traction Control Switch From Instrument Panel (IP) Assembly
    G01481852Courtesy of GENERAL MOTORS CORP.
