Engine Electrical Connector End Views

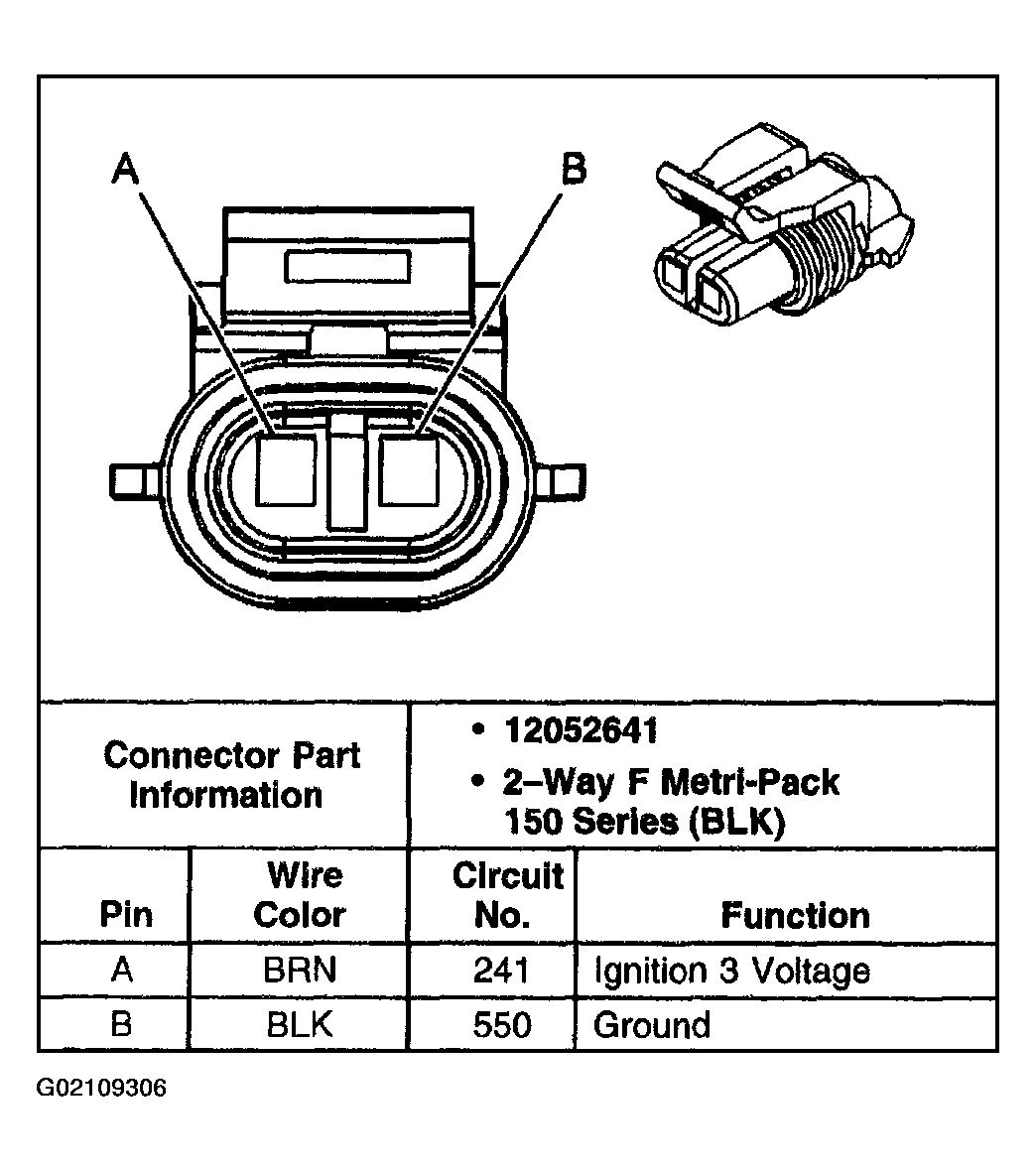

Fig 1: Auxiliary Battery Relay

G02109306

Courtesy of GENERAL MOTORS CORP.
