Automatic Transmission Shift Lock Control Connector End Views

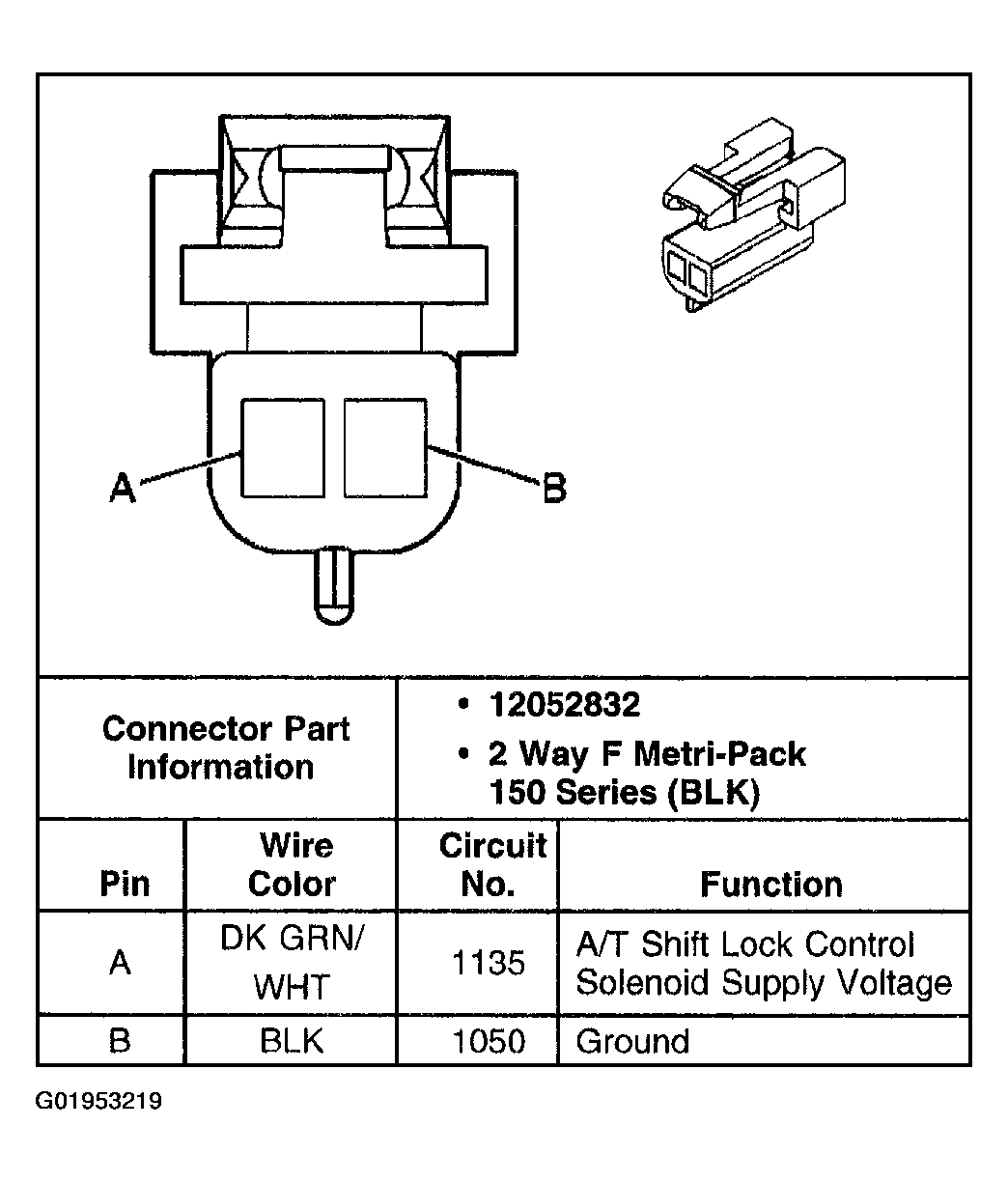

Fig 1: Transmission Shift Lock Control Actuator Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
