Transfer Case Shift Control Module - C2 Connector End View

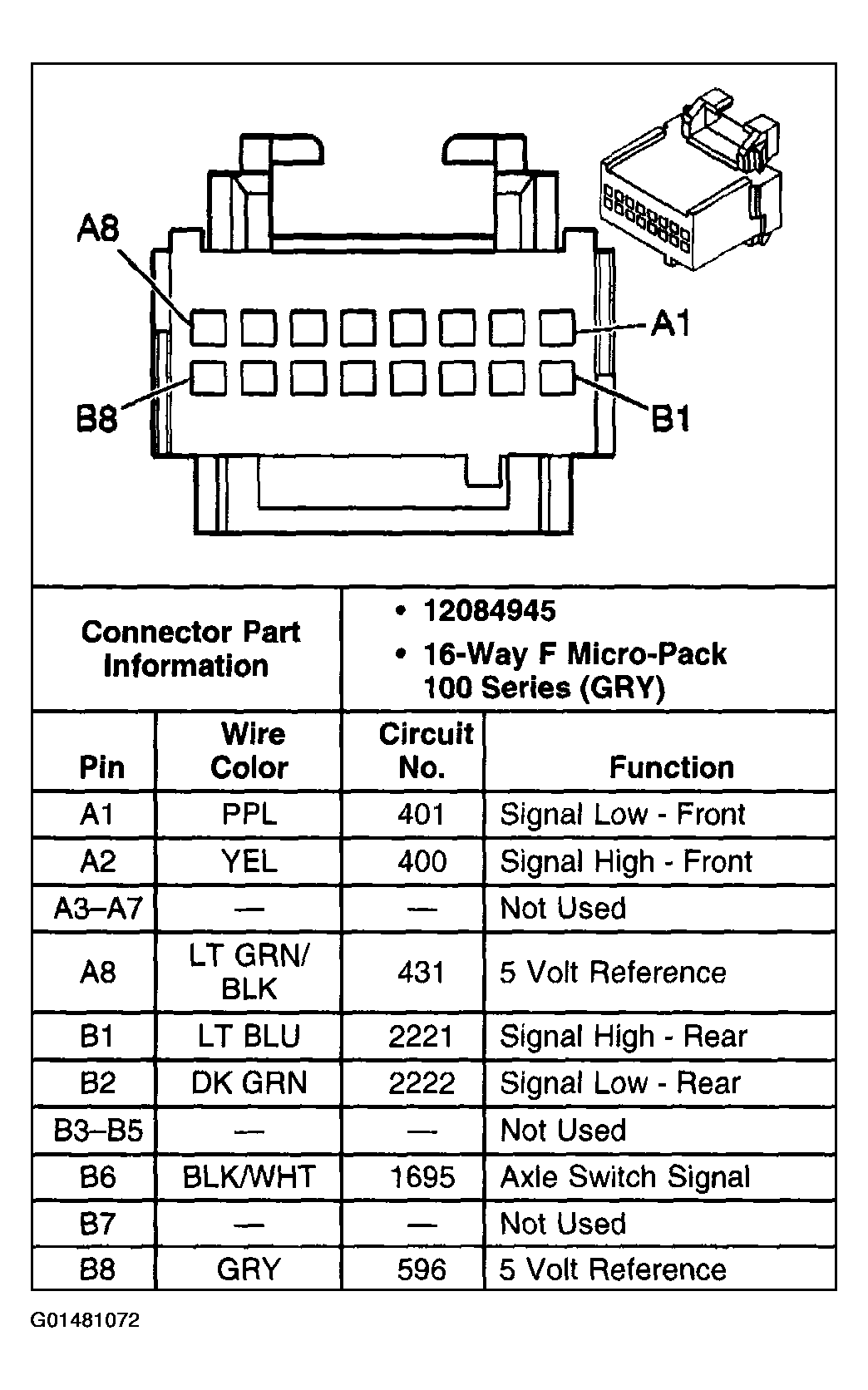

Fig 1: Transfer Case Shift Control Module - C2 Connector End View
G01481072Courtesy of GENERAL MOTORS CORP.

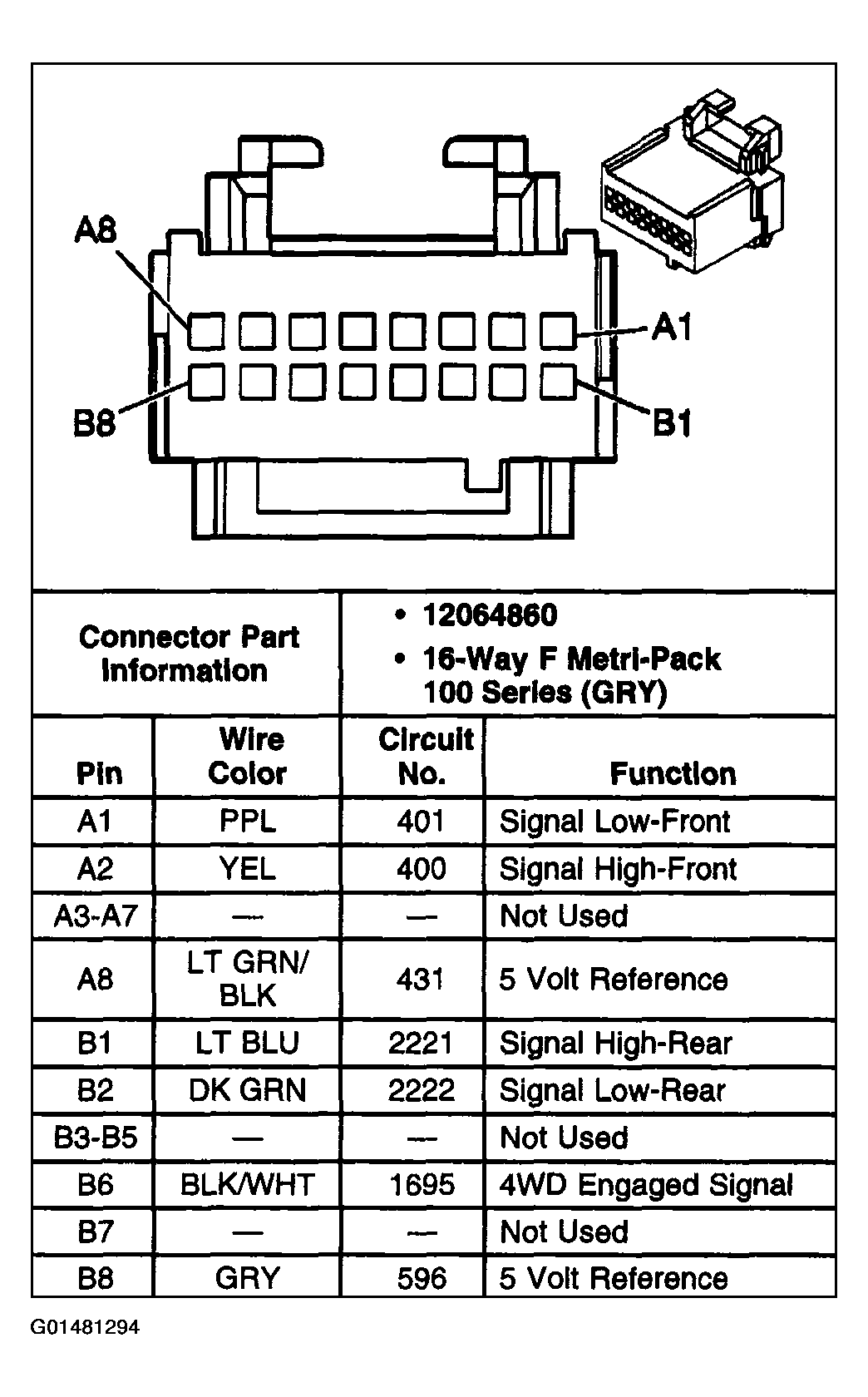

Fig 1: Transfer Case Shift Control Module - C2 Connector End View
G01481294Courtesy of GENERAL MOTORS CORP.
