Driver/Vehicle Information Display

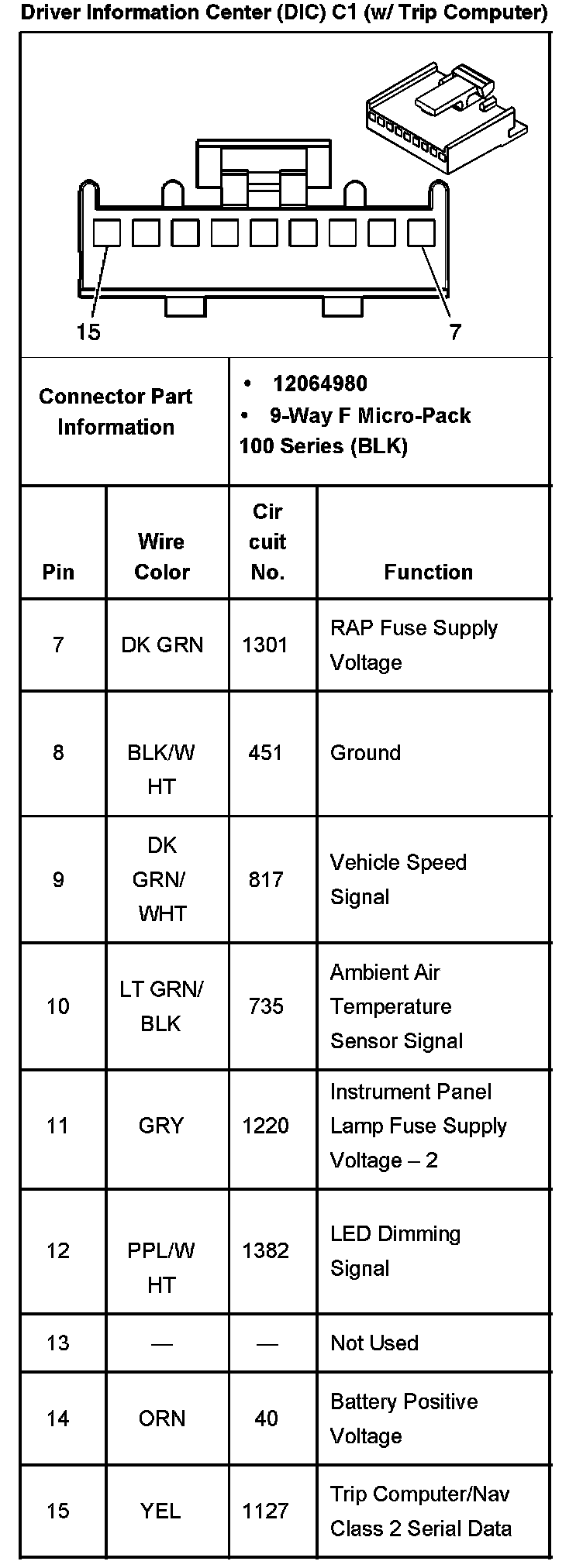

Driver Information Center (DIC) C1 (w/ Trip Computer):



Driver Information Center (DIC) C1 (w/o Trip Computer):



Driver Information Center (DIC) C2 (w/ Short Console):
