Accessory Delay Module

Retained Accessory Power (RAP) Diagram 1:




Retained Accessory Power (RAP) Diagram 2:

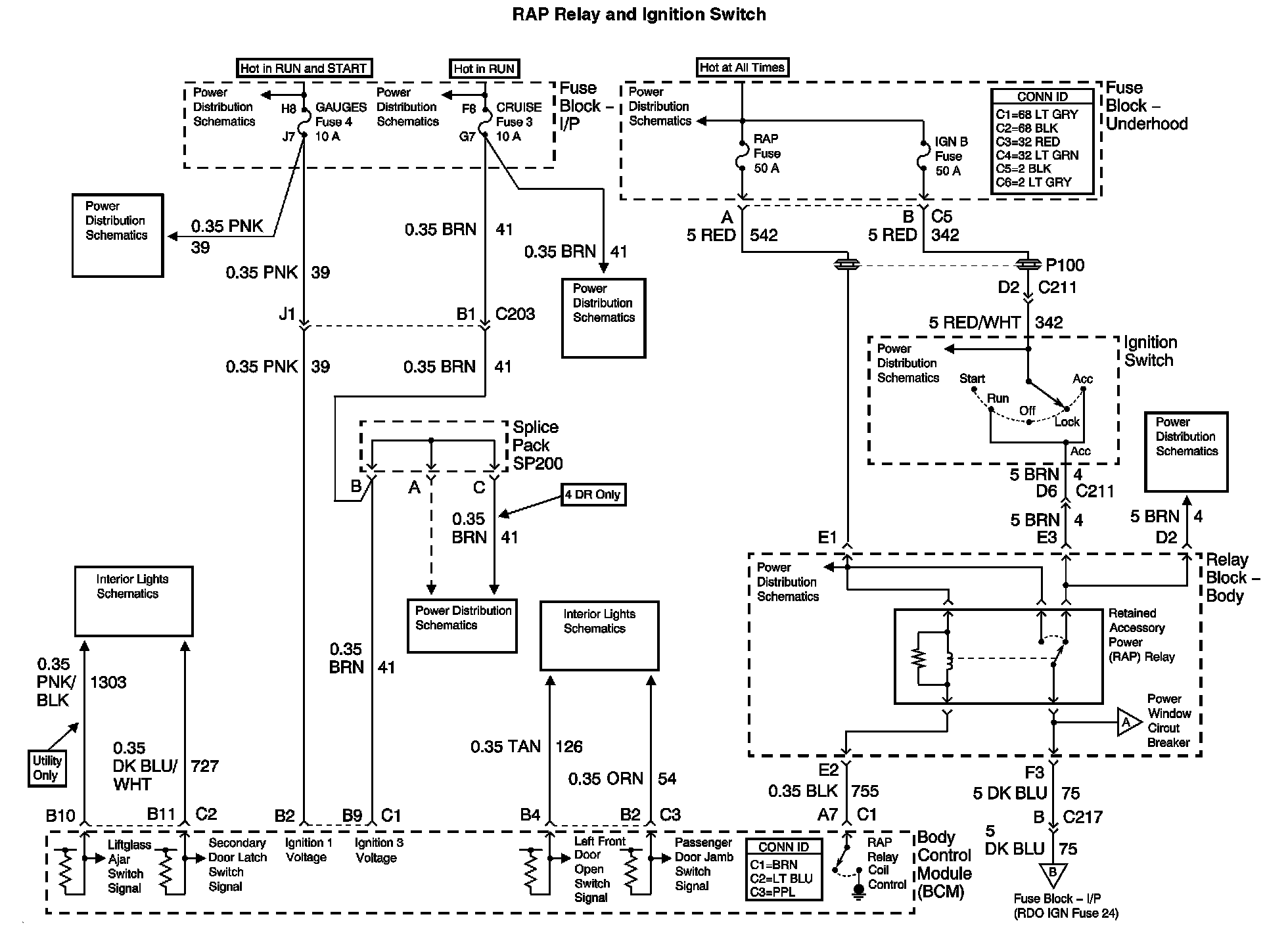

Retained Accessory Power (RAP) Diagram 3:
