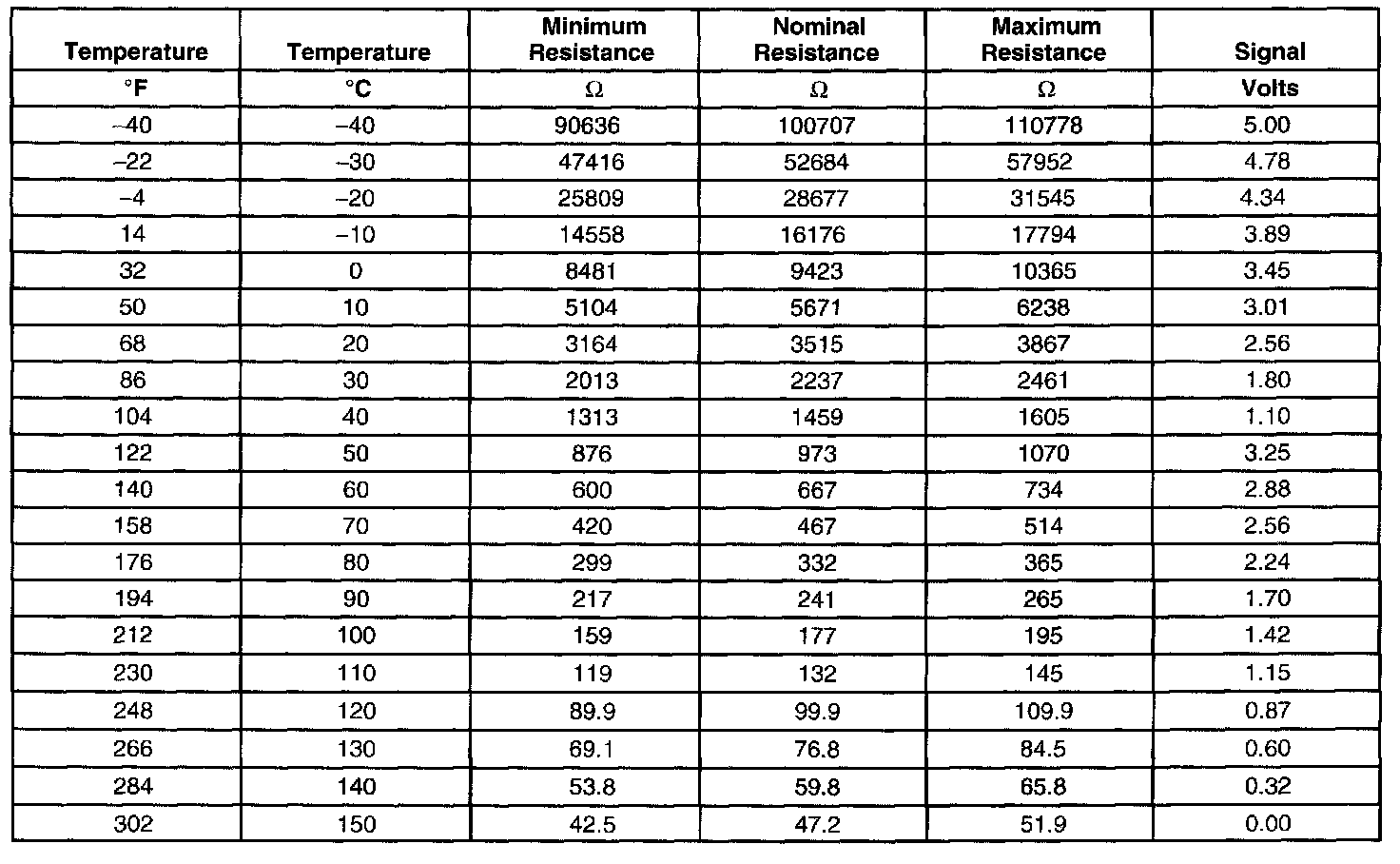

Transmission Fluid Temperature (TFT) Sensor Specifications
Transmission Fluid Temperature (TFT) Sensor Specifications:
