Firing Order & Cylinder Identification

See FIRING ORDER & CYLINDER IDENTIFICATION .

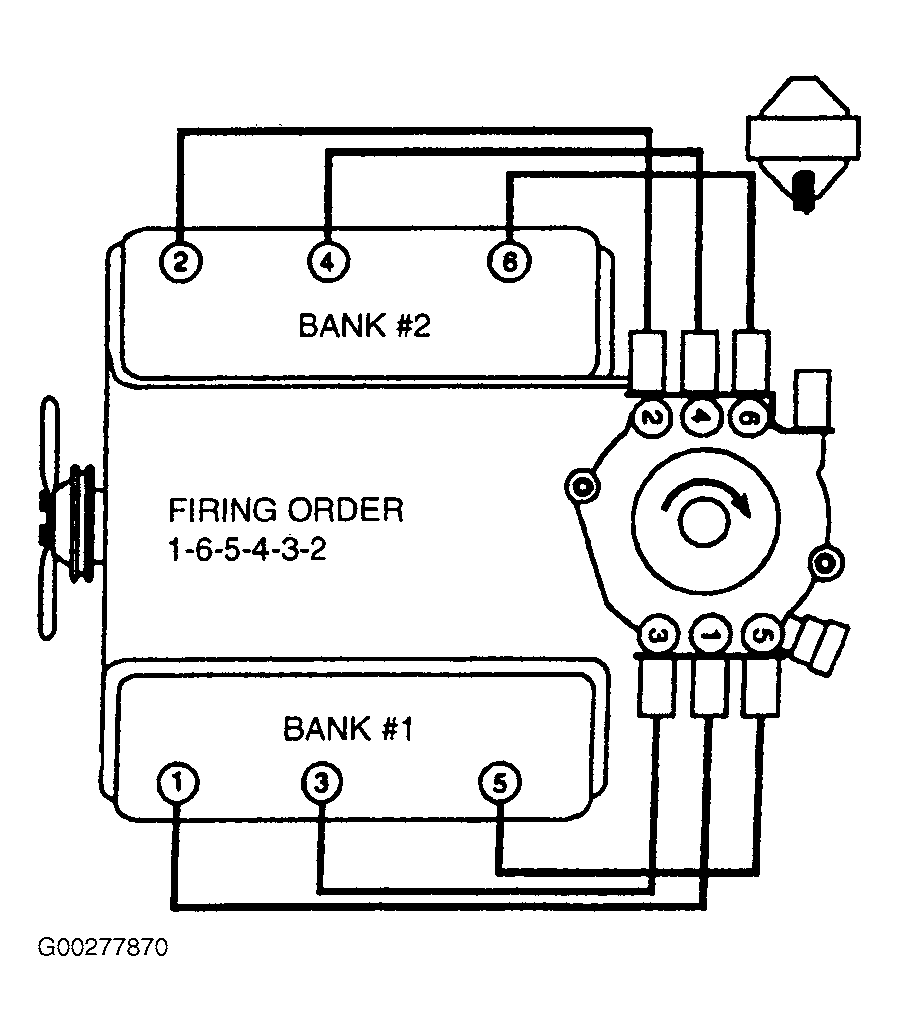

Fig 1: Identifying Cylinder, Firing Order & Spark Plug Wire Routing (4.3L)
G00277870Courtesy of GENERAL MOTORS CORP.
