Power Seat Control Module: Diagrams

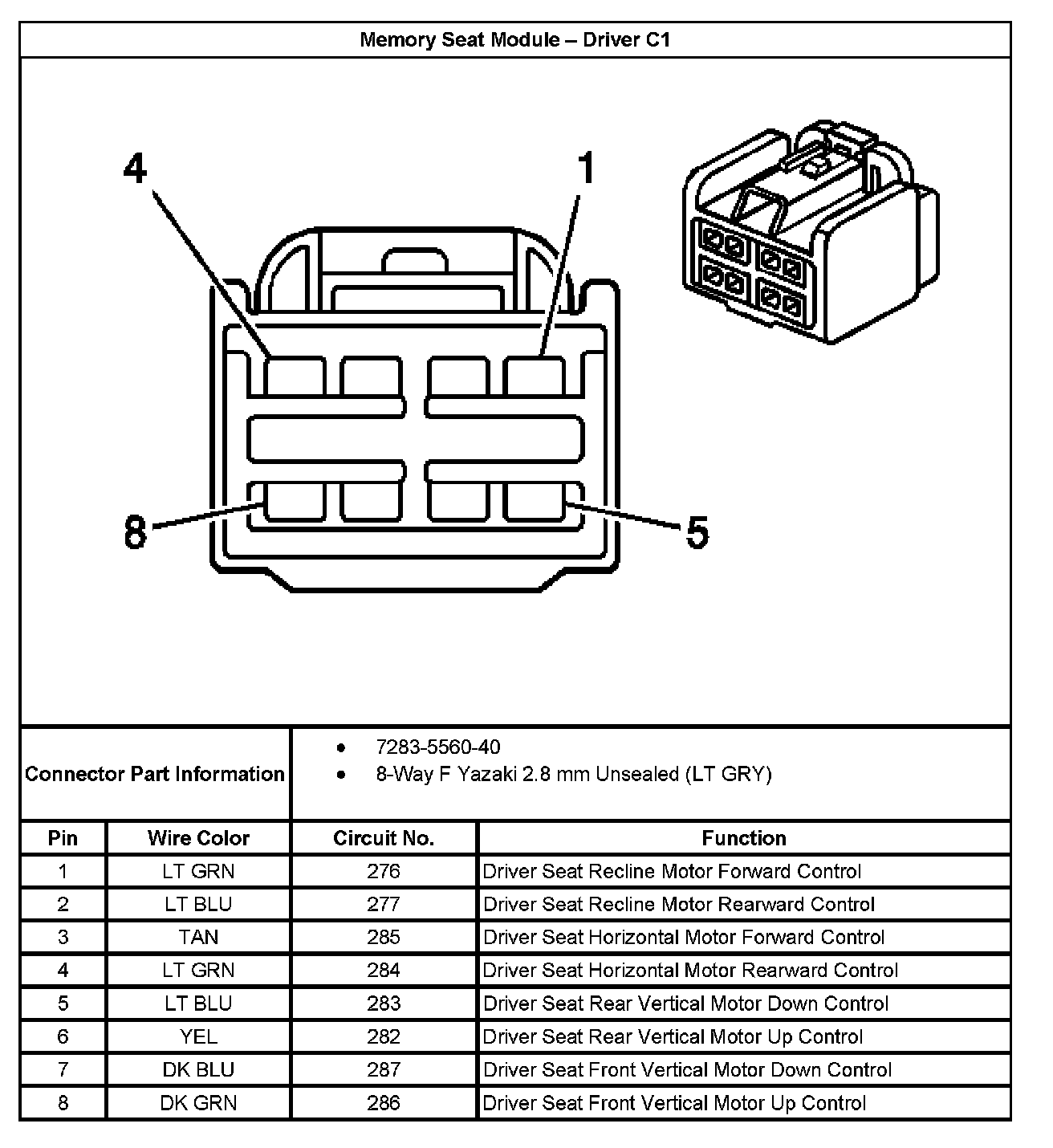

Memory Seat Module - Driver C1:

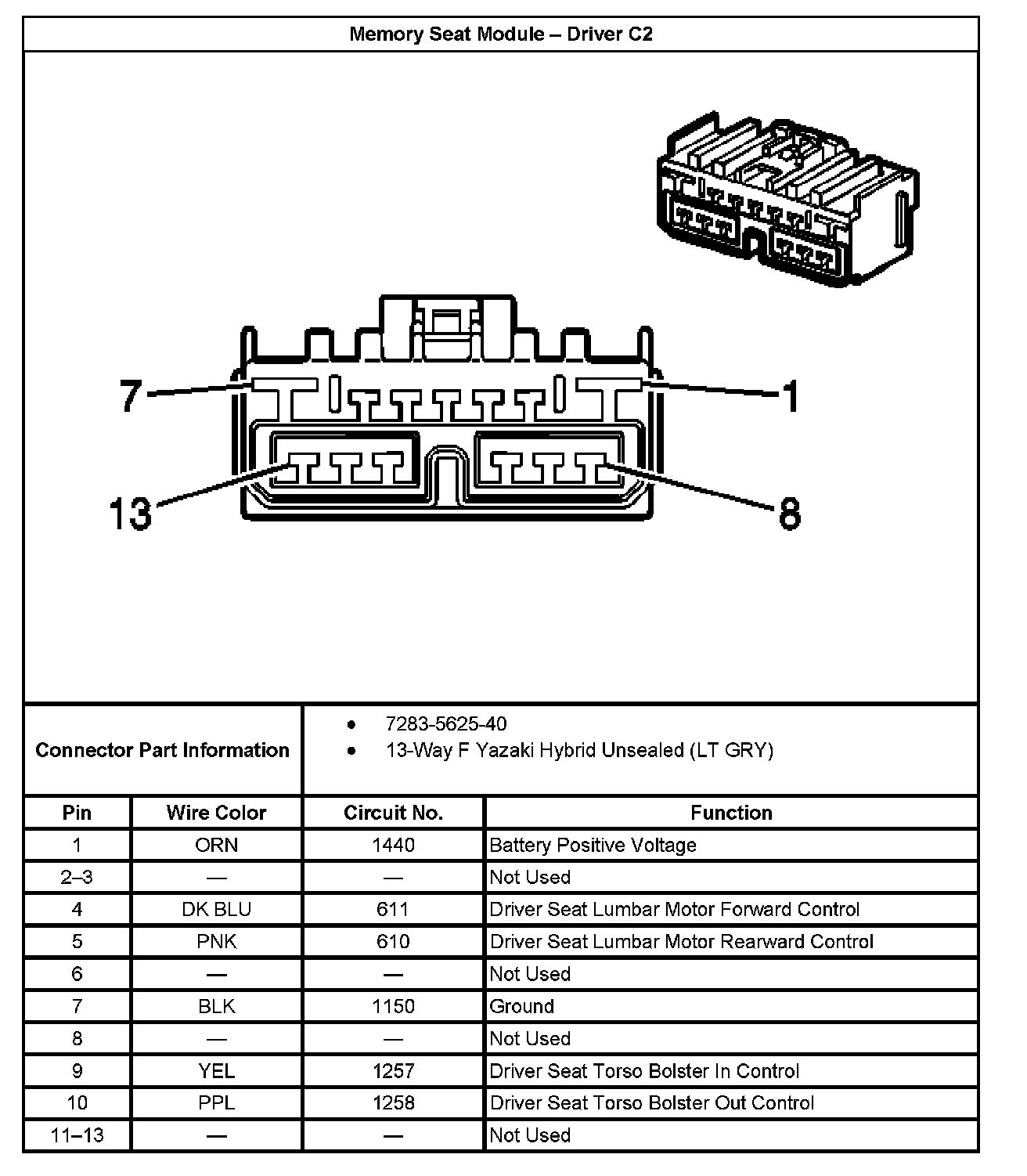

Memory Seat Module - Driver C2:

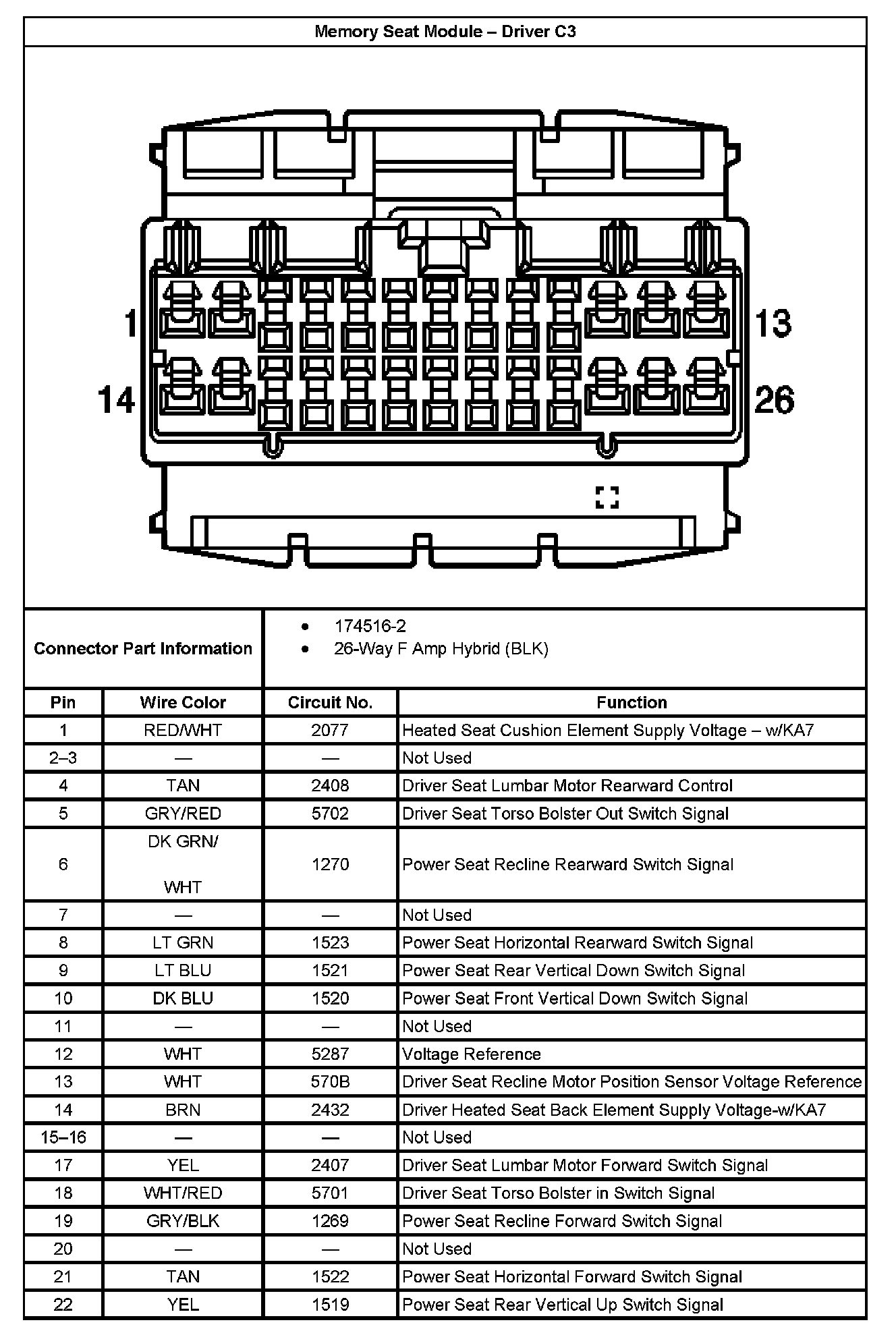

Memory Seat Module - Driver C3 Part 1:



Memory Seat Module - Driver C3 Part 2:

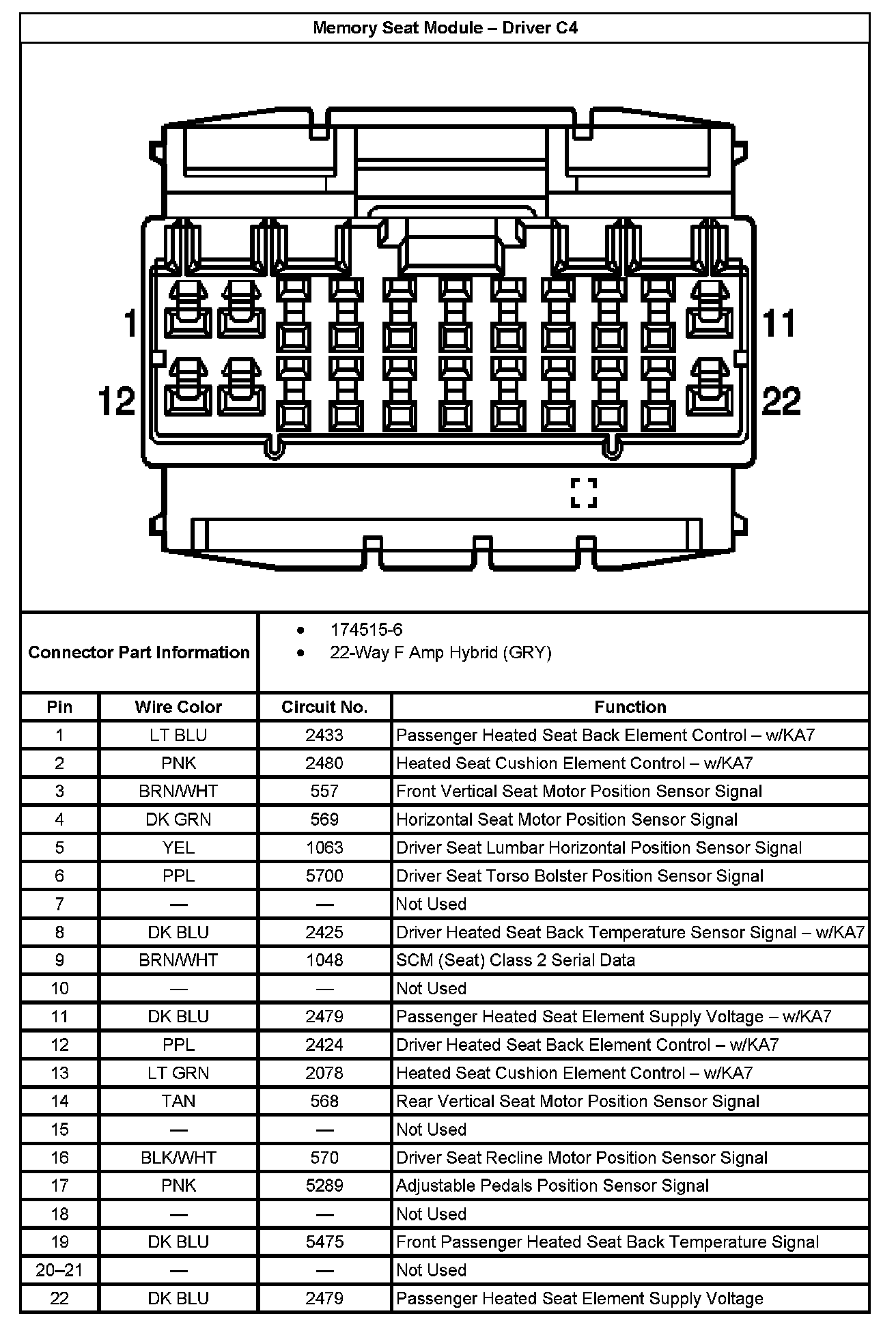

Memory Seat Module - Driver C4:
