Door Lock/Indicator Schematics

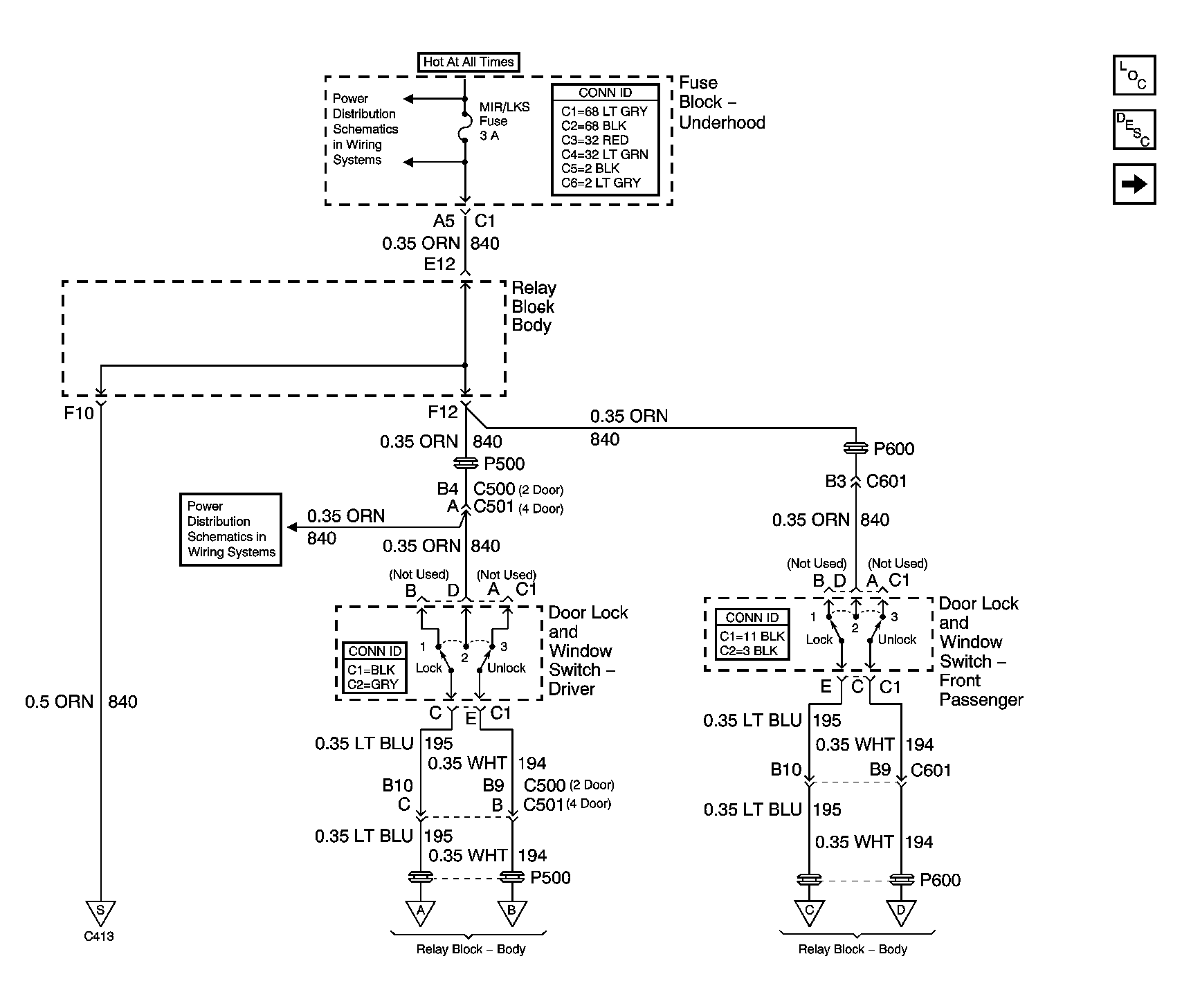

Fig 1: Door Lock Switch Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Endgate Lock Cylinder Switch Inputs Schematic - Utility

Courtesy of GENERAL MOTORS CORP.

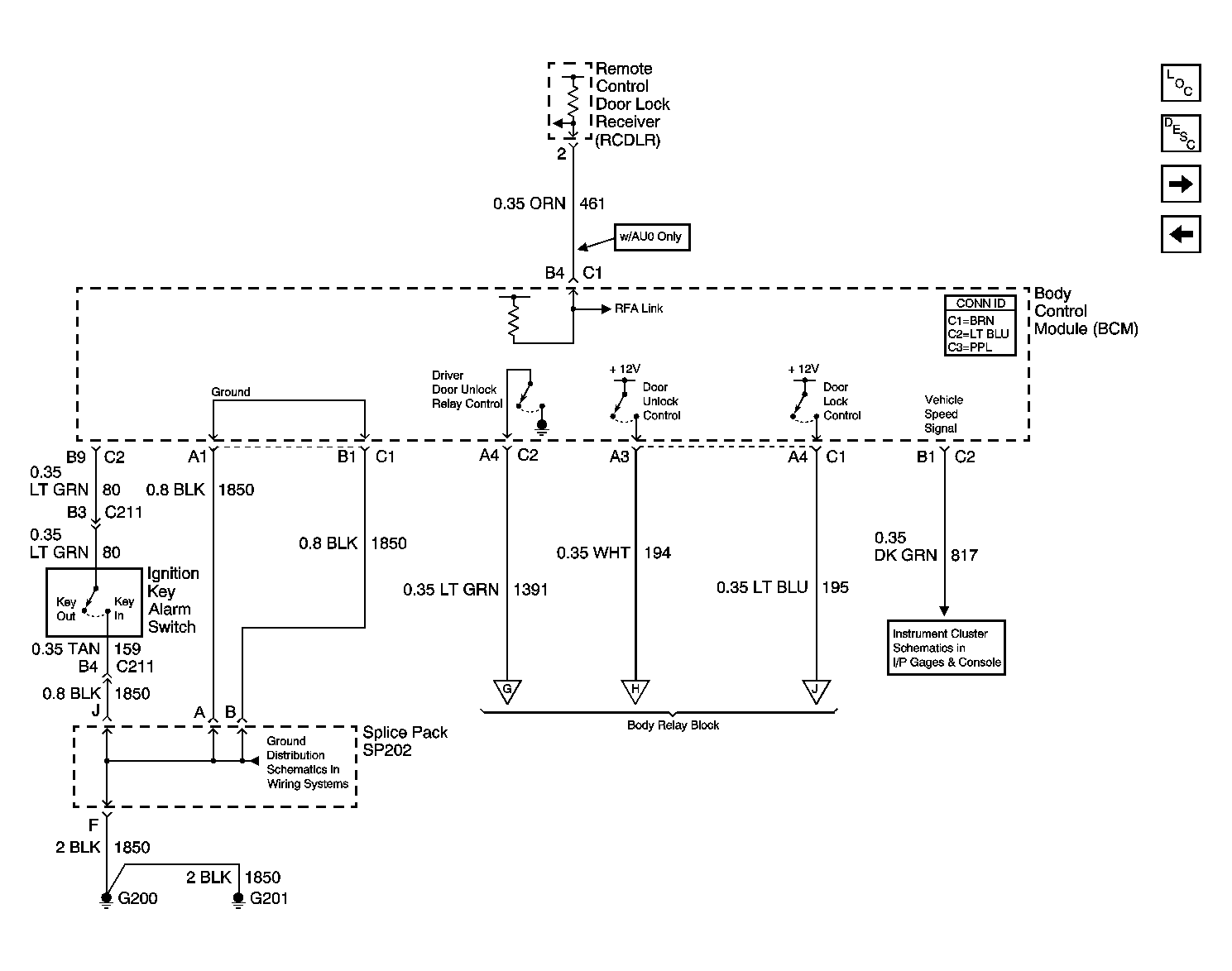

Fig 3: BCM Inputs and Outputs Schematic

Courtesy of GENERAL MOTORS CORP.

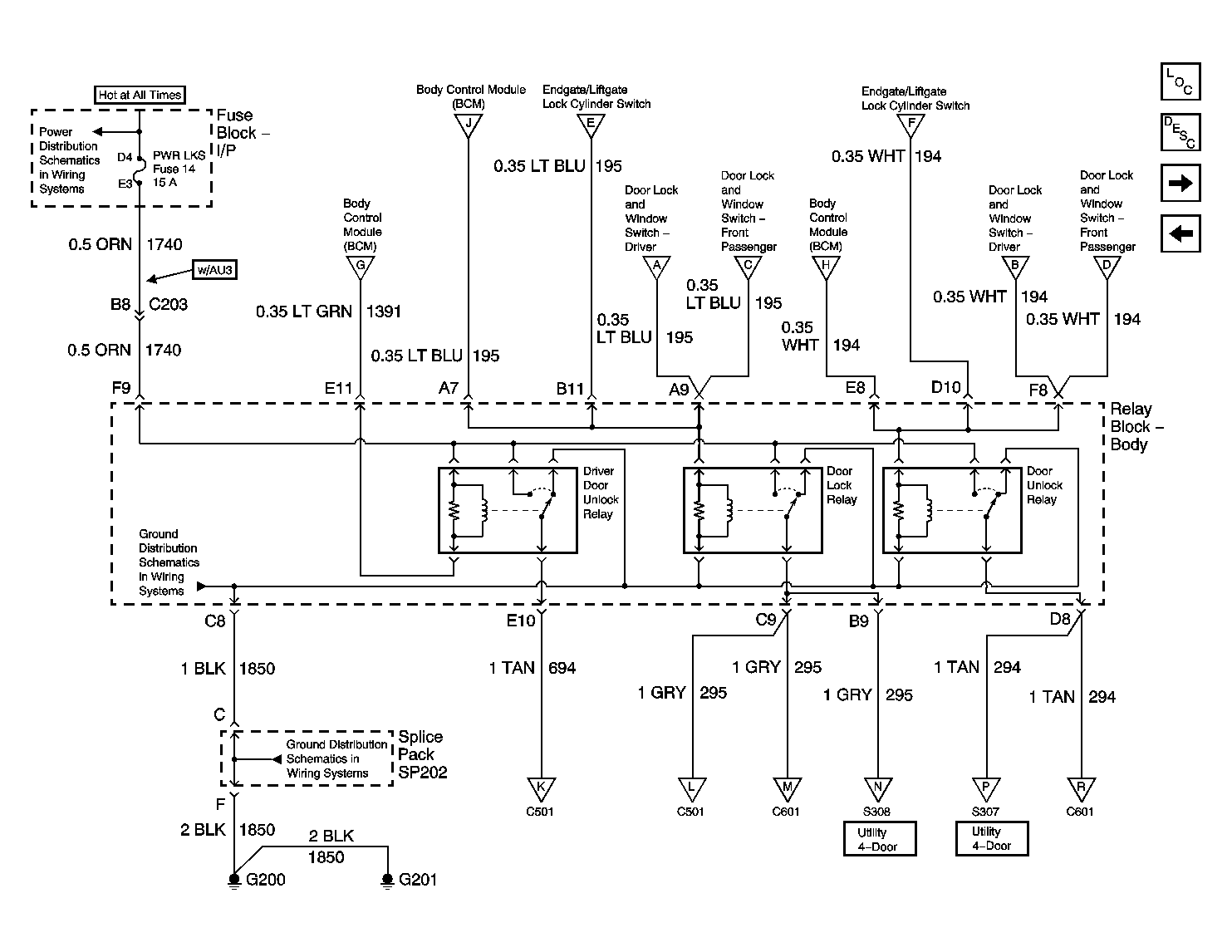

Fig 4: Relay Control Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.
