Control Module: Locations

Transfer Case Control Component Views

Transfer Case Shift Control Switch

Transfer Case Shift Control Switch:

1 - Transfer Case Shift Control Switch
2 - Instrument Panel Switch and Deflector Housing

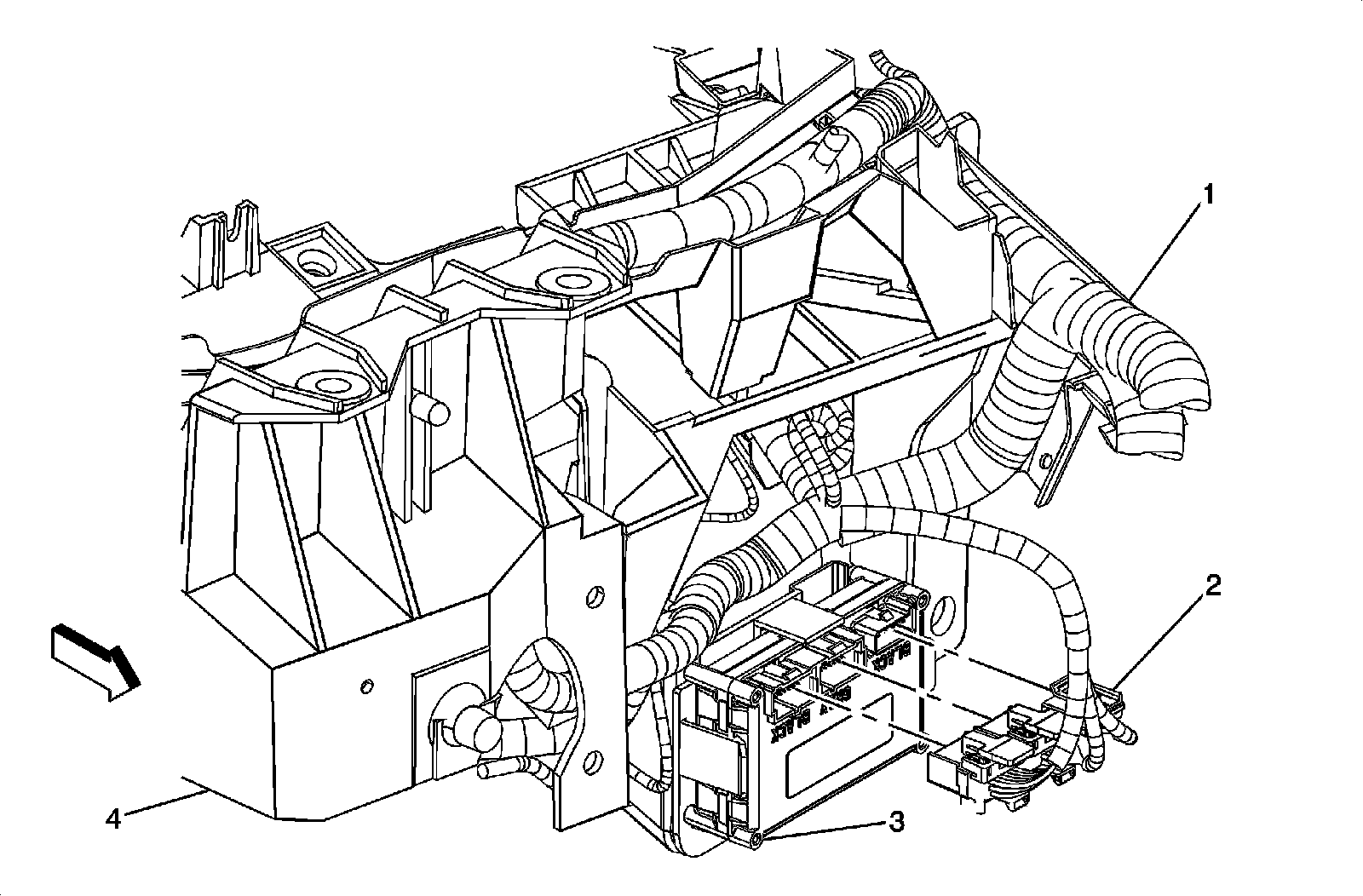

Transfer Case Shift Control Module

In The Left Side Of The I/P Behind The Headlamp Switch:

1 - I/P Harness
2 - Transfer Case Shift Control Module Connectors
3 - Transfer Case Shift Control Module
4 - Instrument Panel

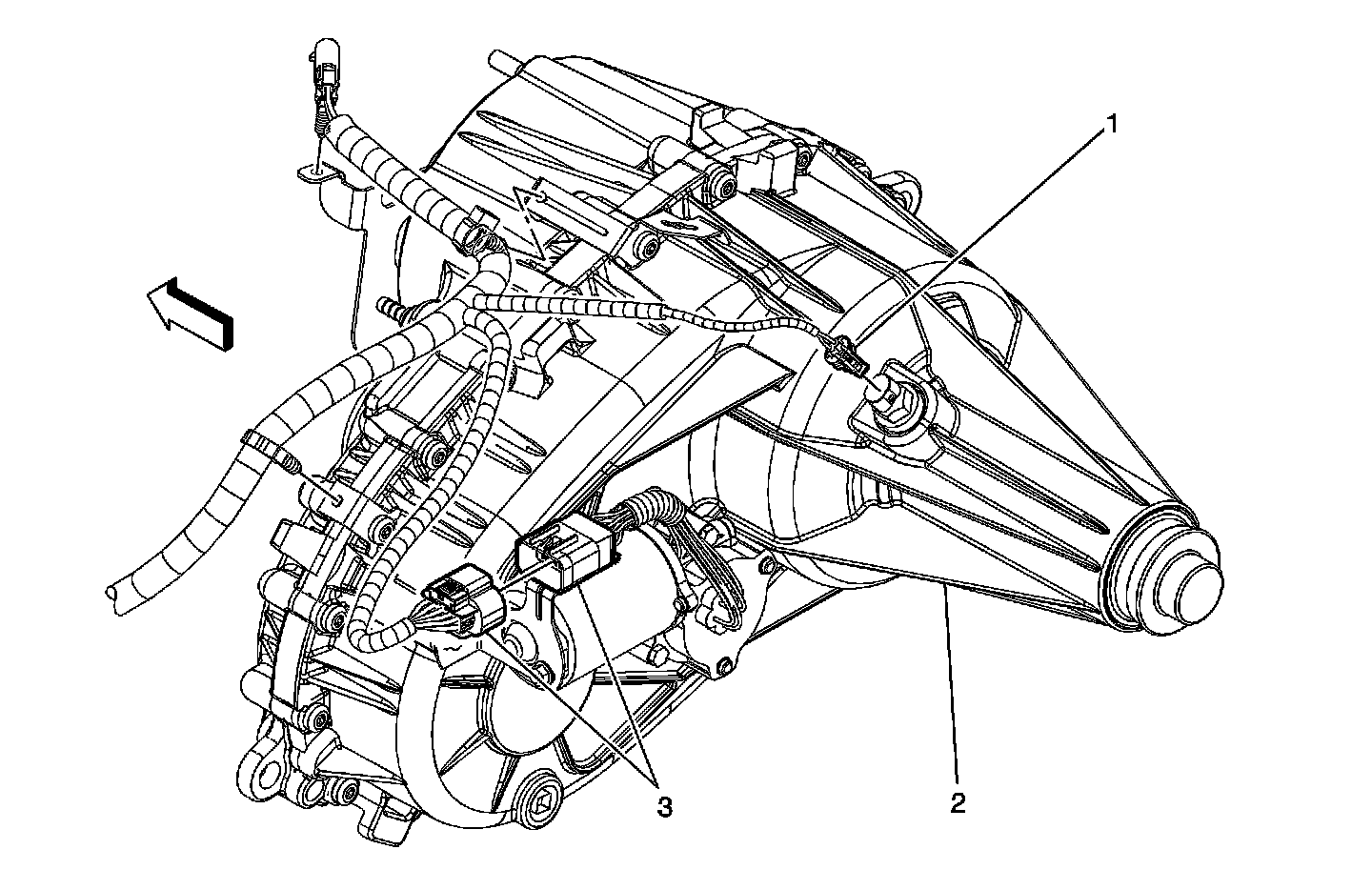

Transfer Case - BW 4482 - NR4





1 - Vehicle Speed Sensor (VSS) Connector
2 - Transfer Case
3 - Encoder Motor Connector
