LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
GMC
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

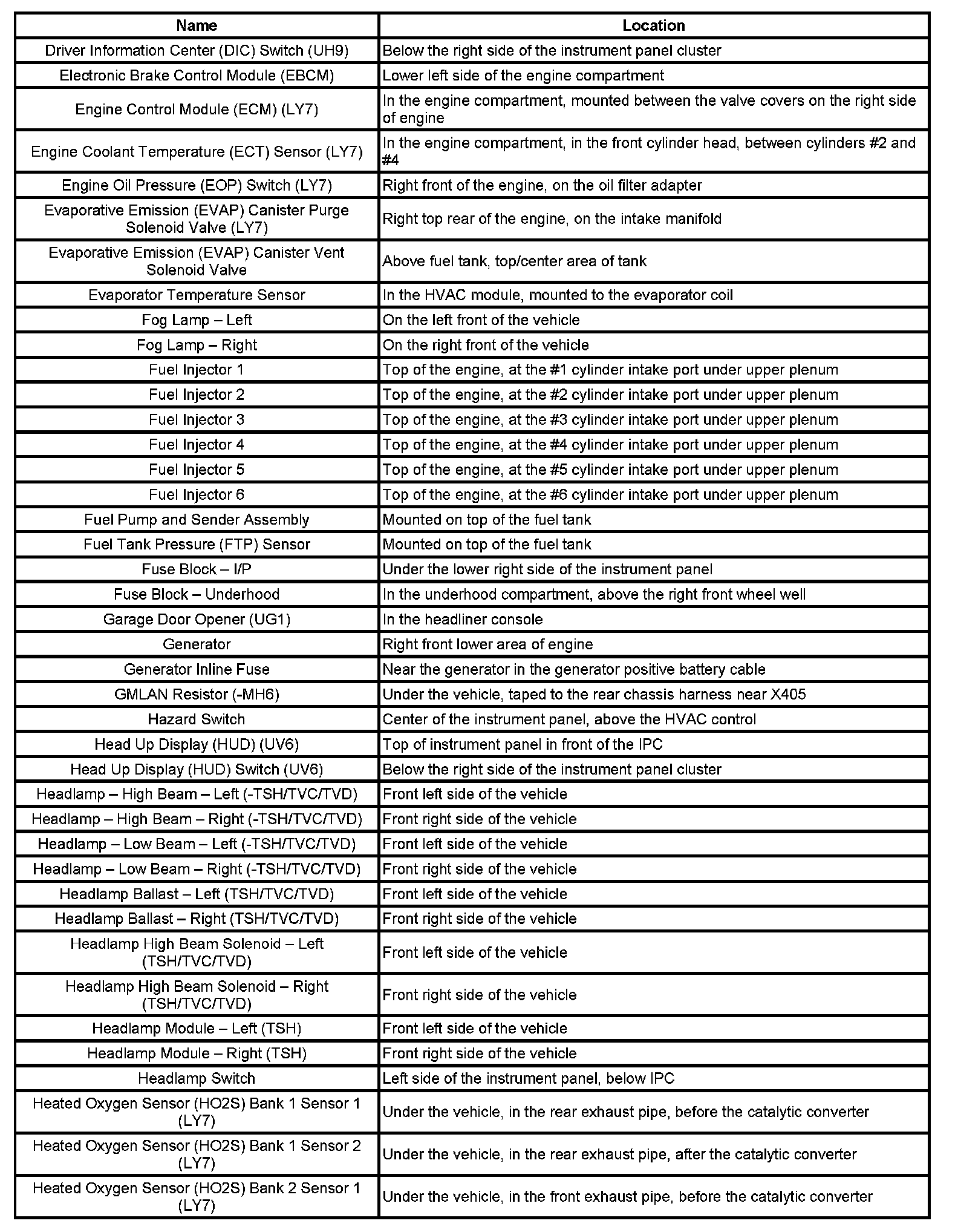

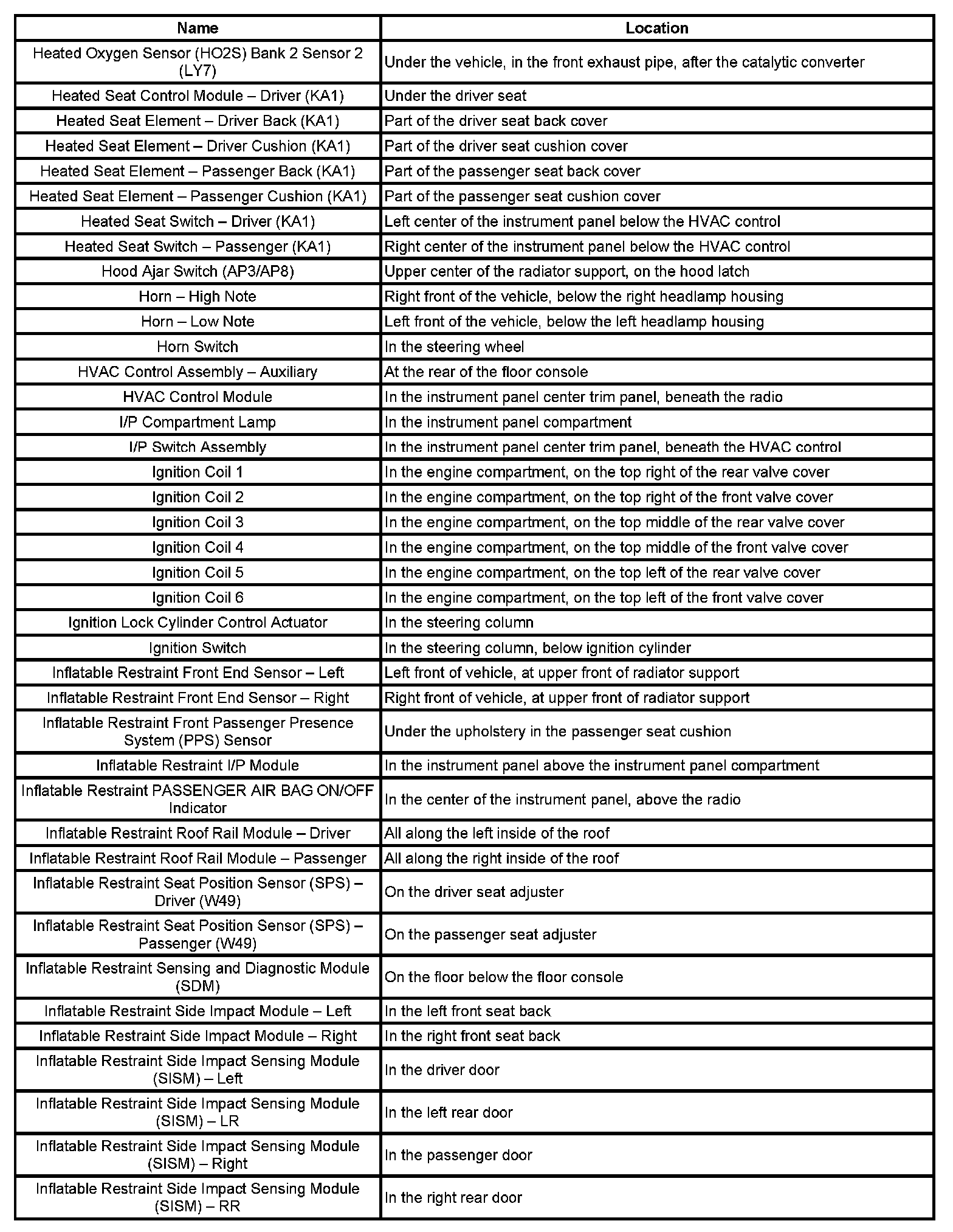

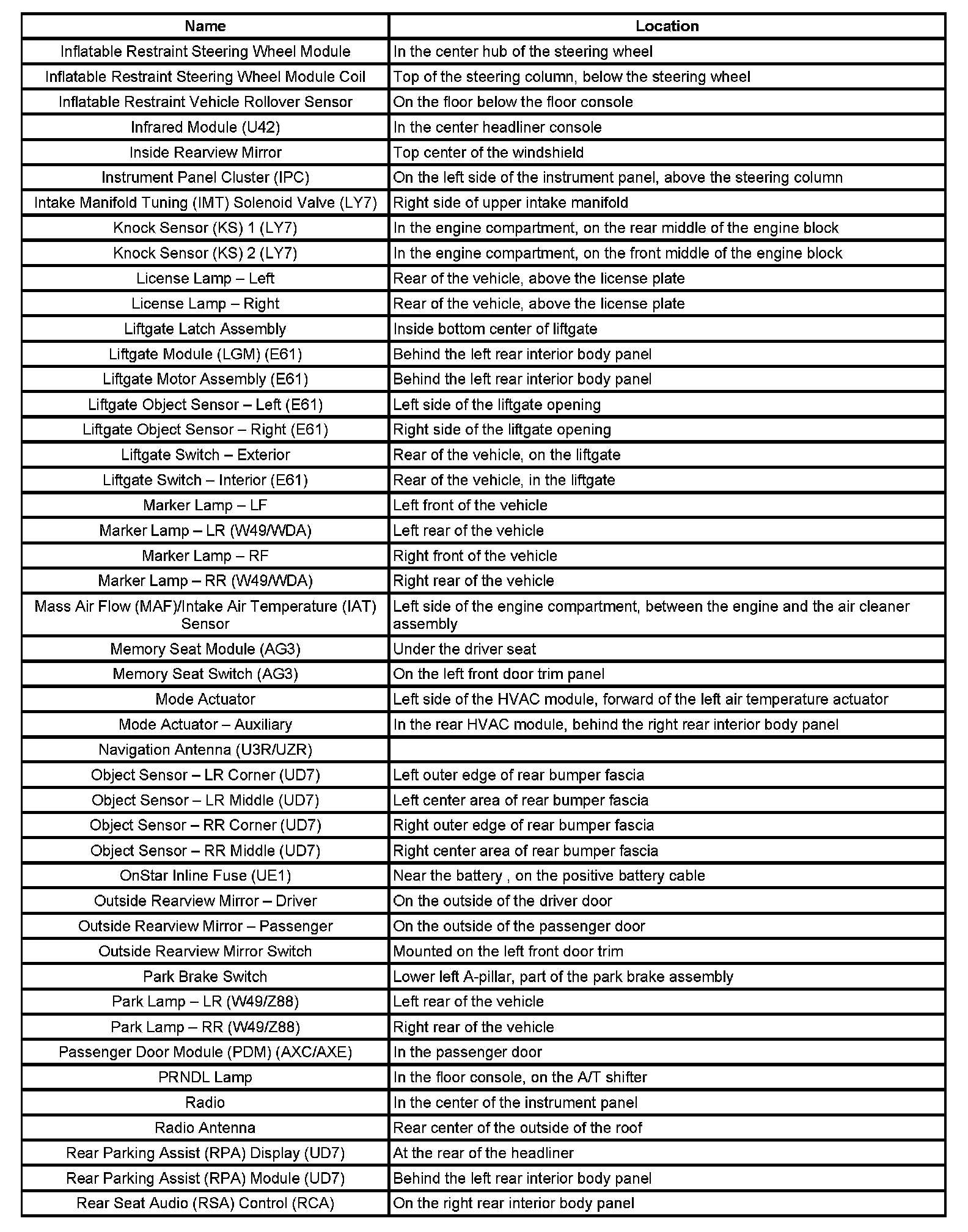

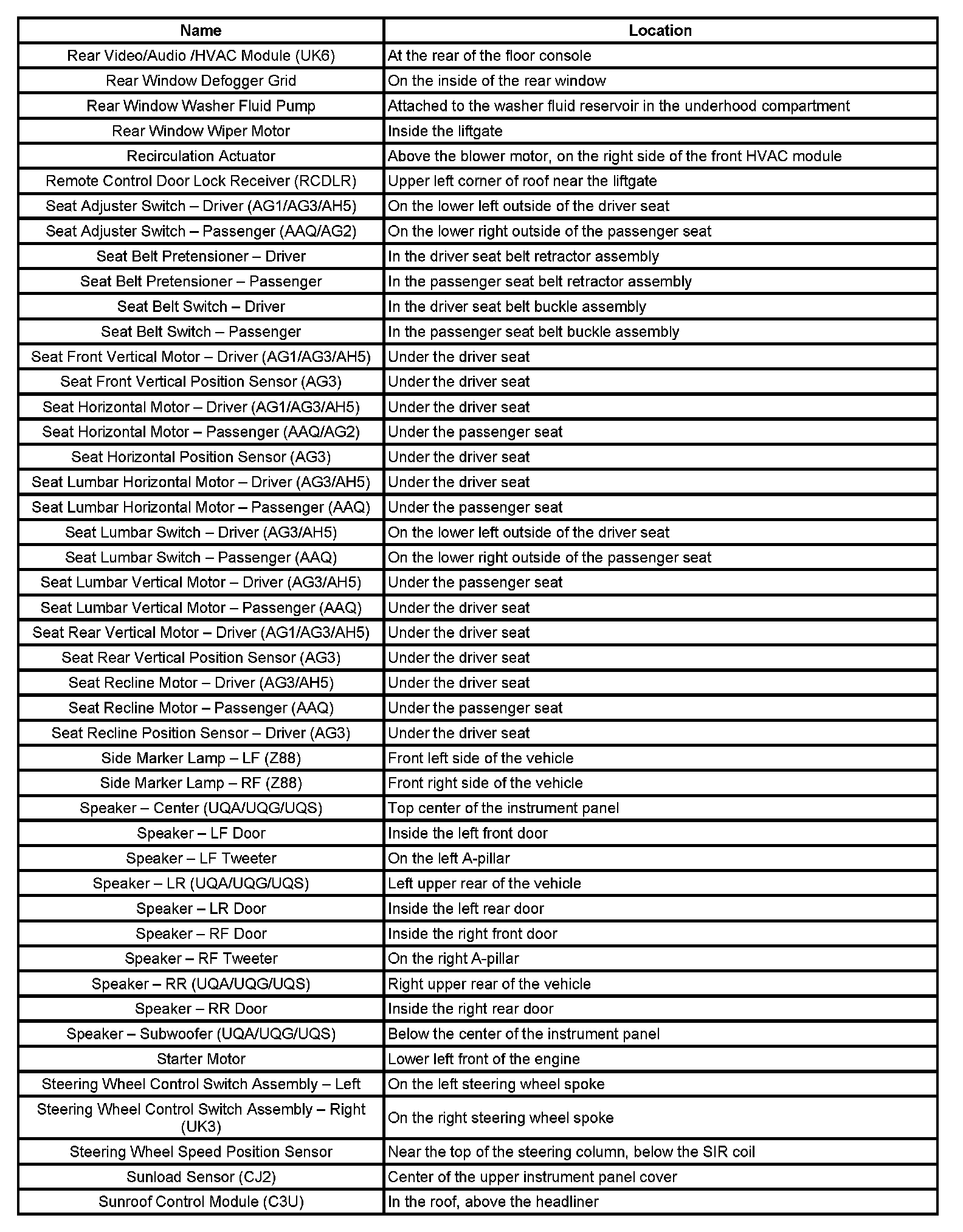

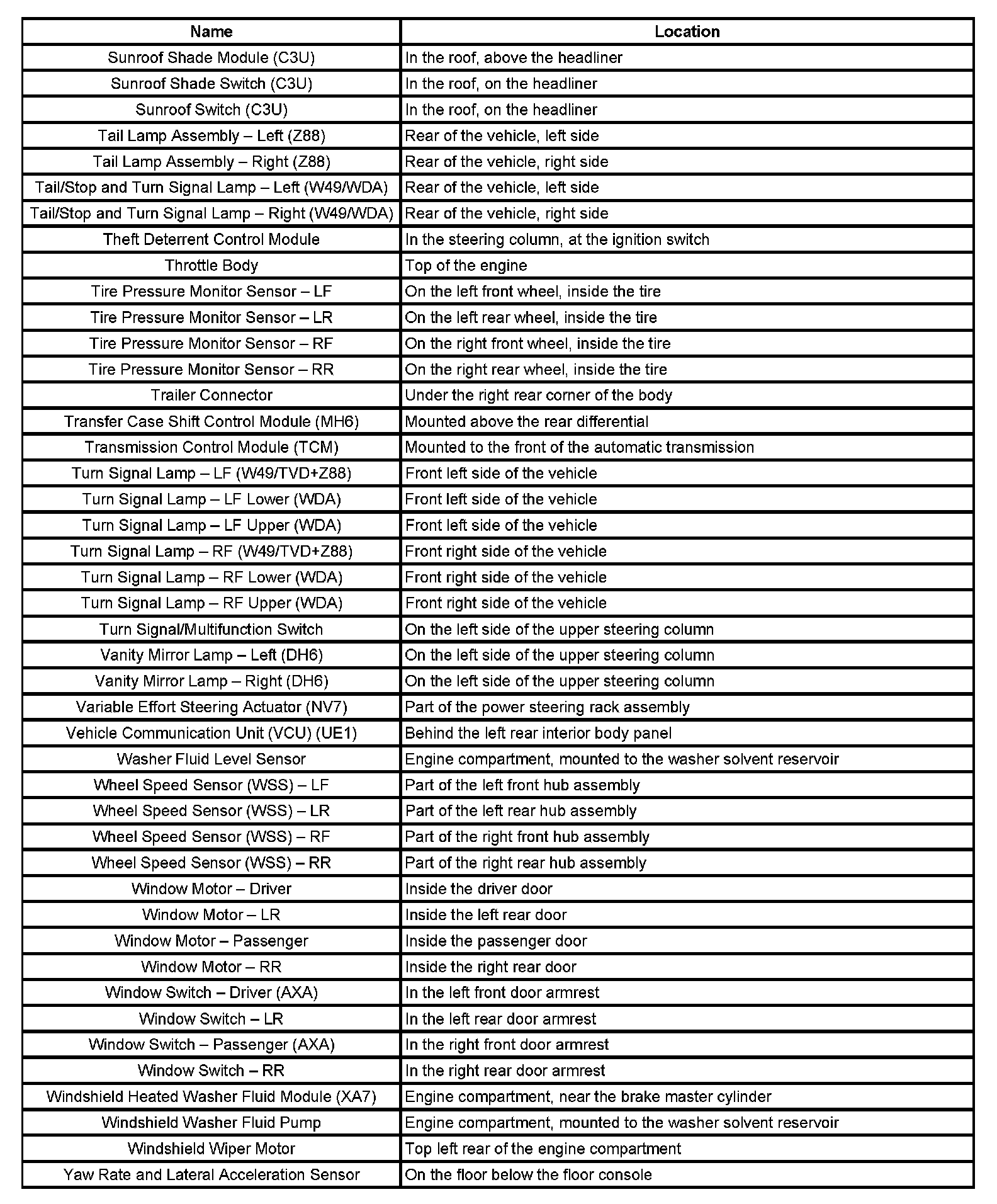

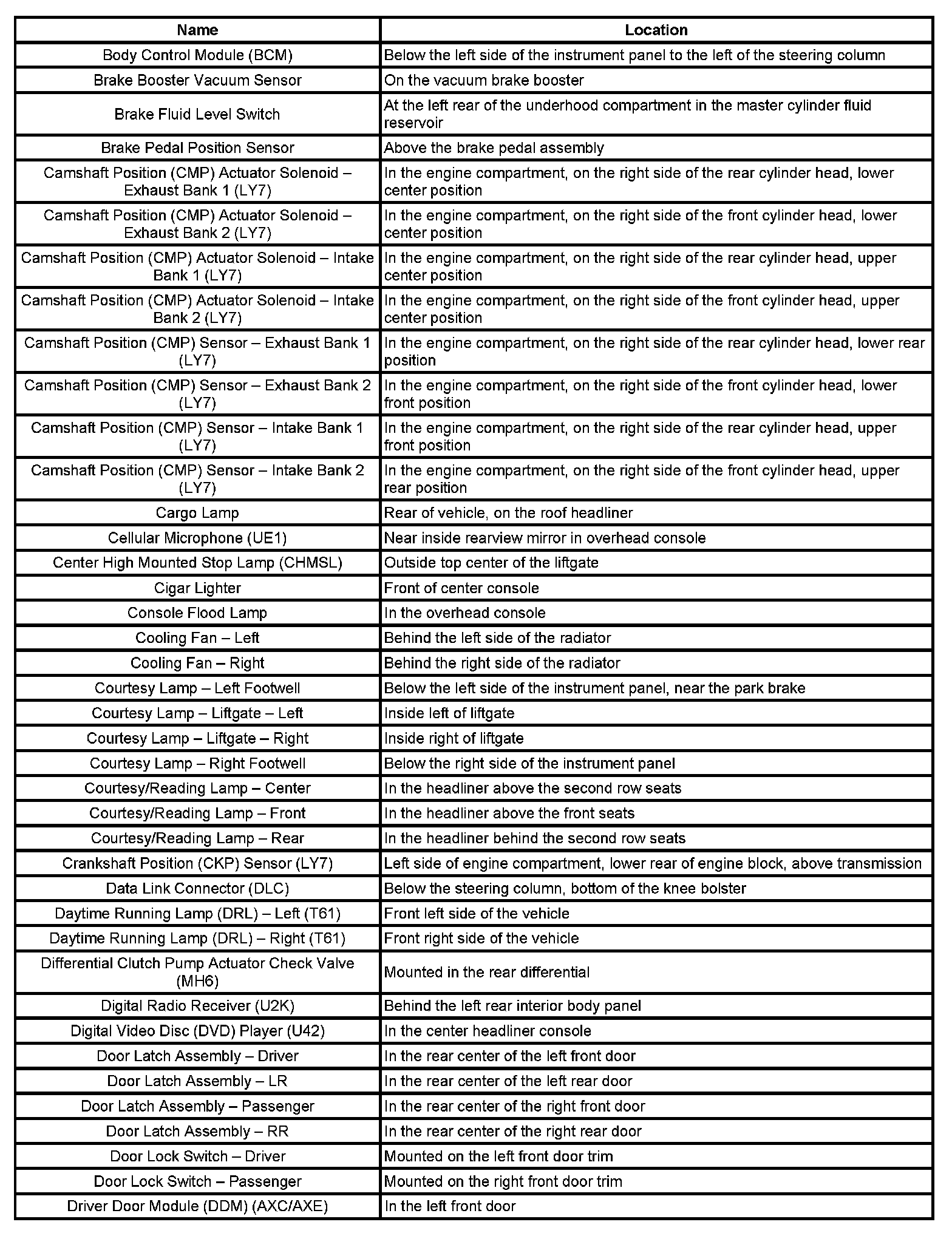

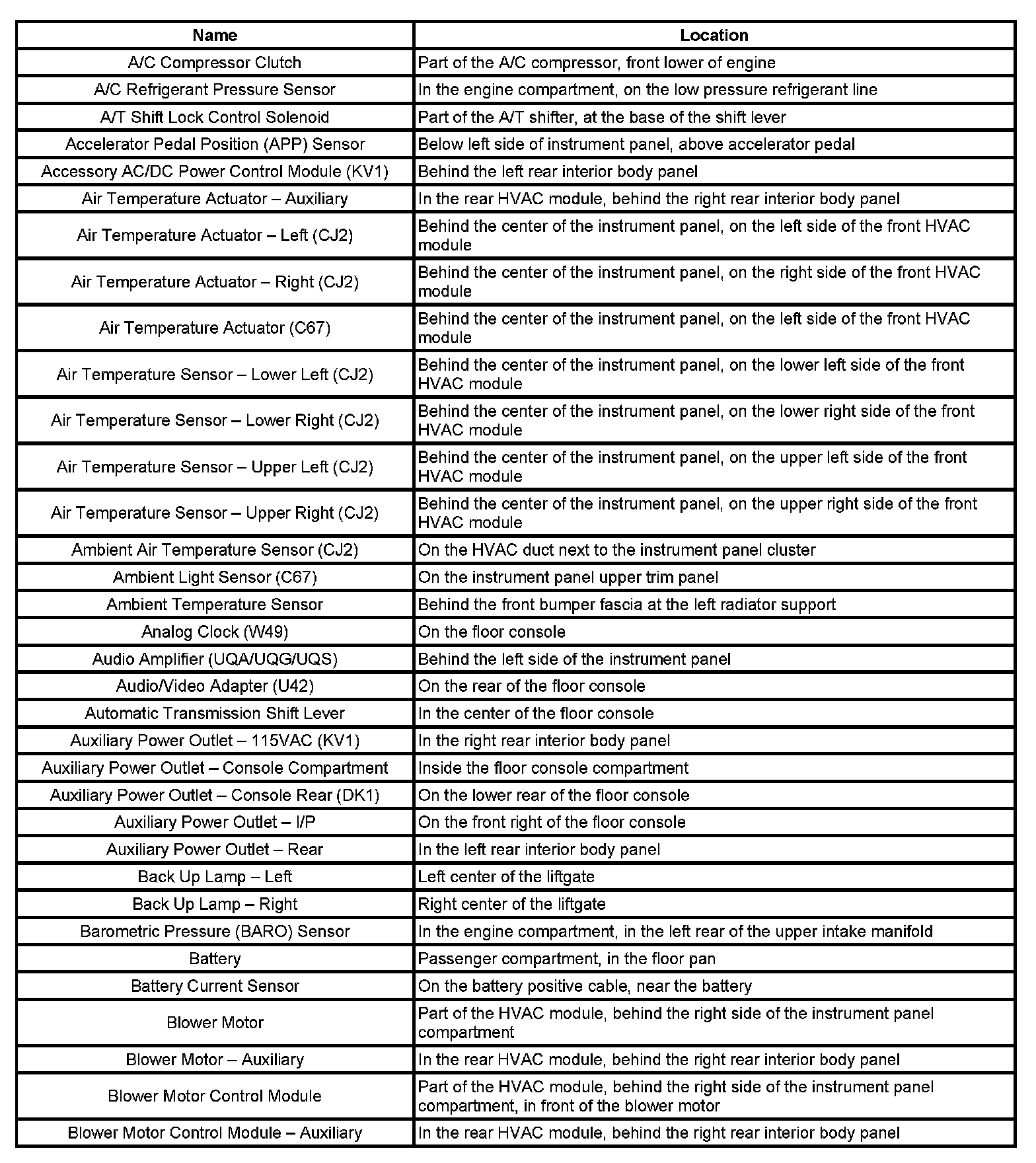

Components
A/C Co - Bl:
Bo - Dr:
Dr - He:
He - In:
In - Re:
Re - Su:
Su - Ya:
