Electrical Diagrams

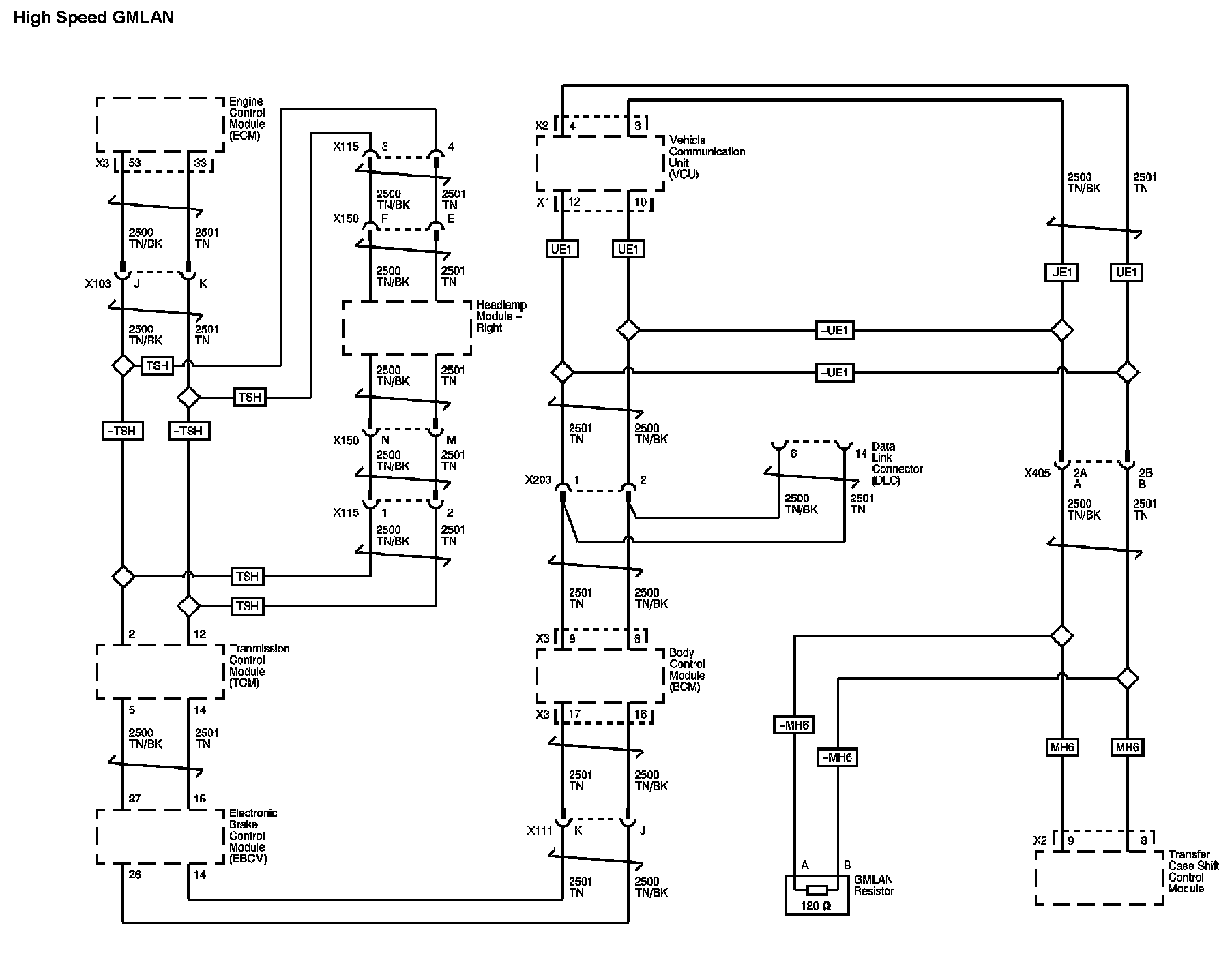

Data Communication Diagram 1:

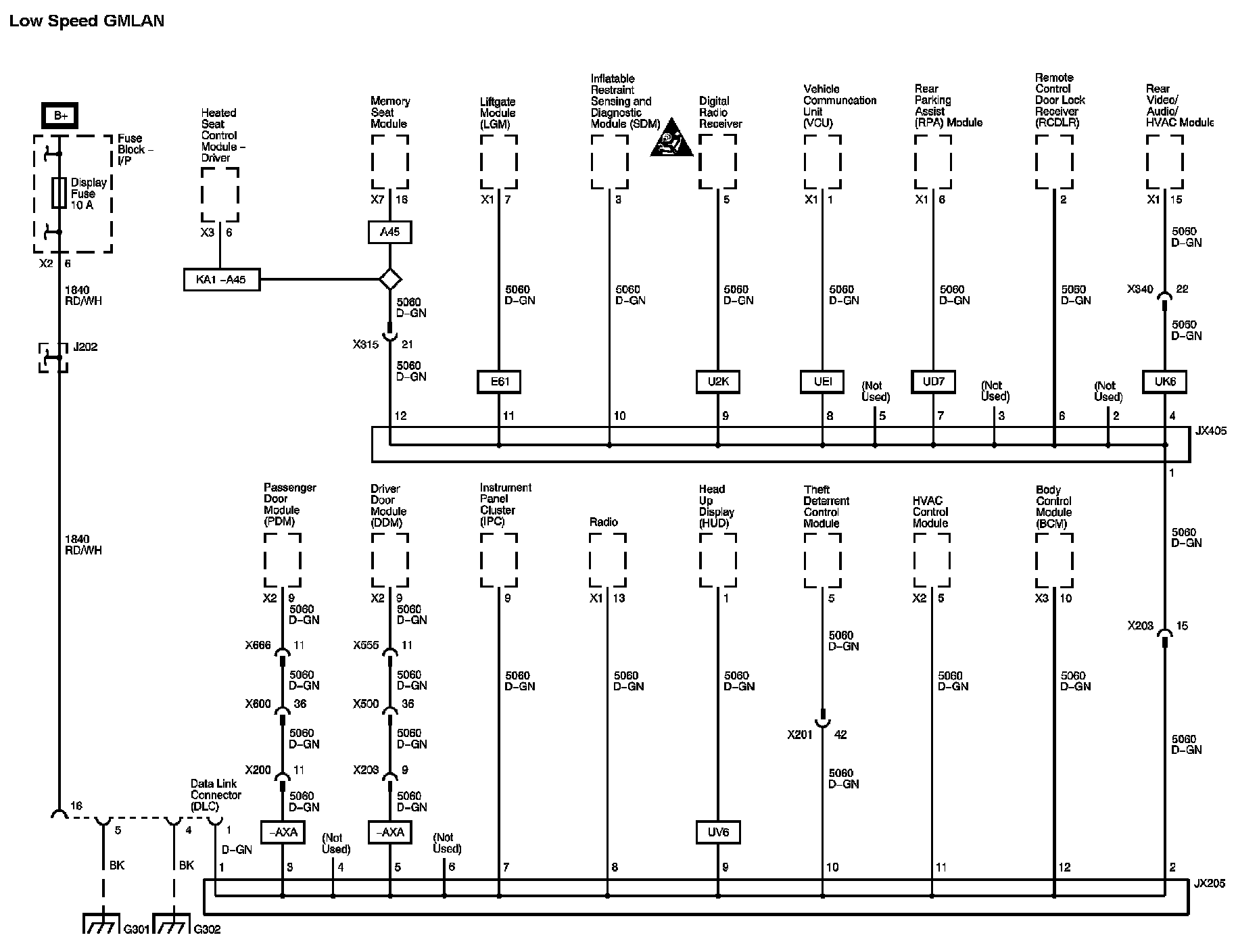

Data Communication Diagram 2:

Data Communication Diagram 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations Locations
