Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

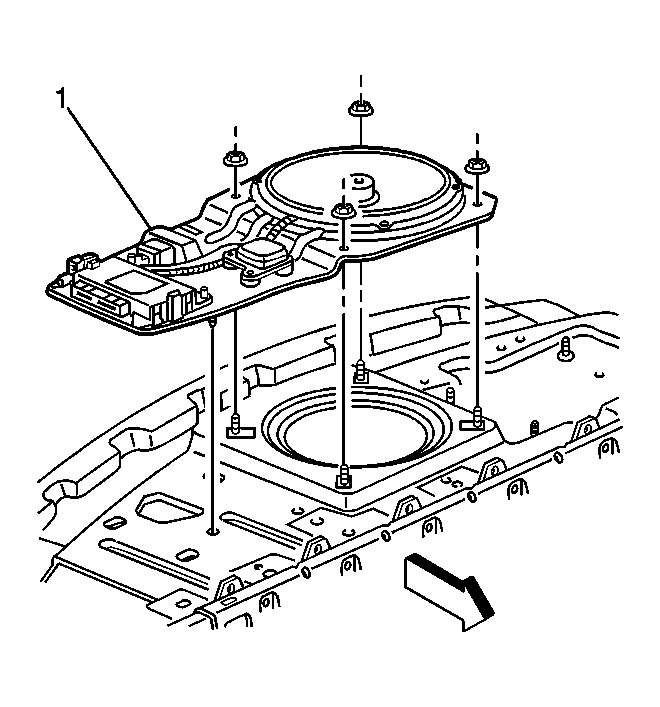

Fig 1: Removing & Installing Rear Speaker

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the rear speaker to the rear electrical carrier.
Reinstall the nuts securing the speaker to the electrical carrier (1).
Tighten: Tighten the fasteners to 9 N.m (80 lb in).
Connect the electrical connector.
Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .
