Power Seat Switch

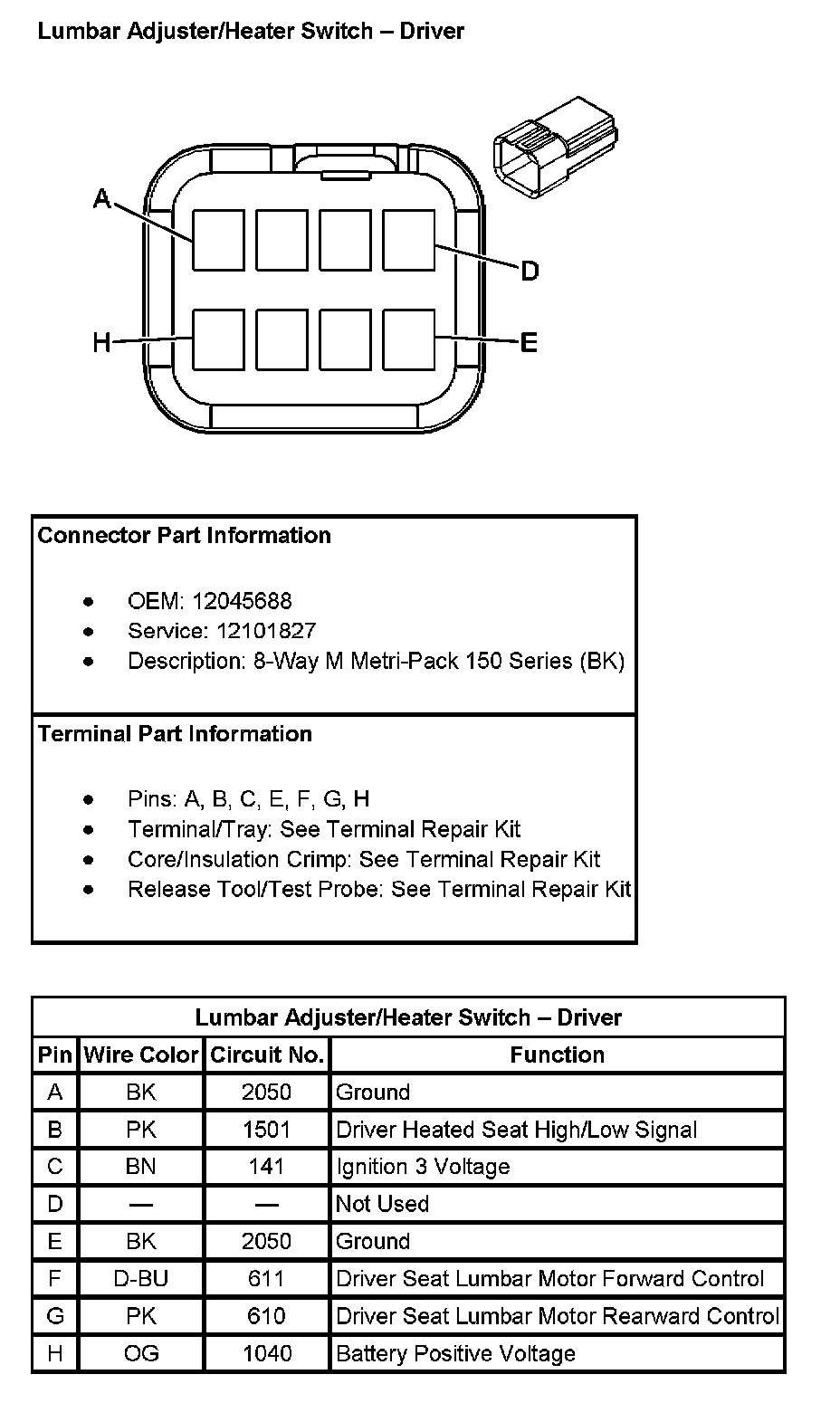

Lumbar Adjuster/Heater Switch - Driver:

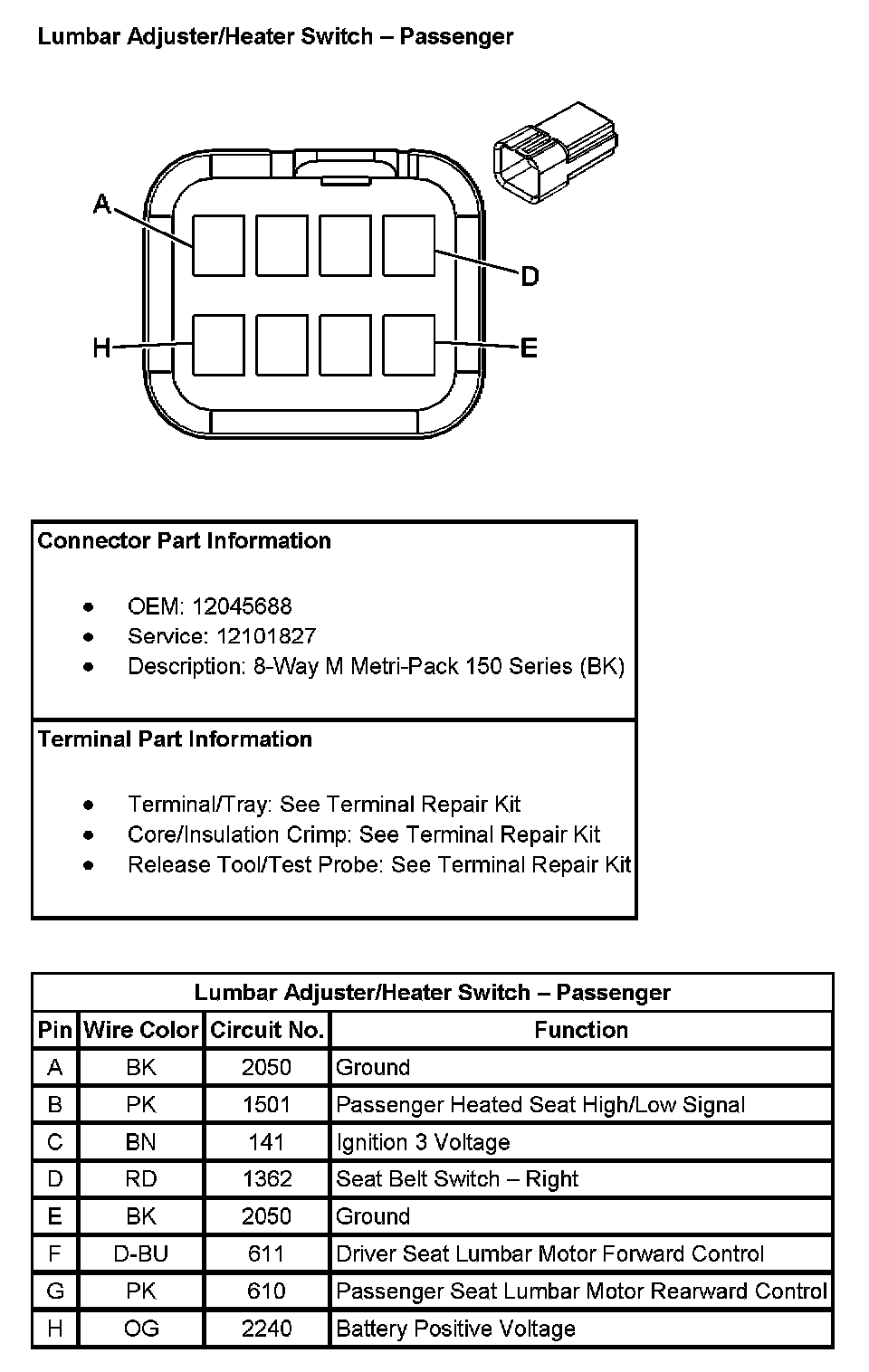

Lumbar Adjuster/Heater Switch - Passenger:

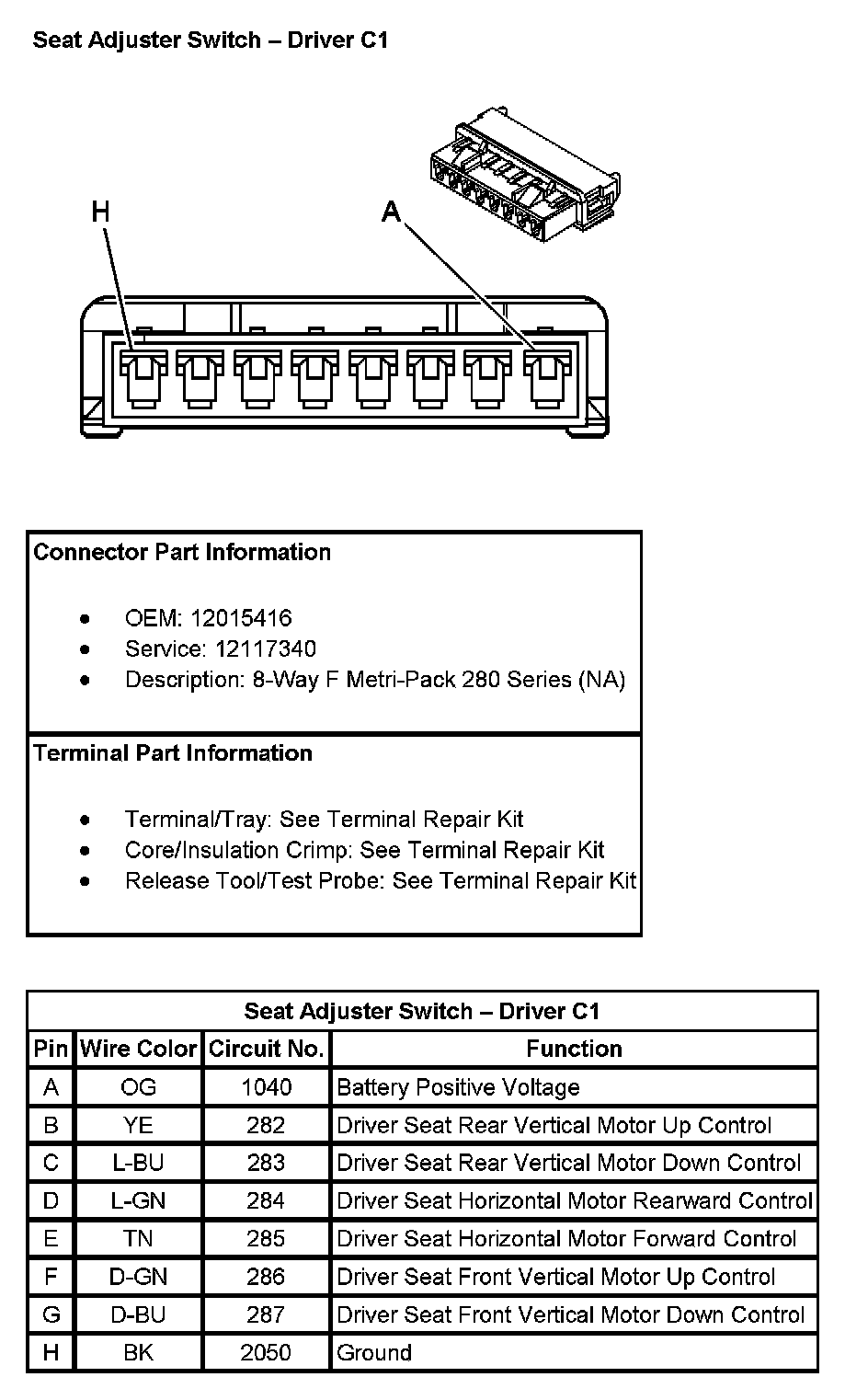

Seat Adjuster Switch - Driver C1:



Seat Adjuster Switch - Driver C2:

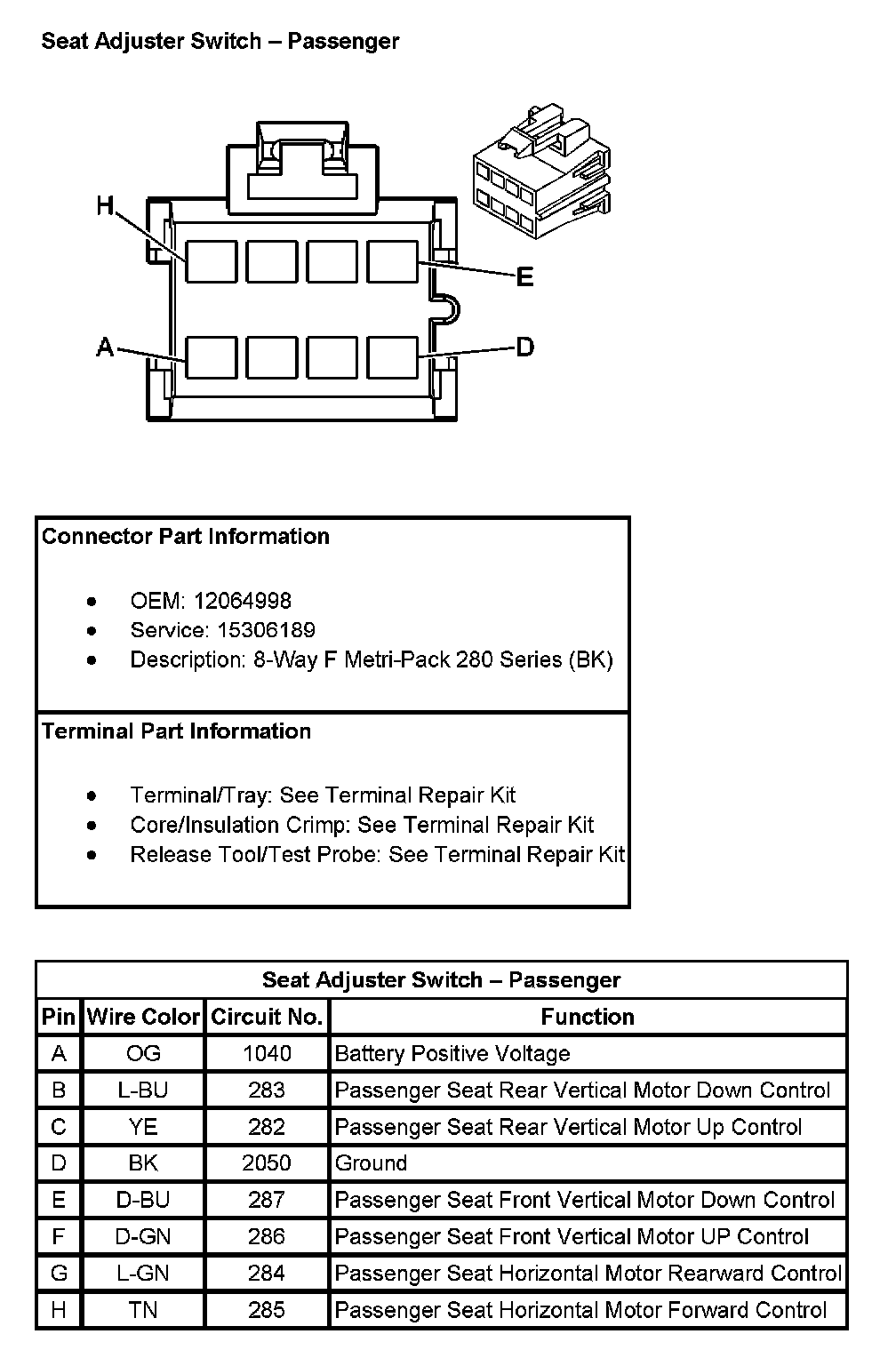

Seat Adjuster Switch - Passenger:
