Generator Bracket Replacement



Generator Bracket Replacement (4.3L)

Removal Procedure




1. Remove the generator.
2. Remove the drive belt tensioner.
3. Remove the drive belt idler pulley.

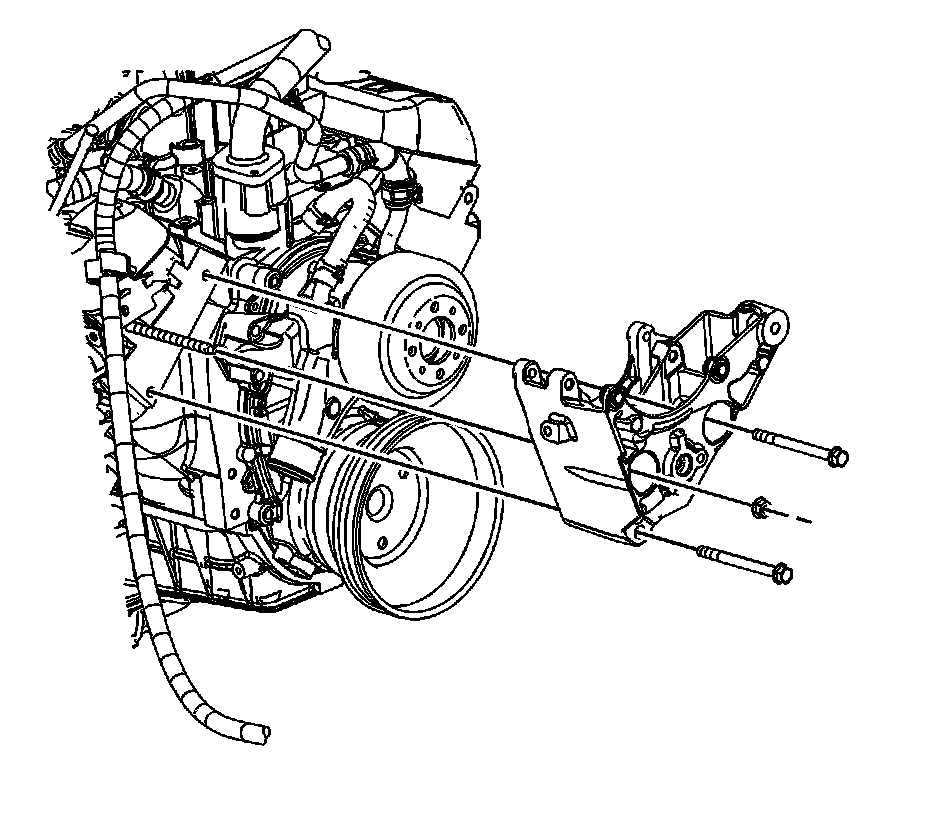

4. Remove the generator bracket bolts and nut.
5. Remove the generator bracket.

Installation Procedure




1. Install the generator bracket onto the stud.

Notice: Refer to Fastener Notice.

2. Install the generator bracket bolts and nut.

Tighten the bolts/nut to 41 N.m (30 lb ft).

3. Install the drive belt idler pulley.
4. Install the drive belt tensioner.
5. Install the generator.
