Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor Replacement

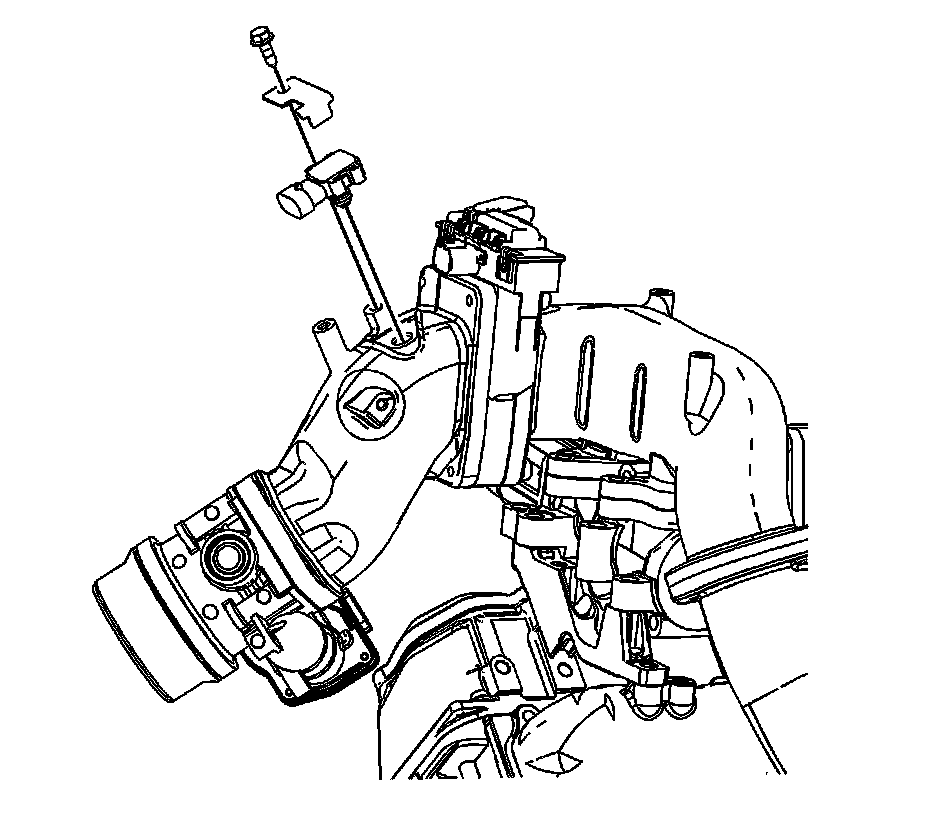

Removal Procedure




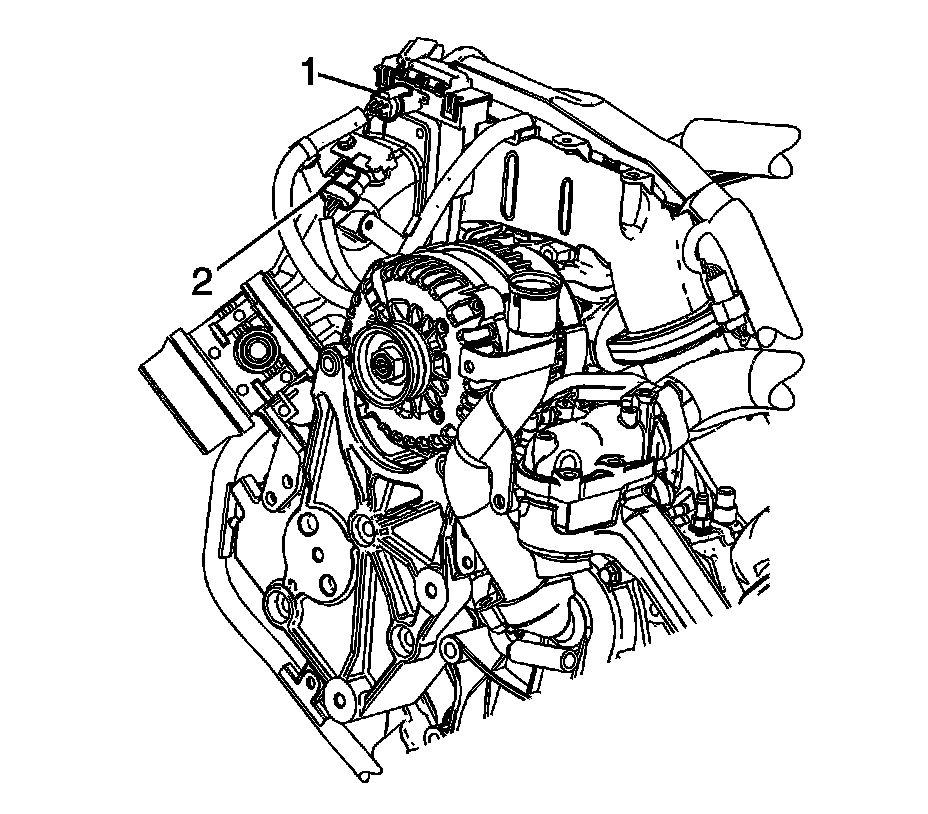

1. Disconnect the engine wiring harness electrical connector (2) from the manifold absolute pressure (MAP) sensor.




2. Remove the MAP sensor bolt.
3. Remove the MAP sensor bracket and sensor.

Installation Procedure




1. Install the MAP sensor and bracket.

Notice: Refer to Fastener Notice.

2. Install the MAP sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).




3. Connect the engine wiring harness electrical connector (2) to the MAP sensor.
