HVAC - Automatic

HVAC Component Views

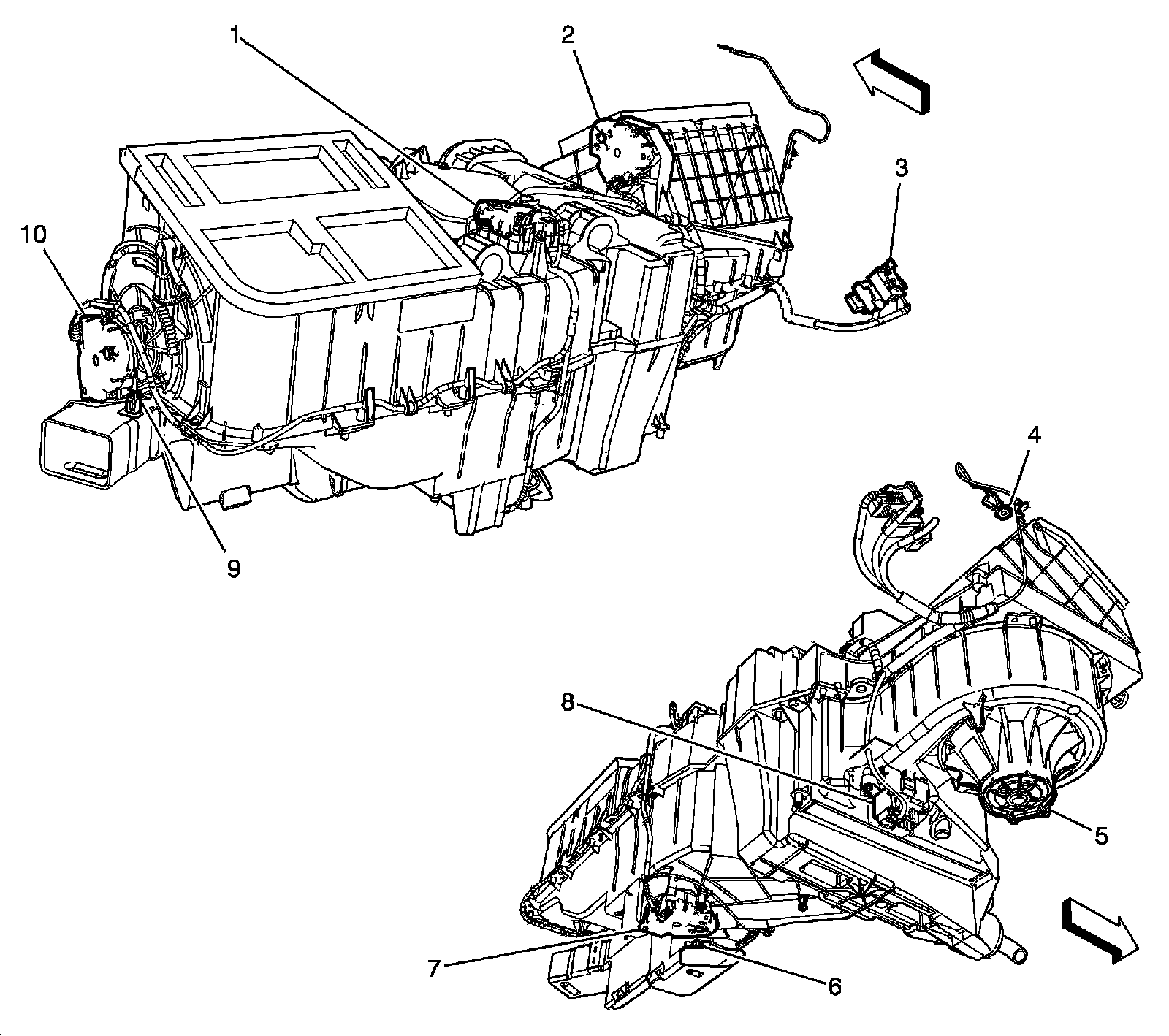

HVAC Module




1 - Air Temperature Actuator - Right
2 - Recirculation Actuator
3 - Junction Block - Right I/P C4
4 - G200
5 - Blower Motor
6 - Air Temperature Sensor - Lower Right
7 - Air Temperature Actuator - Left
8 - Blower Motor Control Module
9 - Air Temperature Sensor - Lower Left
10 - Mode Actuator
