Air Bag Control Module: Locations

SIR Component Views

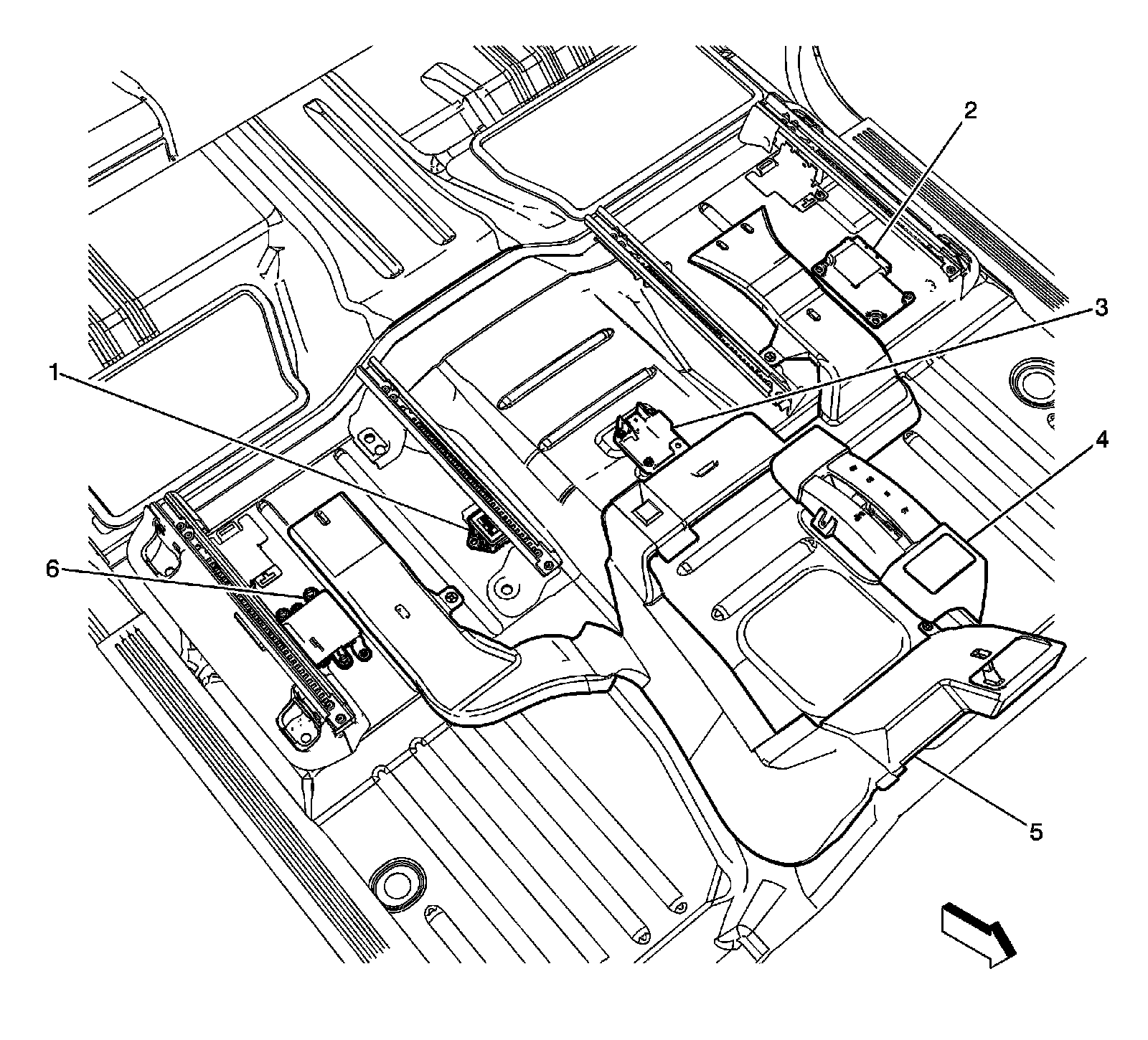

Under the Front Seats




1 - Yaw Rate and Lateral Acceleration Sensor (JL4)
2 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
3 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
4 - Shifter Housing
5 - Rear HVAC Outlet Duct
6 - Rear Object Sensor Control Module (UD7)
