Allison - Automatic Transmission

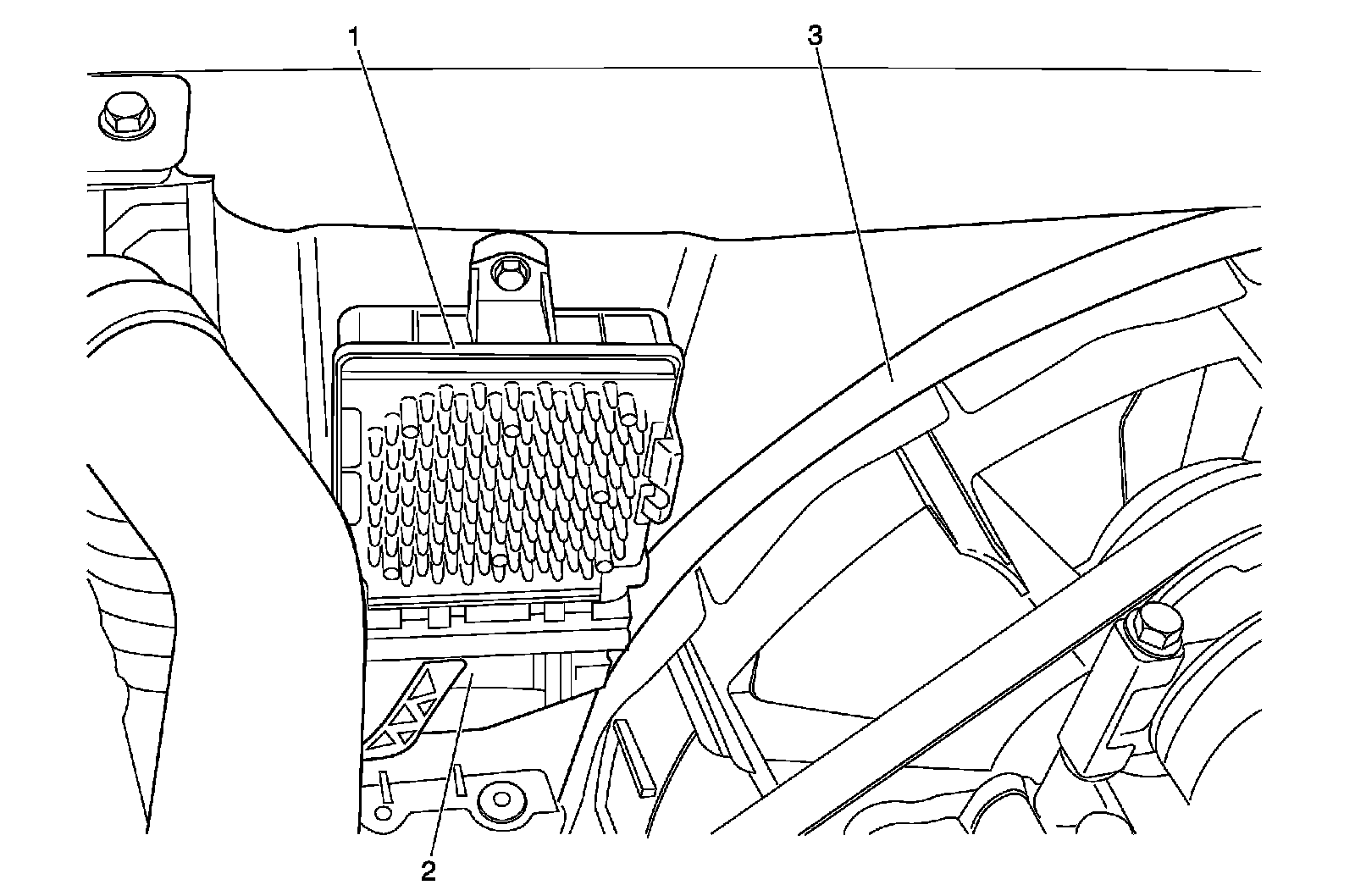

Automatic Transmission Electronic Component Views

Transmission Control Module (MW7):





1 - Transmission Control Module
2 - Transmission Control Module Connector
3 - Radiator Fan Shroud
