Timing Component Alignment Marks: Locations

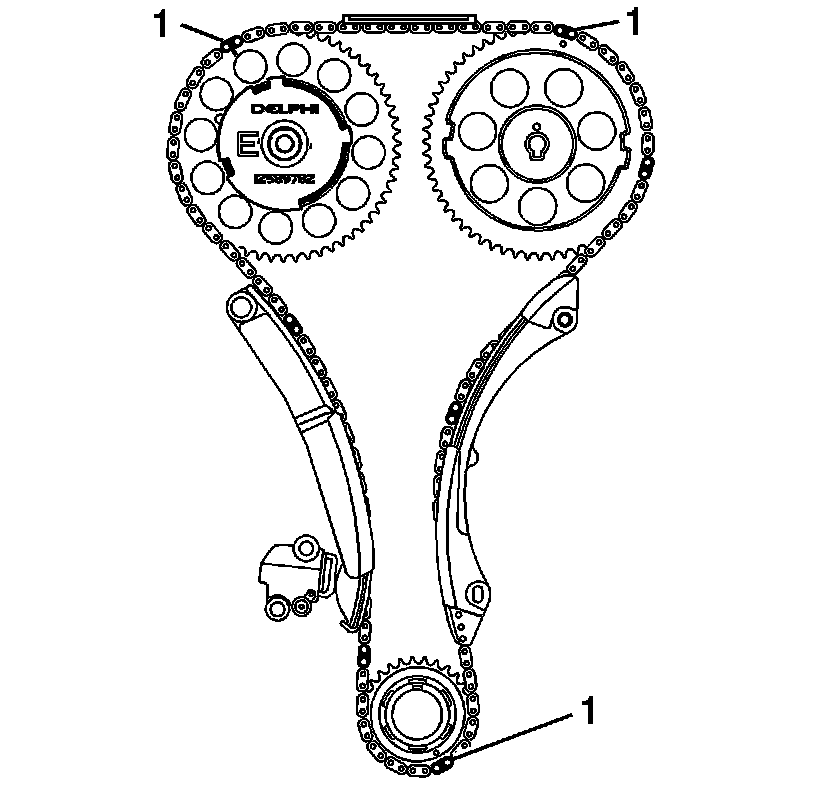

^ The dark links (1) on the chain should be aligned with marks on sprockets as shown.
