Electronic Brake Control Module: Diagrams



Component Connector End Views

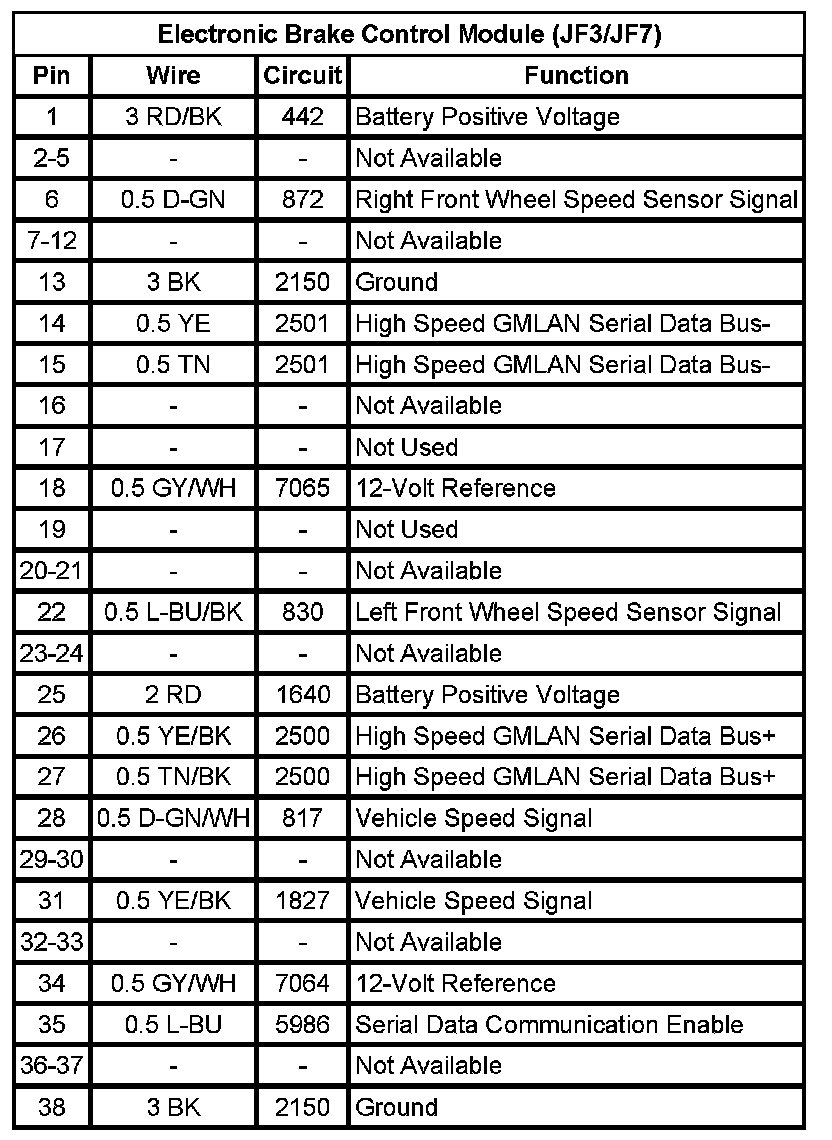

Electronic Brake Control Module (JF3/JF7)

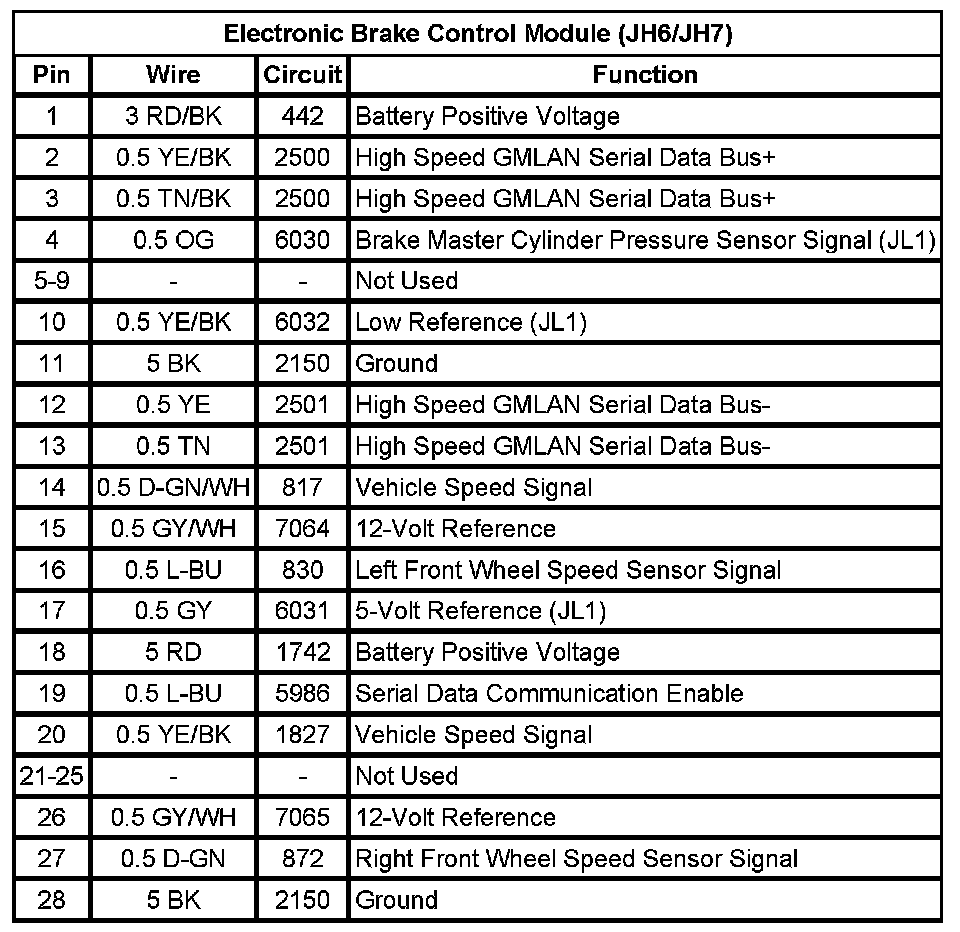

Electronic Brake Control Module (JH6/JH7)

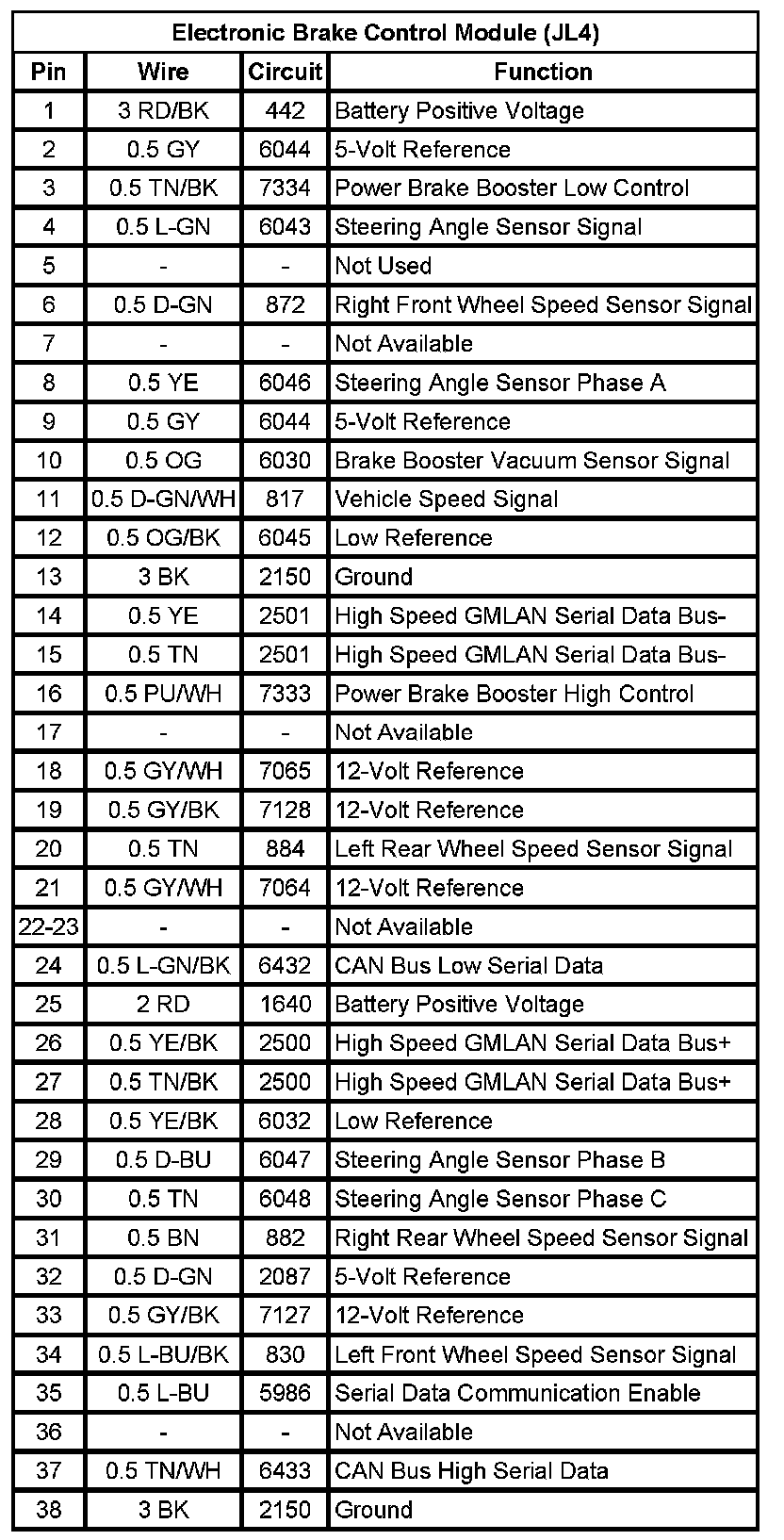

Electronic Brake Control Module (JL4)
