Underhood Fuse Block
Electrical Center Identification Views

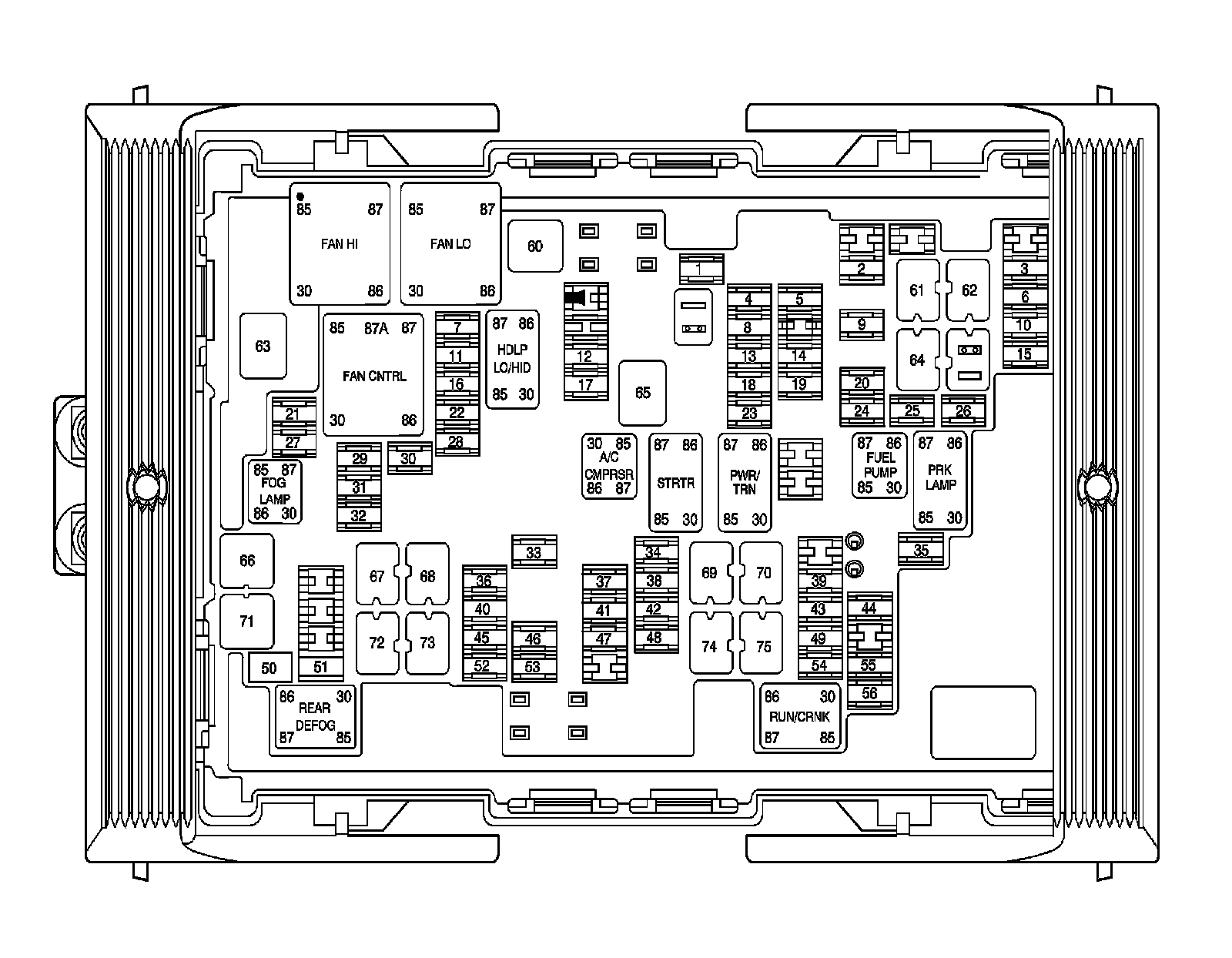

Fuse Block - Underhood, Top View

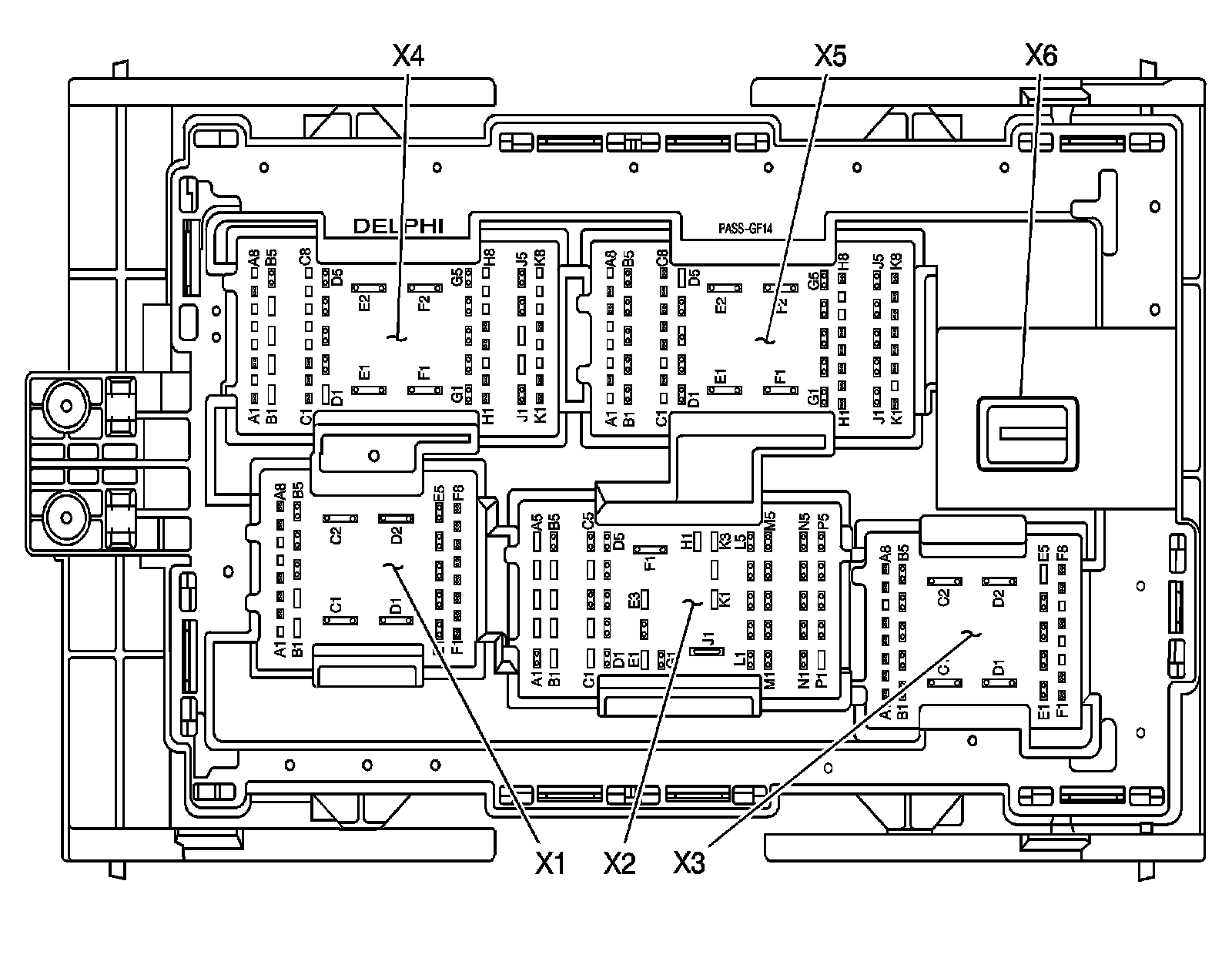

Fuse Block - Underhood, Bottom View

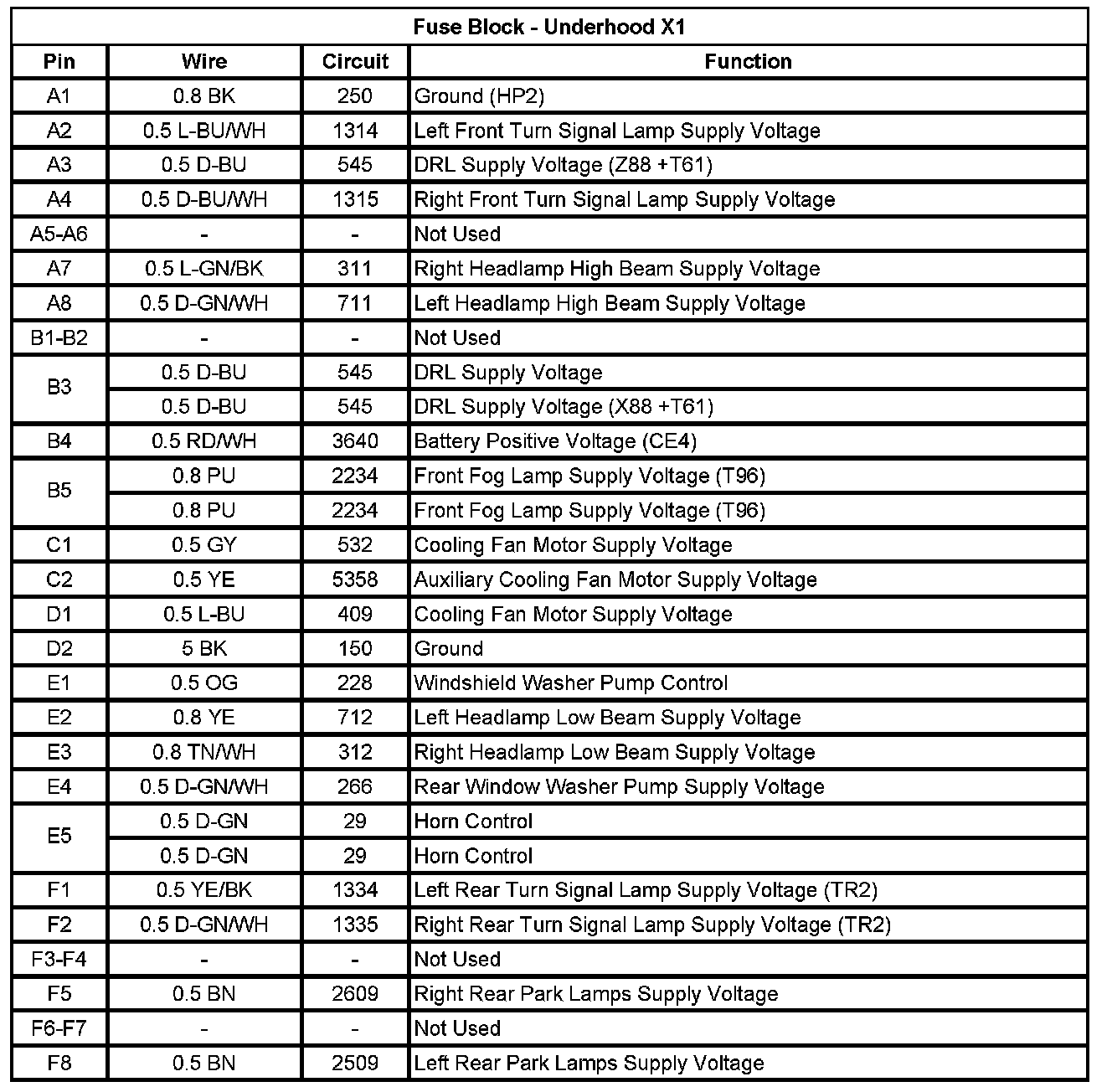

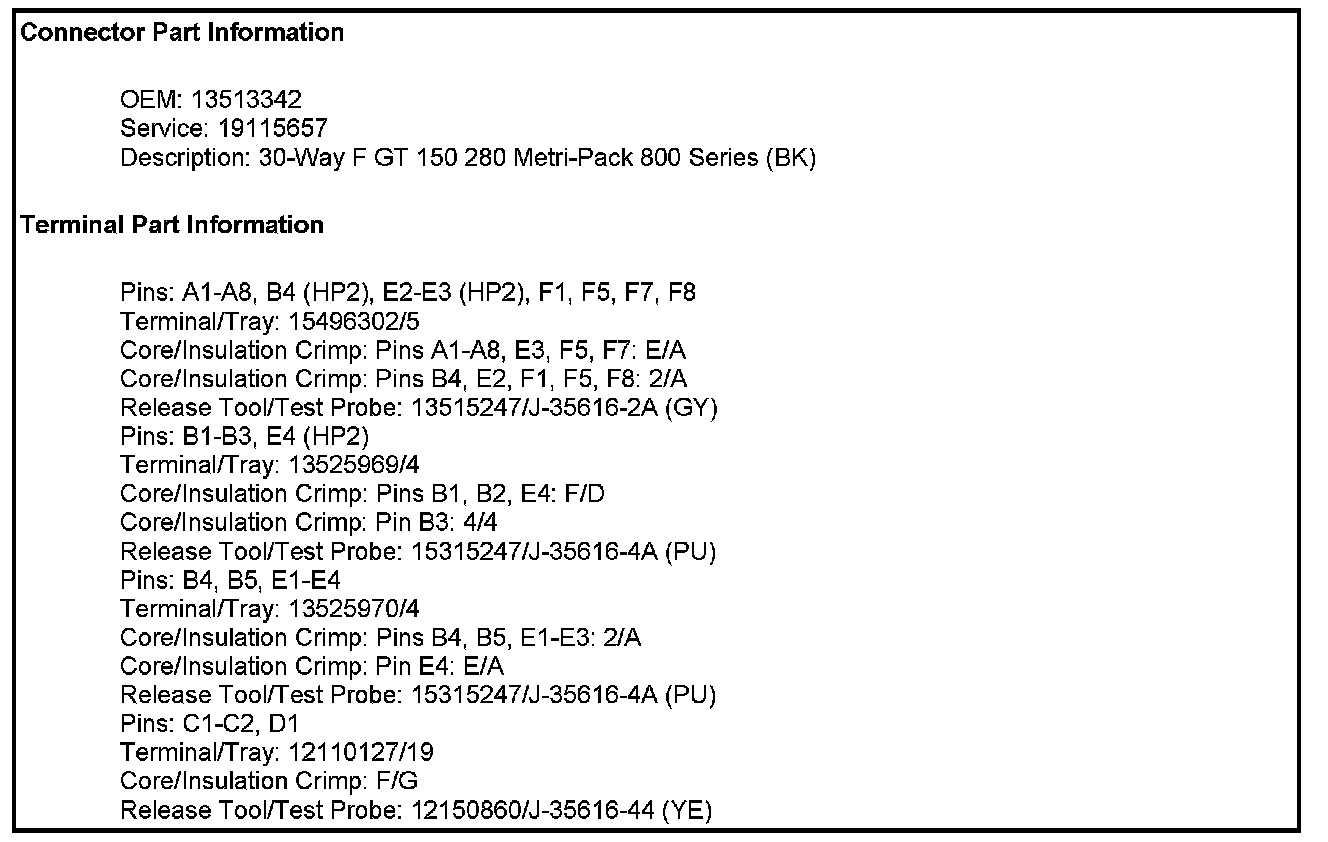

Fuse Block - Underhood X1

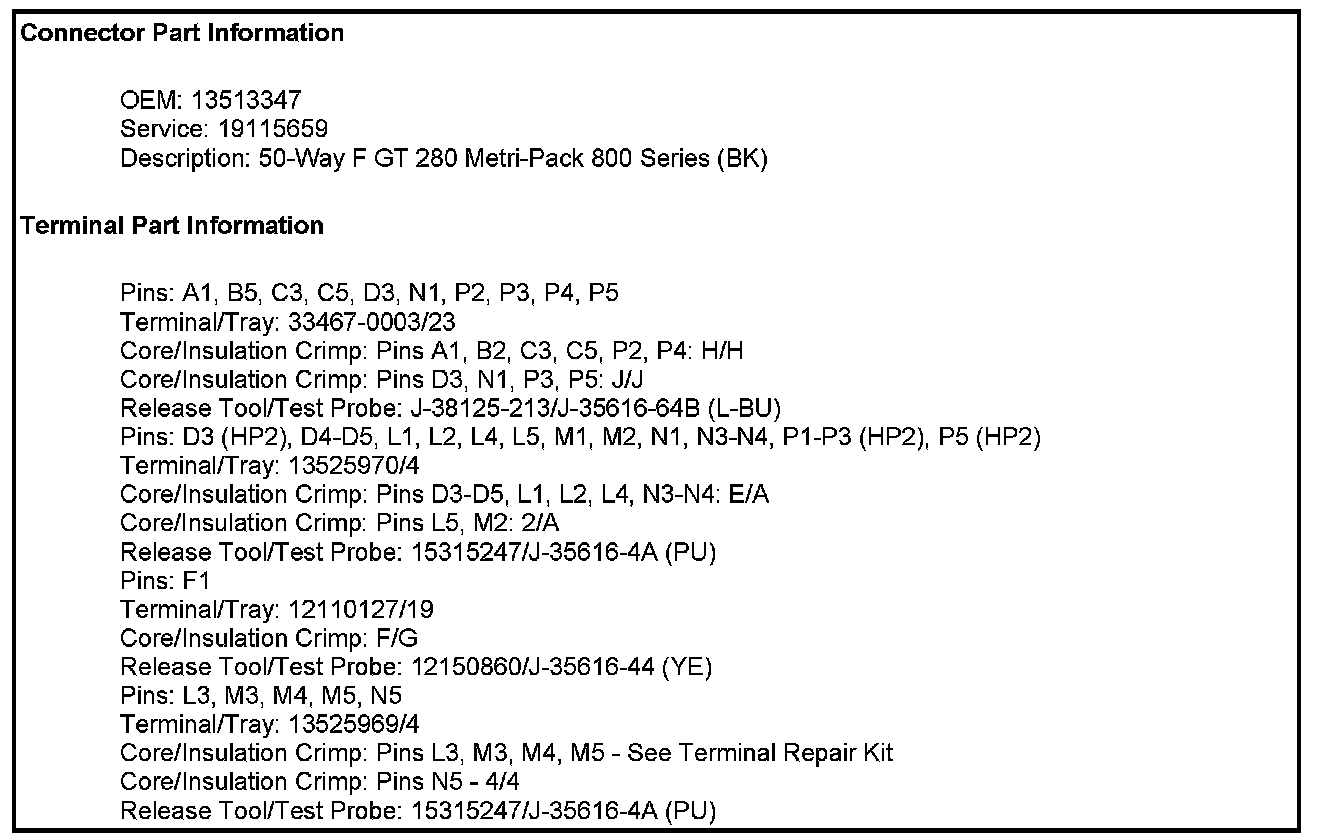

Fuse Block - Underhood X2

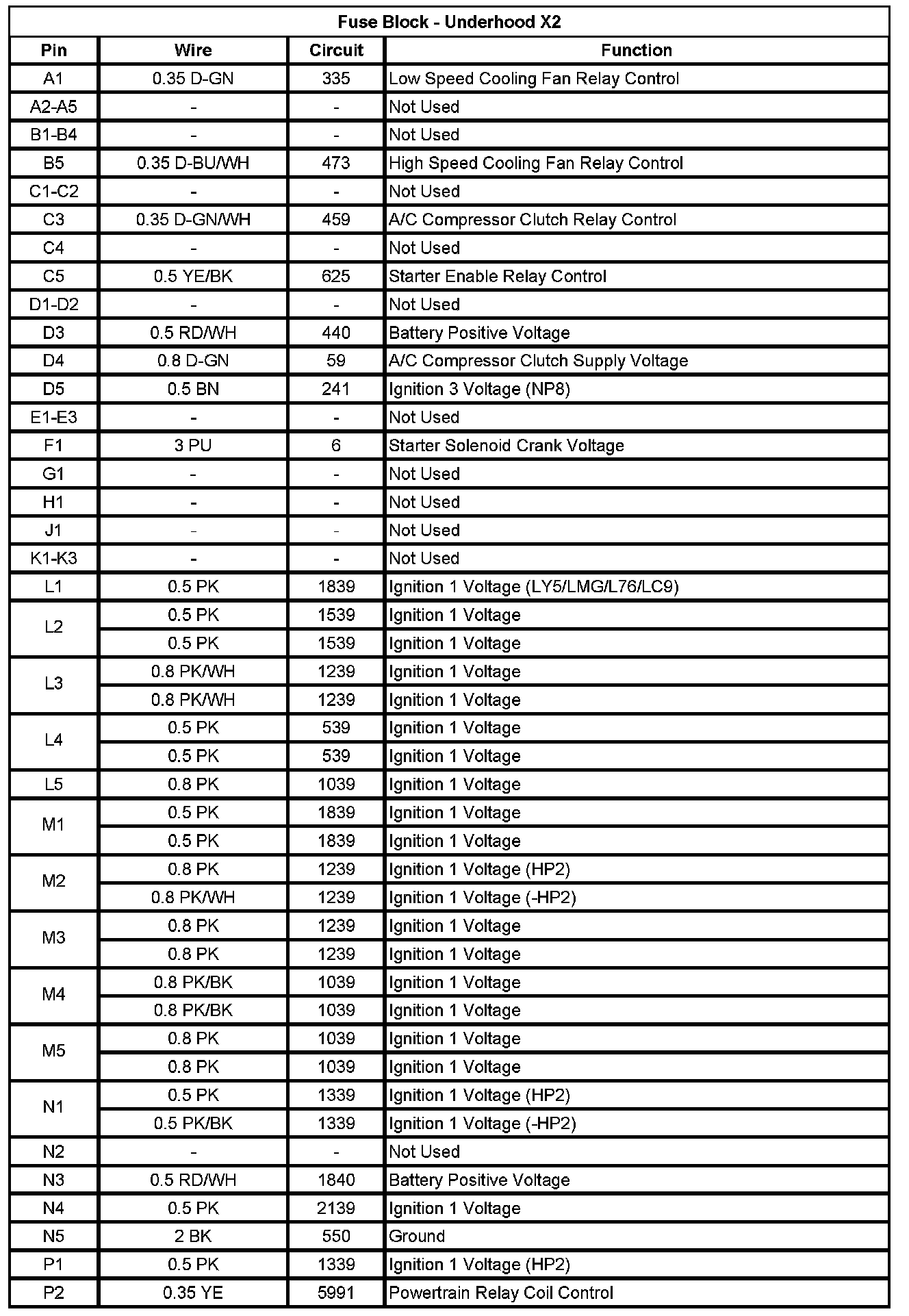

Fuse Block - Underhood X2 (Pin A1 To P2):
Fuse Block - Underhood X2 (Pin P3 To P5):

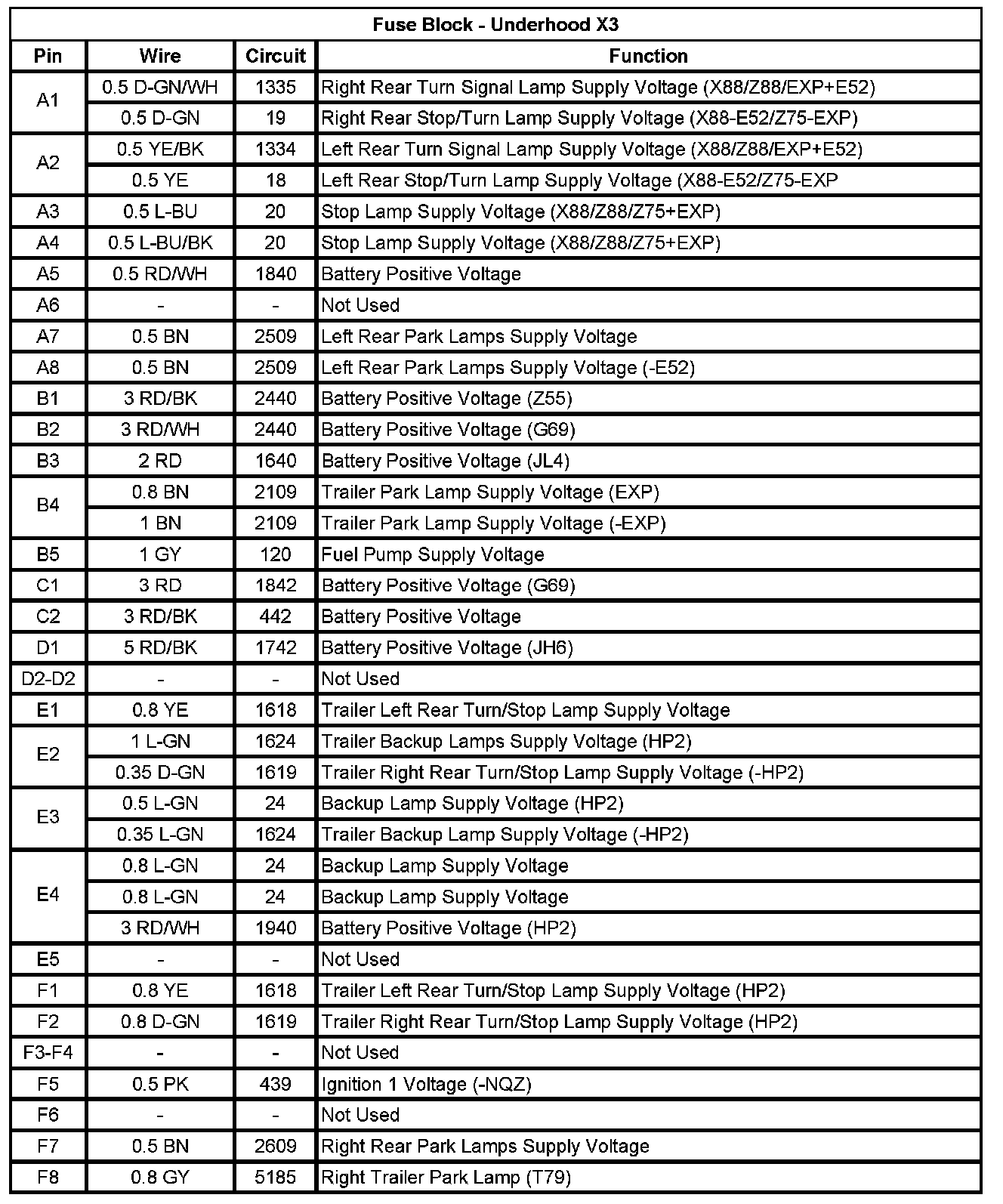

Fuse Block - Underhood X3

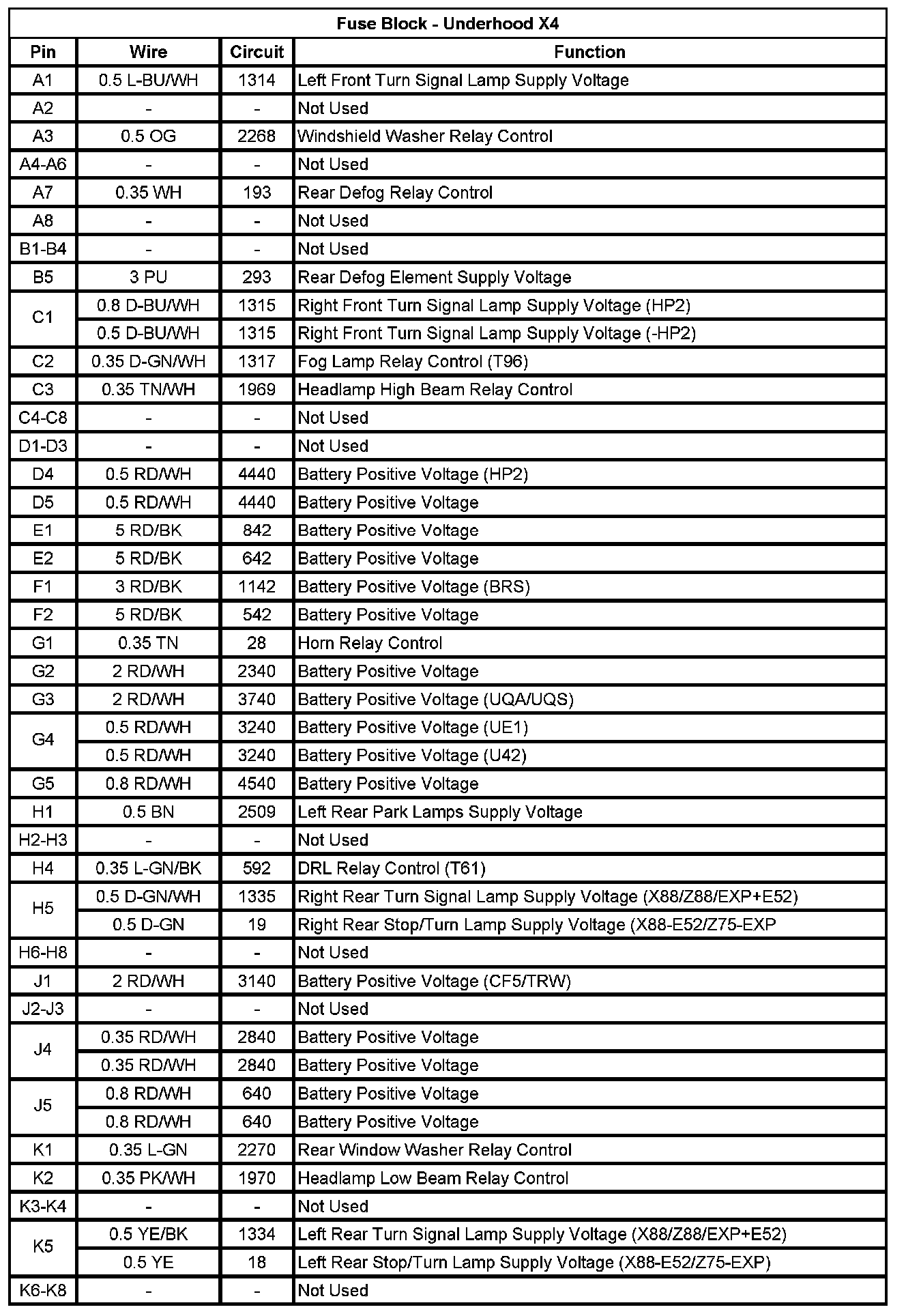

Fuse Block - Underhood X4

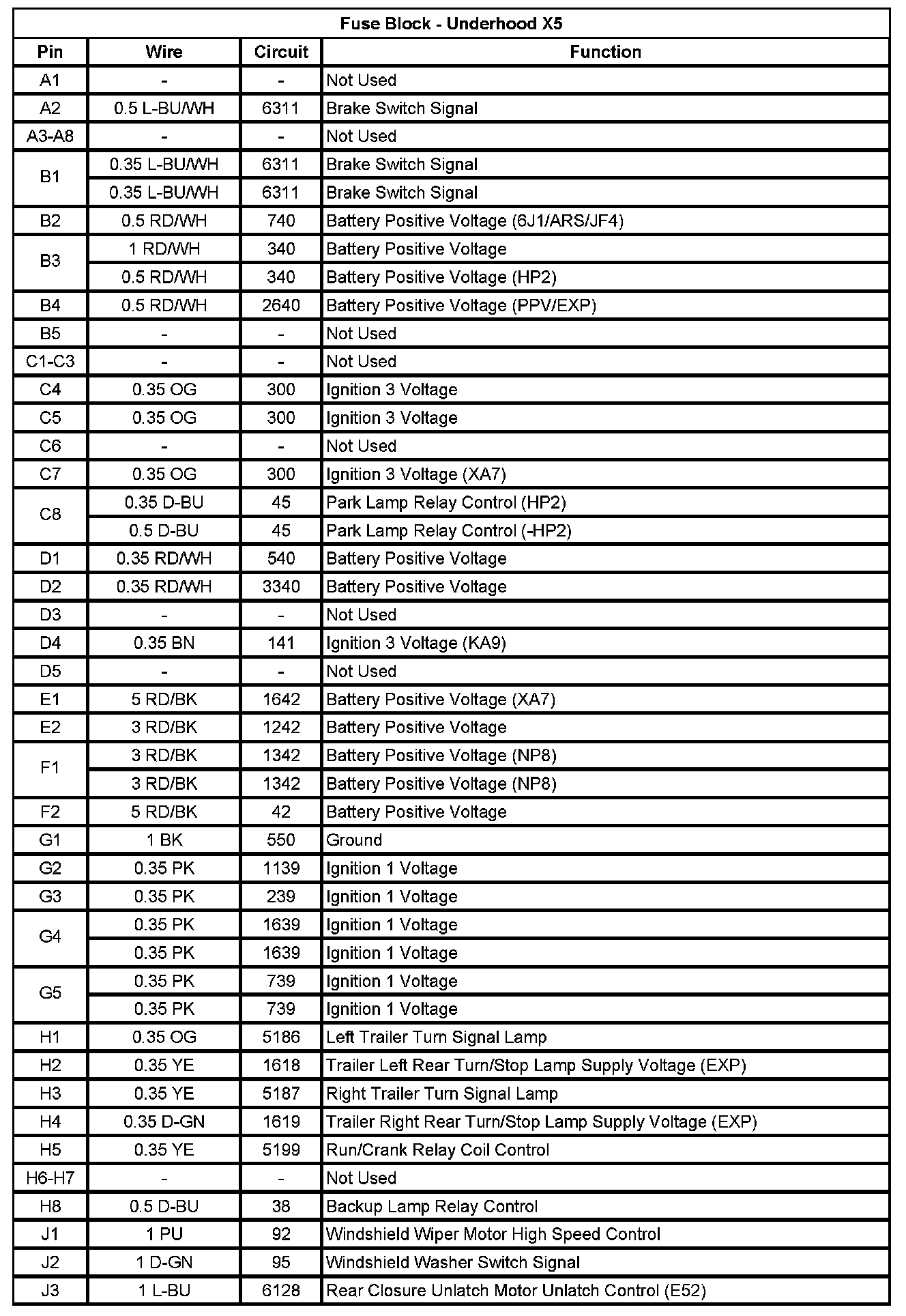

Fuse Block - Underhood X5
Fuse Block - Underhood X5 (Pin A1 To J3):
Fuse Block - Underhood X5 (Pin J4 To K8):
