Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Splice Locations
Master Electrical Component List

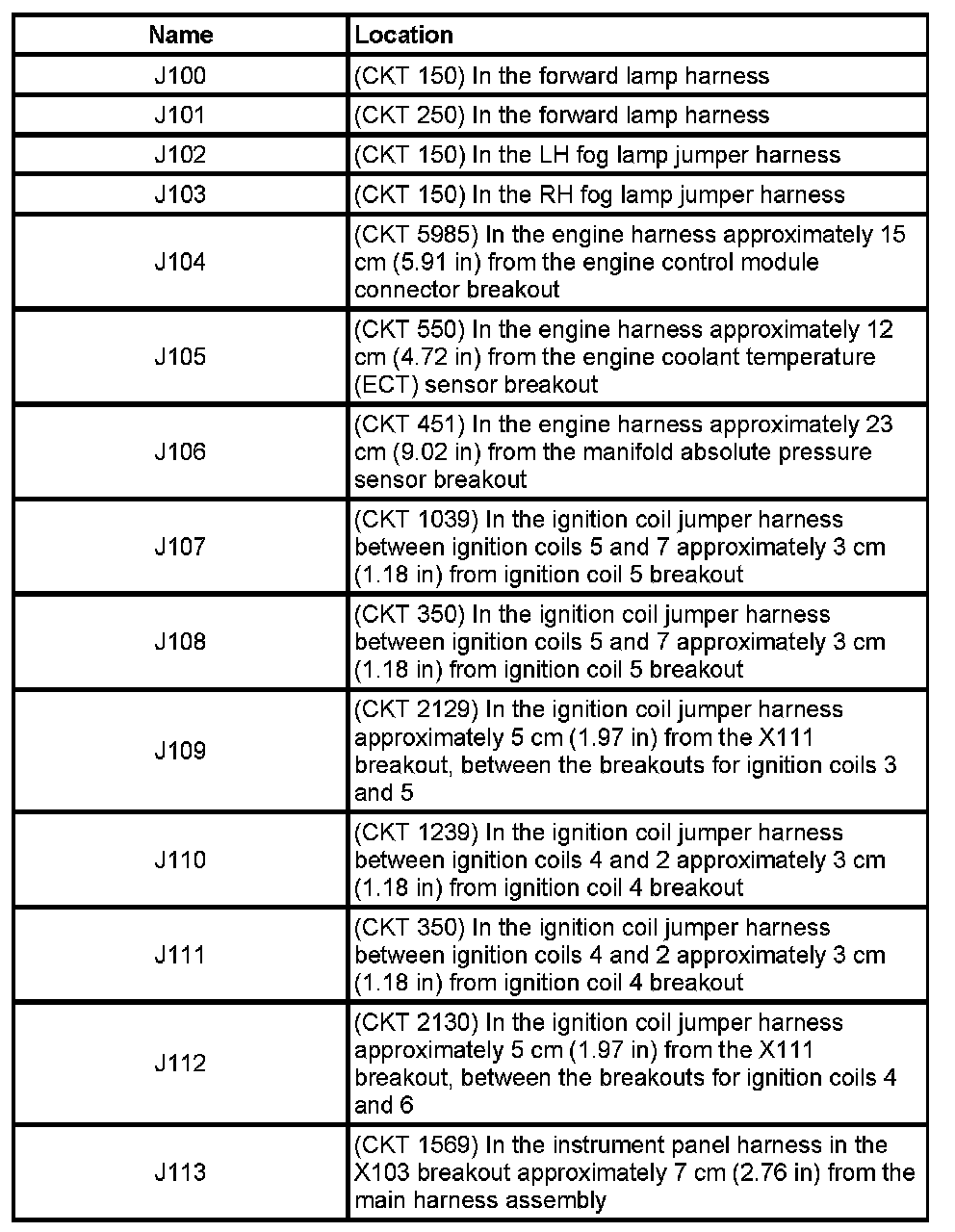

J100 - J113:

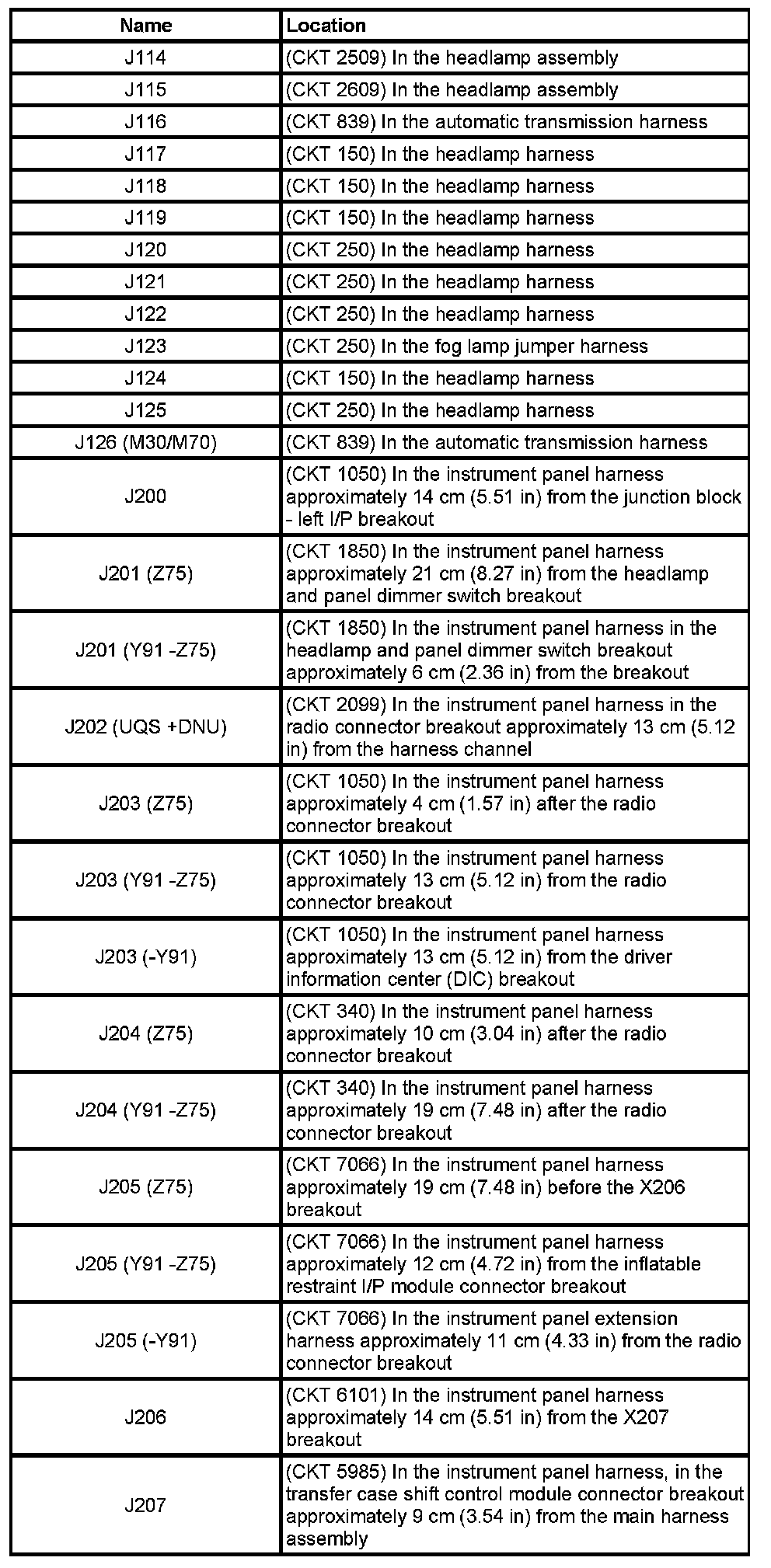

J114 - J207:

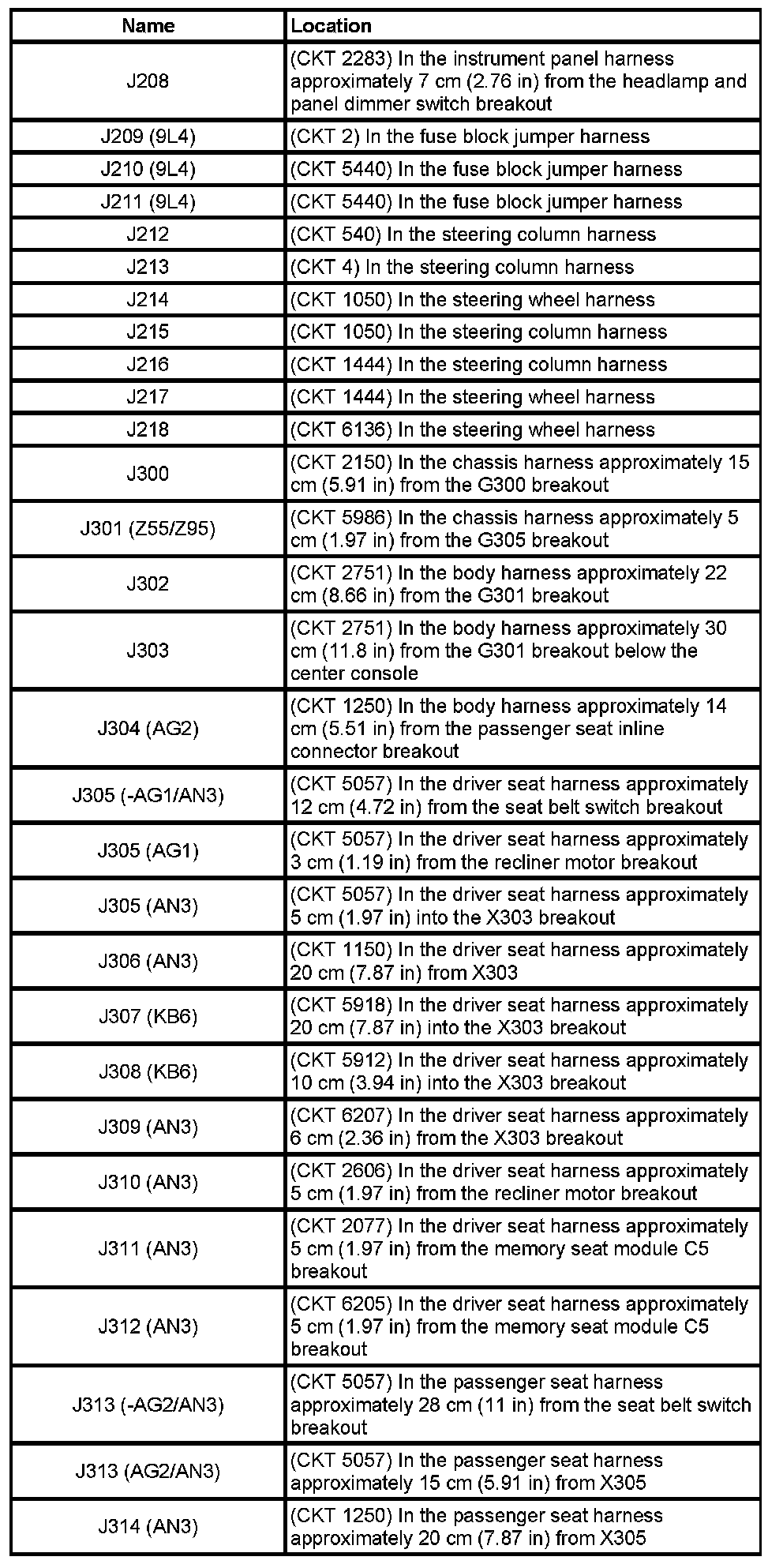

J208 - J314:

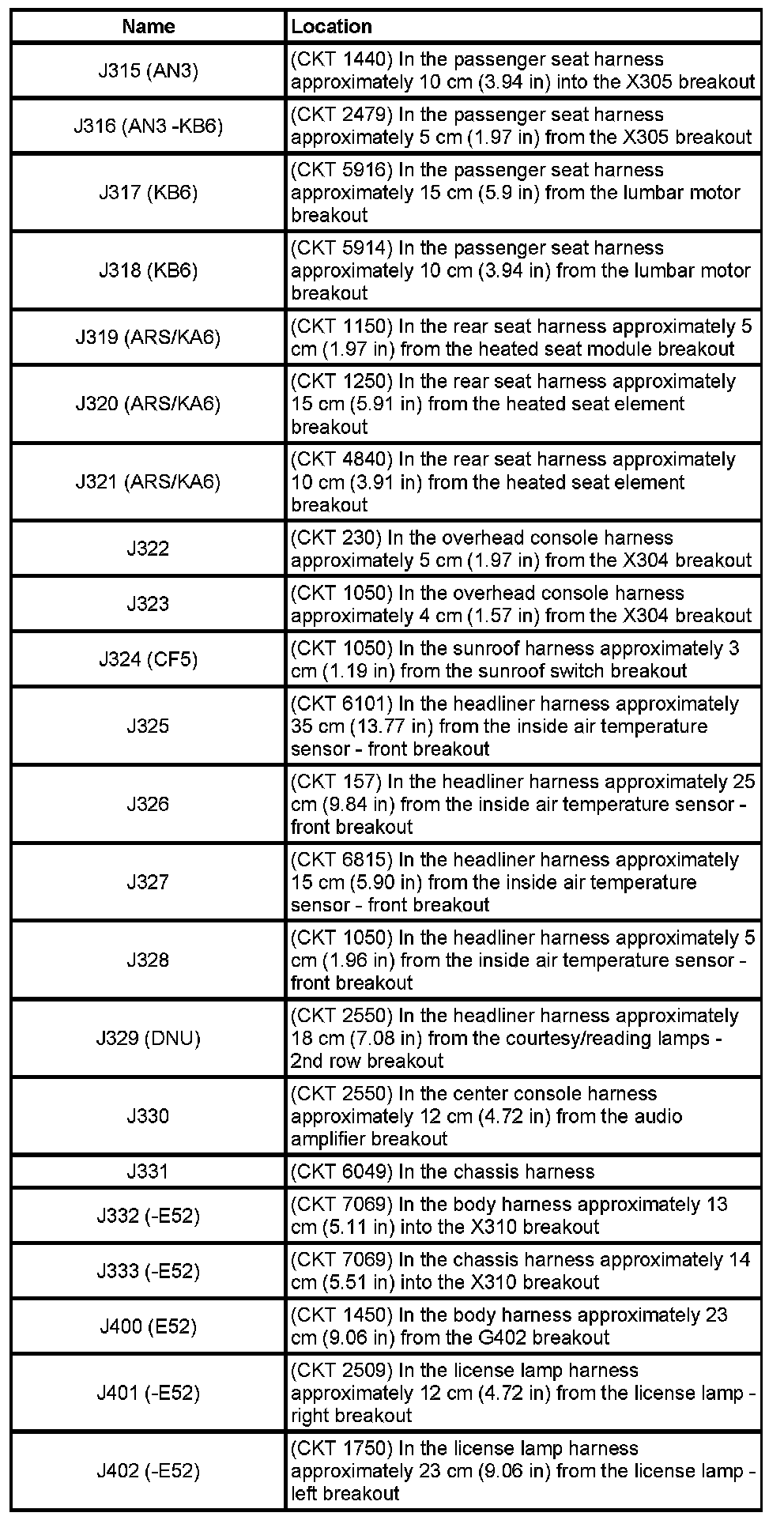

J315 - J402:

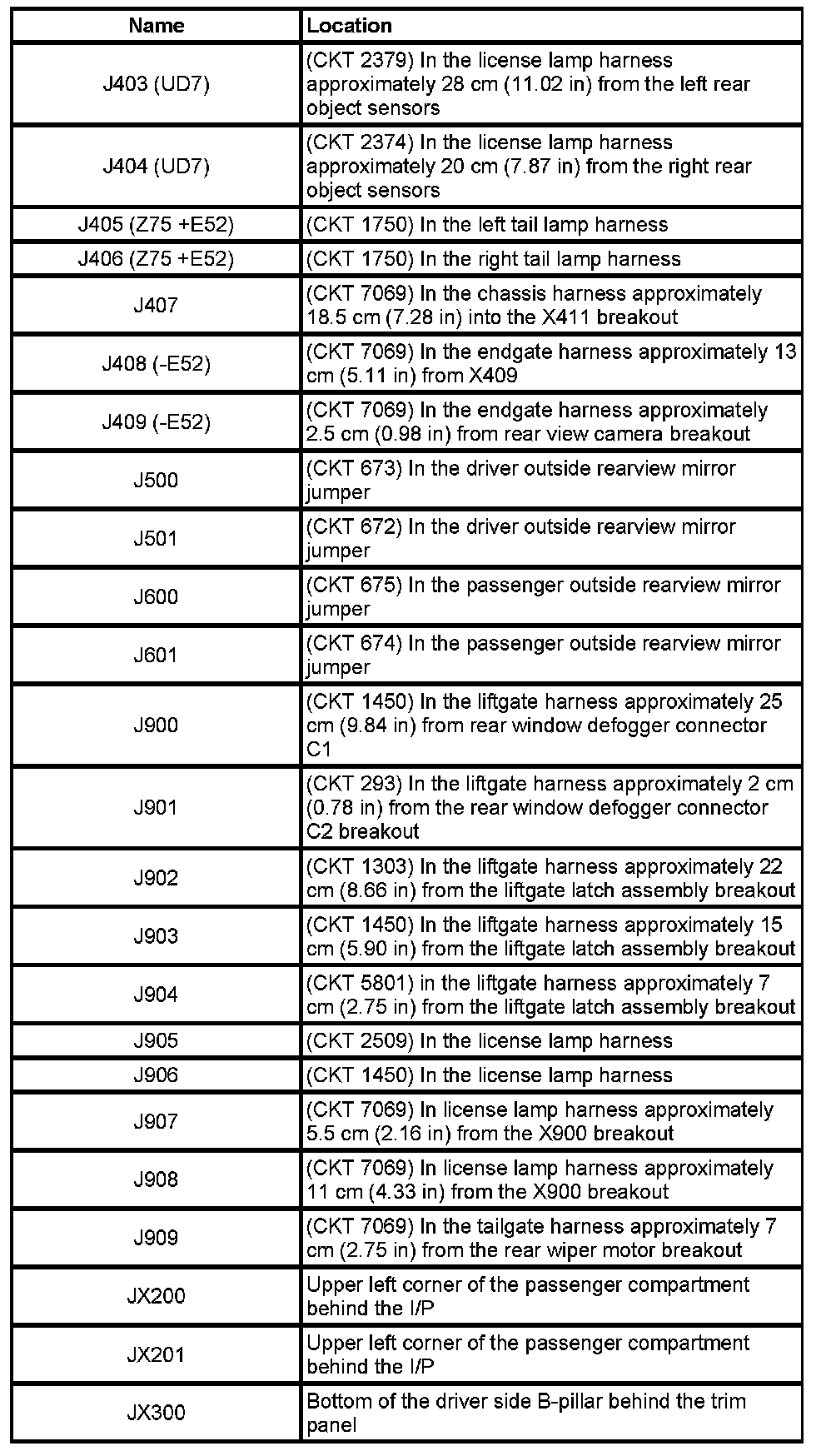

J403 - Jx300:
